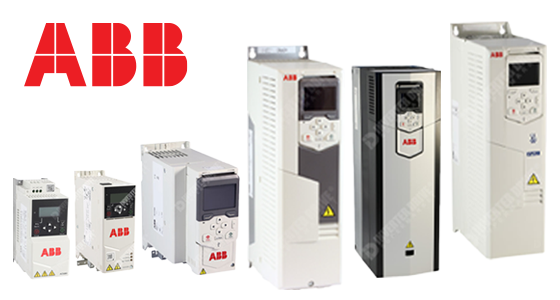

ABB Variable Speed Drives (VSD) Product Ranges

An overview of the ABB low voltage Variable Speed Drive products available from inverterdrive.com. This page is intended to help with product selection across the ABB range.

Introduction

ABB is a market leader in motor control and energy-efficient automation, with a strong presence across industrial, commercial and OEM sectors. Its drives are widely used to improve performance, reduce energy consumption and enhance system reliability.

The low-voltage portfolio is both extensive and versatile, ranging from compact micro drives for simple machinery to general-purpose and advanced industrial drives for demanding applications. ABB also provides solutions tailored to sectors such as HVAC, water and wastewater, food and beverage, and material handling.

Designed for flexibility and easy integration, ABB’s low-voltage drives support a wide range of communication protocols and digital features, enabling seamless connectivity within modern automated systems.

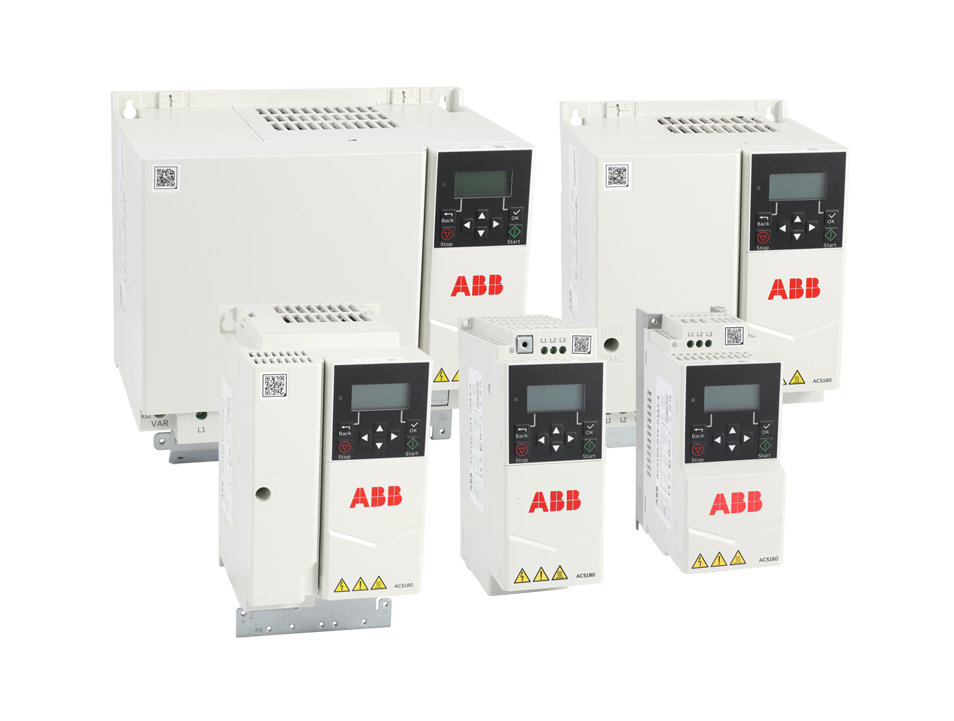

ACS180

General Purpose entry-level VSD. Full details about the ACS180 VSD product series can be found on our ACS180 VSD Product Range Overview Page

Dual Rated. Constant Torque (150% Overload) and Variable Torque (110% Overload) rating given to each unit
Single Phase 230Vac (nominal) 0.25kW to 2.2kW (Constant Torque)
Three Phase 400Vac (nominal) 0.37kW to 22kW (Constant Torque)
IP20 single unit suitable for panel mounting
V/F (Scalar) and Sensorless Vector Motor Control
Dynamic Braking: Included on Frames R2 and above
Fixed LCD Keypad. External Keypads available for panel mounting if required
Suitable Keypads: ACS-AP-S, ACS-AP-I, ACS-AP-W (DMP-02 also required)
Modbus RTU (RJ45) Included
Built-in EMC Filters. Earth connection can be removed if required
Can be programmed using the Keypad or PC using Drive Composer Software (free)
Dual Channel STO Functionality
No Option Slot
Macros Included giving preprogrammed I/O configuration for the most common applications

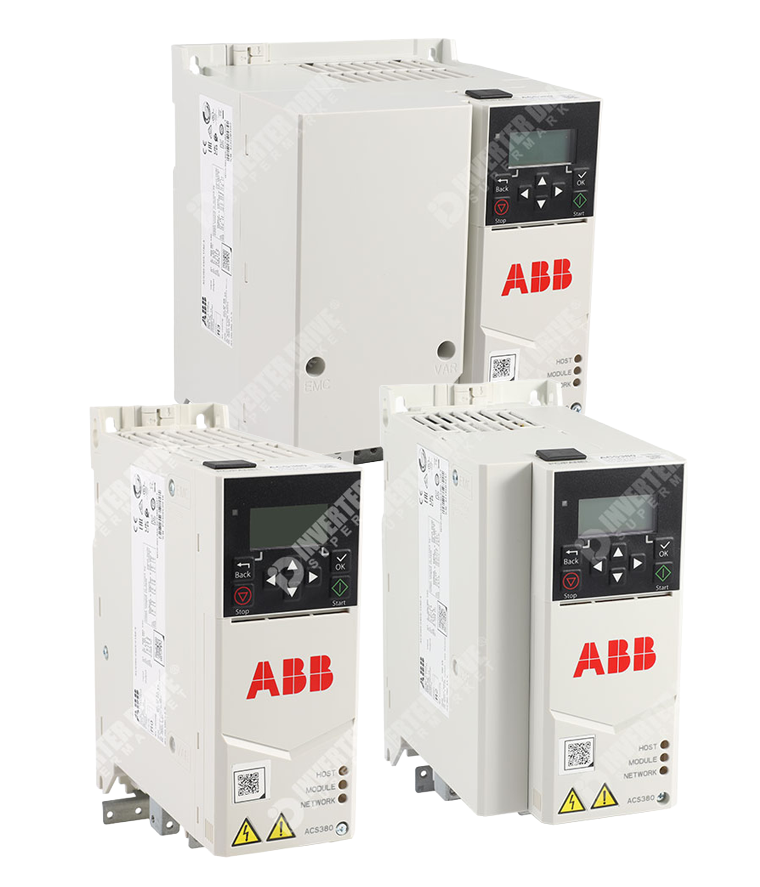

ACS380

The ACS380 drive is available in two variants: ACS380-N and ACS380-S. The ACS380-N is supplied without a control module. It includes a limited amount of onboard I/O and allows for the addition of an optional control module, giving you flexibility to expand functionality as needed. The ACS380-S comes with a control module pre-installed, providing extended I/O and ready-to-use functionality out of the box. Due to this, it does not support additional option modules.

Both versions share the same base unit—simply choose between a flexible, expandable option (ACS380-N) or a complete, ready-configured solution (ACS380-S).

Dual Rated. Constant Torque (150% Overload) and Variable Torque (110% Overload) rating given to each unit
Single Phase 230Vac (nominal) 0.25kW to 2.2kW (Constant Torque), 0.37kW to 3kW (Variable Torque)
Three Phase 400Vac (nominal) 0.37kW to 22kW (Constant Torque / Variable Torque)
IP20 single unit suitable for panel mounting
V/F (Scalar) and Sensorless Vector Motor Control
Dynamic Braking is Included on all units
Built-in EMC Filters. Earth connection can be removed if required
Fixed LCD Keypad. External Keypads available for panel mounting if required
Suitable External Keypads: ACS-AP-S, ACS-AP-I, ACS-AP-W (DMP-02 also required)
ACS380-S Only
- Standard I/O
- No Option Slot
ACS380-N Only
- Limited I/O
- Option Slot
Can be programmed using the Keypad or PC using Drive Composer Software (free)
Dual Channel STO Functionality: SIL3/PLe
Macros Included giving preprogrammed I/O configuration for the most common applications

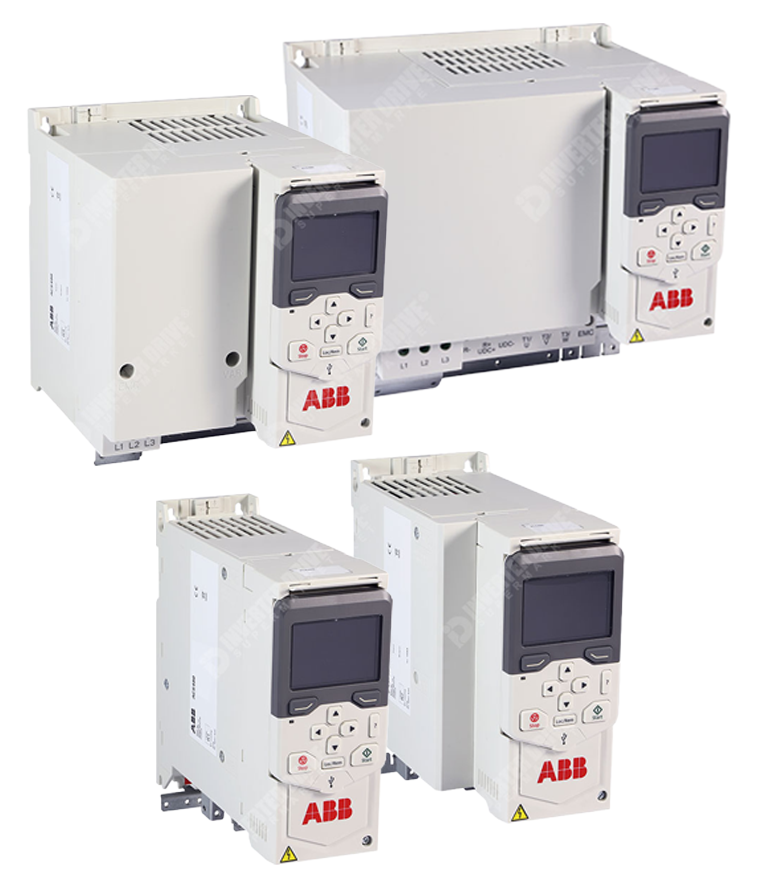

ACS480 and ACH480

The 480 series VSD is available in two variants: ACS480 and ACH480. The ACS480 is designed specifically for industry and is dual rated. The ACH480 is designed specifically for the HVACR industry with only a 110% overload.

Both versions share the same base unit technology but are rated differently so must be viewed as different products with different ratings although there are many similarities.

ACS480 is Dual Rated. Constant Torque (150% Overload) and Variable Torque (110% Overload) rating is given to each unit
ACH480 is Rated for Variable Torque Loads only (110% Overload)
Single Phase 230Vac (nominal) 0.25kW to 2.2kW (Constant Torque), 0.37kW to 3kW (Variable Torque)
Three Phase 400Vac (nominal) 0.37kW to 22kW (Constant Torque and Variable Torque) - other voltages available
IP20 single unit suitable for panel mounting
V/F (Scalar) and Sensorless Vector Motor Control
Dynamic Braking is included on all units
Built-in EMC Filters. Earth connection can be removed if required
Supplied with Standard I/O, no Option Slot available Remove Standard I/O module if Option module is required
ACS480 Only
- RS485 - Modbus RTU included with Standard I/O
- Removable Keypad (Control Panel). Supplied with ACS-AP-S
ACH480 Only
- RS485 - Modbus RTU / BACnet included with Standard I/O
- Removable Keypad (Control Panel). Supplied with ACH-AP-H
Can be programmed using the Keypad or PC using Drive Composer Software (free)
Dual Channel STO Functionality
Macros Included giving preprogrammed I/O configuration for the most common applications

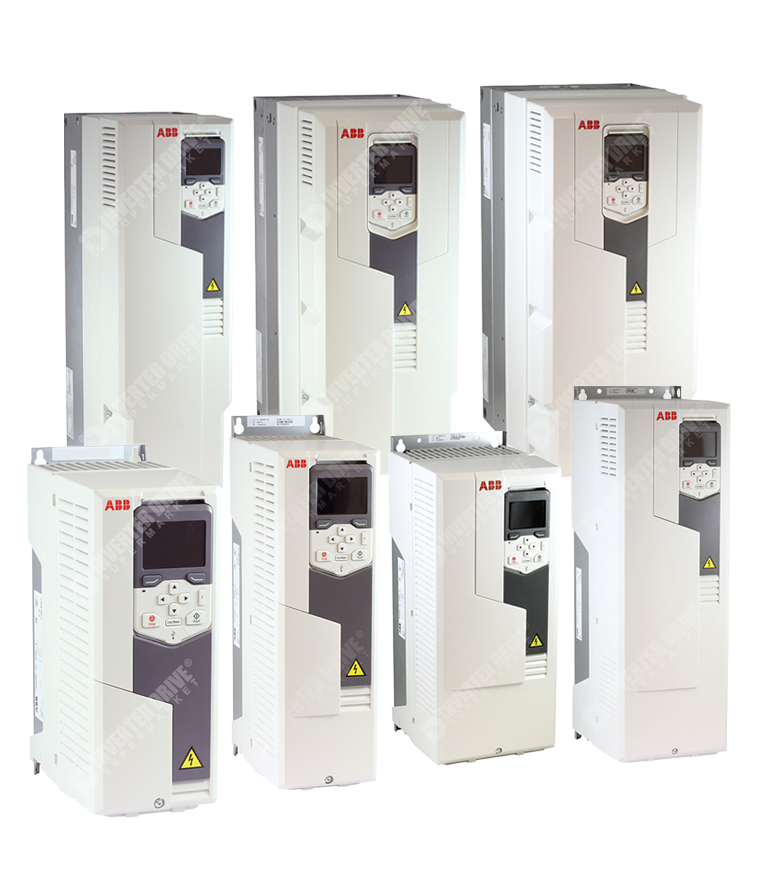

ACS580 and ACH580

The ACS580 and ACH580 cover a wide range of power ratings as a single module. The 580 series VSD is available in two variants: ACS580 and ACH580. The ACS580 is designed specifically for industry and is dual rated. The ACH580 is designed specifically for the HVACR industry with only a 110% Overload.

Both versions share the same base unit technology but are rated differently so must be viewed as different products with different ratings although there are many similarities.

ACS580 is Dual Rated. Constant Torque (150% Overload) and Variable Torque (110% Overload) rating is given to each unit
ACH580 is Rated for Variable Torque Loads only (110% Overload)
Three Phase 400Vac (nominal) - other voltages available.
0.75kW to 250kW (Dual Rated - ACS580) - Single Unit. Higher powered modular variants available
0.75kW to 250kW (Variable Torque - ACH580) - Single Unit. Higher powered modular variants available
Standard Module is IP21, alternative IP55 is also available
V/F (Scalar) and Sensorless Vector Motor Control
Dynamic Braking included on frame sizes R1 to R3 (18.5kW/22kW)
Built-in EMC Filters. Earth connection can be removed if required
Removable LCD Keypad. Can be panel mounted with additional mounting kit
ACS580 Only
- Macros suitable for general industrial use
- Removable Keypad (Control Panel) Supplied with ACS-AP-S
ACH580 Only
- Macros suitable for HVACR applications
- Removable Keypad (Control Panel) Supplied with ACH-AP-S
2 x Option Slots. Slot 1 for Communications Module, Slot 2 for I/O Extension Module
Can be programmed using the Keypad or PC using Drive Composer Software (free)
Dual Channel STO Functionality

ACS880

The ACS880 is a sophisticated VSD designed for bespoke projects and advanced industrial applications, typically where the user is already familiar with commissioning and setup of the product.

Power Ratings Comparison Table - 400V (Frame R0 to R9)

Frame sizes R0 to R9 are a range reference, not a universal physical size. For example, an ACS180 frame R3 is not the same physical size as an ACS380 frame R3. However, ACS and ACH products within the same family generally share the same frame dimensions.

kW Rating is based on a standard IE3 4 pole AC Induction motor at 400Vac

	R0	R1	R2	R3	R4	R5	R6	R7	R8	R9
ACS180 (Constant Torque)	0.37kW - 0.75kW	1.1kW - 3kW	4kW - 5.5kW	7.5kW - 11kW	15kW - 22kW	-	-	-	-	-
ACS180 (Variable Torque)	0.55kW - 1.1kW	1.5kW - 4kW	5.5kW - 7.5kW	11kW - 15kW	18.5kW - 22kW	-	-	-	-	-
ACS380 (Constant Torque)	0.37kW	0.55kW - 3kW	4kW	5.5kW - 7.5kW	11kW - 22kW	-	-	-	-	-
ACS380 (Variable Torque)	0.55kW	0.75kW - 4kW	5.5kW	7.5kW - 11kW	15kW - 22kW	-	-	-	-	-
ACS480 (Constant Torque)	0.37kW	0.55kW - 3kW	4kW	5.5kW - 7.5kW	11kW - 22kW	-	-	-	-	-
ACS/H480 (Variable Torque)	0.55kW	0.75kW - 4kW	5.5kW	7.5kW - 11kW	15kW - 22kW	-	-	-	-	-
ACS580 (Constant Torque)	-	0.55kW - 5.5kW	7.5kW	11kW - 18.5kW	22kW - 30kW	37kW - 45kW	55kW	75kW - 90kW	110kW - 132kW	160kW - 200kW
ACS/H580 (Variable Torque)	-	0.75kW - 7.5kW	11kW	15kW - 22kW	30kW - 37kW	45kW - 55kW	75kW	90kW - 110kW	132kW - 160kW	200kW - 250kW
