Bosch Rexroth EFC5610 AC Inverter Drive Range - 0.37kW to 160kW

A technical overview of the complete Bosch Rexroth EFC5610 VFD range. Individual power ratings and supply variants are provided, along with key features, useful downloads, and links to individual listings.

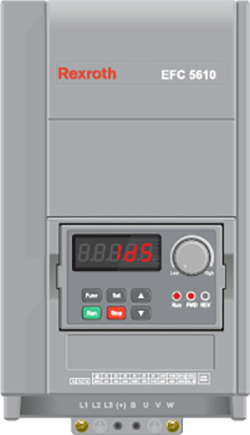

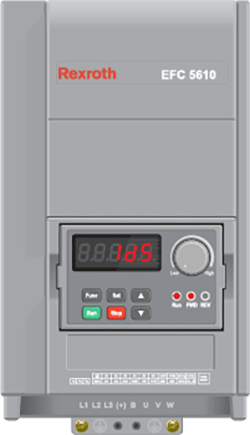

EFC5610 Frame D

Bosch Rexroth EFC5610 Overview

  • kW Ratings: 0.37kW to 160kW
  • Mains Supply: 230V single-phase or 400V three-phase versions available
  • EMC Filter: Fitted with EMC filter for UKCA and CE compliance.
  • Control Type: V/F Control or Sensorless Vector motor control for a Standard AC Induction Motor

The Bosch Rexroth EFC5610 is a versatile, general-purpose AC inverter drive designed for reliable motor speed control across a wide range of industrial applications. Covering power ratings from 0.37kW up to 160kW, the EFC5610 is available in 230V single-phase and 400V three-phase variants, making it a flexible solution for both small machines and larger industrial systems.

Engineered for ease of use, the EFC5610 features an intuitive parameter structure and a removable keypad that can be door-mounted for convenient access during operation and commissioning. Integrated EMC filtering supports UKCA and CE compliance, with the option to adapt the configuration to suit specific installation requirements. For motor control, the drive offers V/F control and sensorless vector control for standard AC induction motors, delivering smooth, stable performance in everyday applications.

Higher power models are dual-rated for heavy duty or normal duty operation, allowing one drive to support multiple load profiles while helping to reduce panel size and overall system cost. Robustly built and highly adaptable, the Bosch Rexroth EFC5610 is an ideal choice for conveyors, pumps, fans and general automation where dependable, cost-effective motor control is required.

At inverterdrive.com we stock a comprehensive range of EFC5610 products up to 160kW available for next day delivery in the UK. View Live Stock availability

EFC5610 Ratings: 0.37kW to 30kW

The EFC5610 is available in 2 different Voltage ratings, 230V Single phase mains supply (220-240Vac) or 400V Three phase mains supply (380-480Vac). You must select the EFC5610 to match your Voltage supply as well as the Voltage and Current rating of your three-phase motor.
For Ratings above 4kW the EFC5610 is dual-rated. One Unit - two ratings, depending on the overload required to suit your application. For Ratings 4kW and below only 1 rating is available and is suitable for most applications.

Rating Table: 150% Overload, 45°C ambient
230V Single-Phase 0.37kW 0.75kW 1.5kW - 2.2kW - - - - - - -
400V Three-Phase 0.37kW 0.75kW 1.5kW 2.2kW 3kW 4kW 5.5kW 7.5kW 11kW 15kW     18.5kW  22kW
Frame Size B B C C D D E E F F    G G
Rating Table: 120% Overload, 45°C ambient
400V Three-Phase 7.5kW 11kW 15kW 18.5kW 22kW 30kW
Frame Size E E F F G G

EFC5610 Dimensions: 0.37kW to 30kW

The EFC5610 is a compact single unit suitable for wall mounting. Dimensions include an Internal DC Choke fitted in all units 30kW and above.

Bosch Rexroth EFC5610 inverter drive, size B. Dimensional drawing showing overall width (W), height (H), and depth (D)Bosch Rexroth EFC5610 inverter drive, size C. Dimensional drawing showing overall width (W), height (H), and depth (D)Bosch Rexroth EFC5610 inverter drive, size D. Dimensional drawing showing overall width (W), height (H), and depth (D) Bosch Rexroth EFC5610 inverter drive, size E. Dimensional drawing showing overall width (W), height (H), and depth (D)

Bosch Rexroth EFC5610 inverter drive, size F. Dimensional drawing showing overall width (W), height (H), and depth (D) Bosch Rexroth EFC5610 inverter drive, size G. Dimensional drawing showing overall width (W), height (H), and depth (D)

EFC5610 Dimension Table Frame Size B to G
Frame Size B C D E F G
H (mm) 166 206 231 243 283 313
W (mm) 95 95 120 130 150 165
D (mm) 167 170 175 233 233 241

What's Included: 0.37kW to 30kW

Overview of hardware features up to 30kW

EFC5610 Ratings: 30kW to 160kW

Rating Table: 150% Overload, 45°C ambient
400V Three-Phase 30kW 37kW 45kW 55kW 75kW 90kW 110kW 132kW
Frame Size H H I I J J K K
Rating Table: 120% Overload, 45°C ambient
400V Three-Phase 37kW 45kW 55kW 75kW 90kW 110kW 132kW 160kW
Frame Size H H I I J J K K

EFC5610 Dimensions: 30kW to 160kW

Bosch Rexroth EFC5610 inverter drive, size H. Dimensional drawing showing overall width (W), height (H), and depth (D)Bosch Rexroth EFC5610 inverter drive, size I. Dimensional drawing showing overall width (W), height (H), and depth (D)  Bosch Rexroth EFC5610 inverter drive, size J. Dimensional drawing showing overall width (W), height (H), and depth (D)Bosch Rexroth EFC5610 inverter drive, size K. Dimensional drawing showing overall width (W), height (H), and depth (D)

EFC5610 Dimension Table Frame Size H to K
Frame Size H I J K
H (mm) 510 585 760 923
W (mm) 250 265 325 342
D (mm) 272 325 342 350

What's Included: 30kW to 160kW

Overview of hardware features above 30kW

EFC5610 Keypad Functionality

The EFC5610 has a removable Keypad which can be panel mounted if required. A keypad mounting kit is available along with connecting leads.

Image of EFC5610 Keypad Overview of EFC5610 Keypad

EFC5610 Control Terminals and Default Wiring

External I/O, pushbuttons or potentiometer can be wired directly into the EFC5610 control terminals for remote control. The Terminals are plug-in making the wiring and installation of the unit quick and easy

Image of EFC5610 Control Terminals Overview of EFC5610 Control Terminal Function

At its default settings the EFC5610 is in local control ie controlled from the Keypad. The configuration below gives a basic example of remote control which can be easily set up using the keypad. For those unfamiliar with the EFC5610 our Easy Start Guide gives clear step by step instructions on how to do this

EFC5610 Installation Guidelines

Frame Sizes B to E can be DIN-rail Mounted. All units are IP20 therefore the EFC5610 must be mounted in a suitable enclosure with adequate ventilation. Any dust must be non-conducting otherwise this will damage the unit.

Up to 4kW the EFC5610 is also available in a 'Cold Plate' format. This variation of the EFC5610 has the same functionality but differs physically as it does not have a heatsink. In this configuration the EFC5610 unit can be totally enclosed which is useful in very harsh environments.

EFC5610 Options and Accessories

All EFC5610 units can be fitted with one Option Card Mounting Module - this module can hold up to 2 option cards. If Dynamic Braking is required at 30kW or above External Braking Units are available.

Icon for Expansion Option Cards Icon for Communication Option Cards Icon for Encoder Feedback Option Card Icon for External Brake UnitIcon for EFC5610 Cable Clamps

EFC5610 Manuals

Bosch Rexroth provide a User Manual for the EFC5610 unit which is also used for the EFC3610 (The EFC3610 is not as well-featured as the EFC5610 with a smaller power rating range).

For Specific basic programming details for the EFC5610 please see our Easy Start Guide

Icon for IDS Easy Start Guide Icon for Rexroth EFC5610 User Manual

EFC5610 Part Numbers

Part Number Format:

Example Product Motor Control Control Power Input Phases Mains Voltage Fieldbus EMC Filter Format Keypad Firmware Factory Option
0.37kW 230V without STO EFC 5 610 0K40 1P 2 M D A 7P NNNNN NNNN
132kW 400V with STO EFC 5 610 132K 3P 4 M D A 7P NNNN L1NN
  AC Inverter V/F & Sensorless Vector Standard kW Rating (150%)

1P = Single-phase

3P = Three-phase

 2 = 230V Nominal

4 = 400V Nominal

 Modbus Inc. C3 Filter Inc. IP20 with Heatsink LED Keypad Standard

NNNN = No STO

L1NN = With STO

230V Single-Phase with STO 230V Single-Phase no STO Item Code Description
R912007268 R912005739 EFC5610-0K40-1P2-MDA-7P Rated at 0.37kW, 2A (150% Overload)
R912007269 R912005740 EFC5610-0K75-1P2-MDA-7P Rated at 0.75kW, 3.4A (150% Overload)
R912007270 R912005741 EFC5610-1K50-1P2-MDA-7P Rated at 1.5kW, 6.1A (150% Overload)
R912007271 R912005742 EFC5610-2K20-1P2-MDA-7P Rated at 2.2kW, 8.4A (150% Overload)
400V Three-Phase with STO 400V Three-Phase no STO Item Code Description
R912007272 R912005743 EFC5610-0K40-3P4-MDA-7P Rated at 0.37kW, 1.3A (150% Overload)
R912007273 R912005744 EFC5610-0K75-3P4-MDA-7P Rated at 0.75kW, 2.3A (150% Overload)
R912007274 R912005745 EFC5610-1K5-3P4-MDA-7P Rated at 1.5kW, 4A (150% Overload)
R912007275 R912005746 EFC5610-2K2-3P4-MDA-7P Rated at 2.2kW, 5.6A (150% Overload)
R912007276 R912005747 EFC5610-3K00-3P4-MDA-7P Rated at 3kW, 7.4A (150% Overload)
R912007277 R912005748 EFC5610-4K00-3P4-MDA-7P Rated at 4kW, 9.7A (150% Overload)
R912007278 R912005099 EFC5610-5K50-3P4-MDA-7P Rated at 5.5kW, 12.7A (150% Overload) and 7.5kW, 16.8A (120% Overload)
R912007279 R912005100 EFC5610-7K50-3P4-MDA-7P Rated at 7.5kW, 16.8A (150% Overload) and 11kW, 24.3A (120% Overload)
R912007280 R912005101 EFC5610-11K0-3P4-MDA-7P Rated at 11kW, 24.3A (150% Overload) and 15kW, 32.4A (120% Overload)
R912007281 R912005102 EFC5610-15K0-3P4-MDA-7P Rated at 15kW, 32.4A (150% Overload) and 18.5kW, 39.2A (120% Overload)
R912007282 R912005749 EFC5610-18K5-3P4-MDA-7P Rated at 18.5kW, 39.2A (150% Overload) and 22kW, 45A (120% Overload)
R912007283 R912005980 EFC5610-22K0-3P4-MDA-7P Rated at 22kW, 45A (150% Overload) and 30kW, 60.8A (120% Overload)
R912005981   EFC5610-30K0-3P4-MDA-7P Rated at 30kW, 89A (150% Overload) and 37kW, 73.7A (120% Overload)
R912005982   EFC5610-37K0-3P4-MDA-7P Rated at 37kW, 73.7A (150% Overload) and 45kW, 89.1A (120% Overload)
R912005983   EFC5610-45K0-3P4-MDA-7P Rated at 45kW, 89A (150% Overload) and 55kW, 108A (120% Overload)
R912005984   EFC5610-55K0-3P4-MDA-7P Rated at 55kW, 108A (150% Overload) and 75kW, 147A (120% Overload)
R912005985   EFC5610-75K0-3P4-MDA-7P Rated at 75kW, 147A (150% Overload) and 90kW, 176A (120% Overload)
R912005986   EFC5610-90K0-3P4-MDA-7P Rated at 90kW, 176A (150% Overload) and 110kW, 212A (120% Overload)
R912007202   EFC5610-110K-3P4-MDA-7P Rated at 110kW, 212A (150% Overload) and 132kW, 253A (120% Overload)
R912007203   EFC5610-132K-3P4-MDA-7P Rated at 132kW, 253A (150% Overload) and 160kW, 303A (120% Overload)



kW Rating Item Code - Cold Plate 230V Single-Phase   Item Code - Cold Plate 400V Three-Phase
0.37kW EFC5610-0K40-1P2-MDB-7P R912007349   EFC5610-0K40-3P4-MDB-7P R912007353
0.75kW EFC5610-0K75-1P2-MDB-7P R912007350   EFC5610-0K75-3P4-MDB-7P R912007354
1.5kW EFC5610-1K50-1P2-MDB-7P R912007351   EFC5610-1K50-3P4-MDB-7P R912007355
2.2kW EFC5610-2K20-1P2-MDB-7P R912007352   EFC5610-2K20-3P4-MDB-7P R912007356
3kW       EFC5610-3K00-3P4-MDB-7P R912007357
4kW       EFC5610-4K00-3P4-MDB-7P R912007358

EFC5610 FAQs

How to Reset the Bosch EFC5610 to Factory Default Values - Click to expand

This is a step-by-step guide on how to reset the Bosch EFC5610 parameters to factory default values

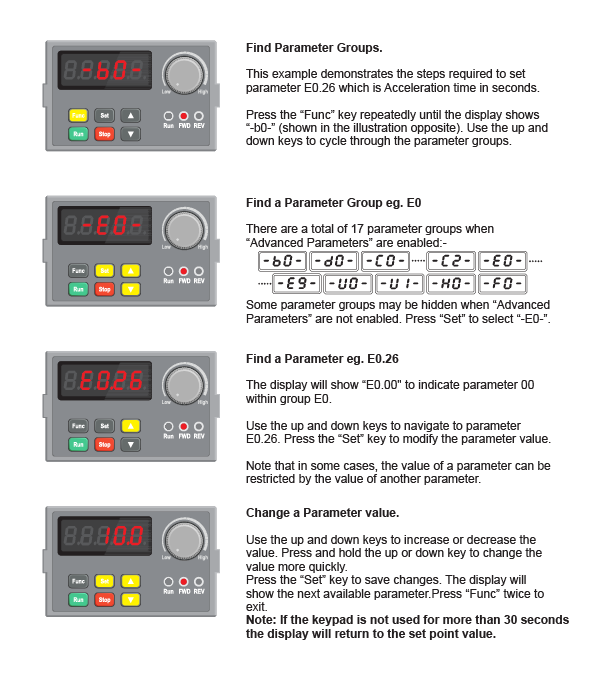

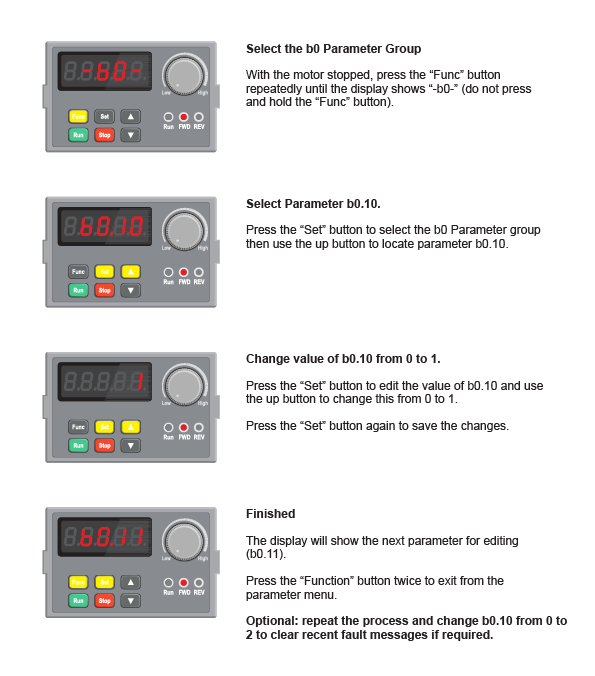

How to reset EFC5610 to factory default values

This is an extract from our Bosch EFC5610 Easy Start Guide which is available to download

How to Change a Parameter in the Bosch EFC5610 - Click to expand

This is a step-by-step guide on how to change and save a parameter using the EFC5610 Keypad

This is an extract from our Bosch EFC5610 Easy Start Guide which is available to download


Prepared by Inverter Drive Supermarket Ltd; Specifications verified against Bosch Rexroth User Manual; Last reviewed March 2026
