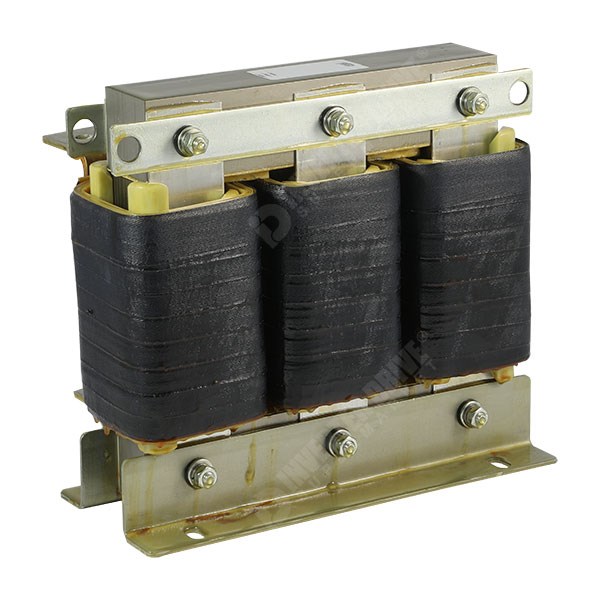

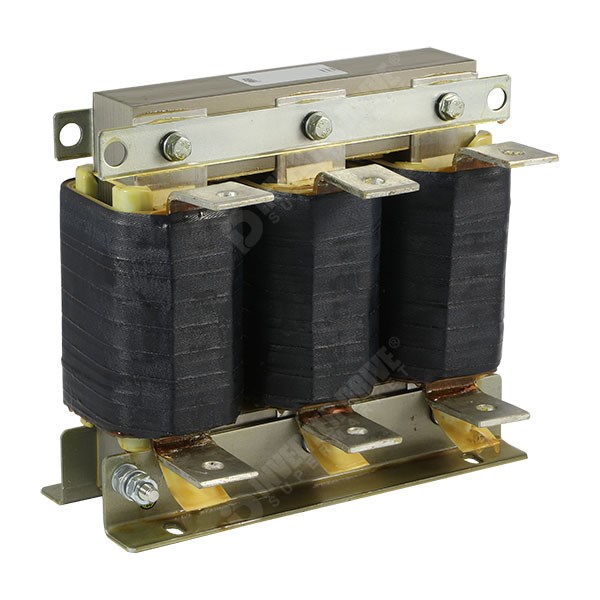

REO 4% 160A AC Line Choke, 400V 3ph, IP00

4% AC Line Choke to 160A Three Phase.Connect to the mains input of a 3ph AC Inverter Drive to increase protection from mains transients, reduce harmonic current (THD) and reduce the RMS load.
Recommended for an Inverter Drive connection to a high fault level low impedance supply, where sliding contacts on busbars are present and where the incoming power supply is prone to spikes, dips notches or other disturbances.

Current Rating: 160A.
Overload: 1.5 x for 60 seconds onece per hour.
Voltage: up to 500V 3 phase
Inductance: 0.180mH.
Power Loss: 145W.
Protection: IP00.
Dimensions: 240mm x 175mm x 210mm High.
Weight:  22kg.
Standards:  EN 60289 / EN 61558

Also known as: Mains Choke, Line Reactor, AC Choke, AC Inductor or Input Choke.

Part Number: NCNW903/160.
