WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered

CFW300A07P3S2NB20 (13059418)

Order Code: 30438

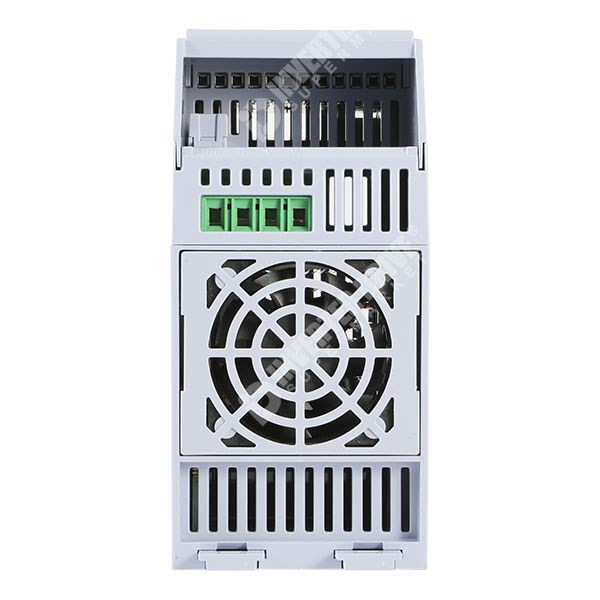

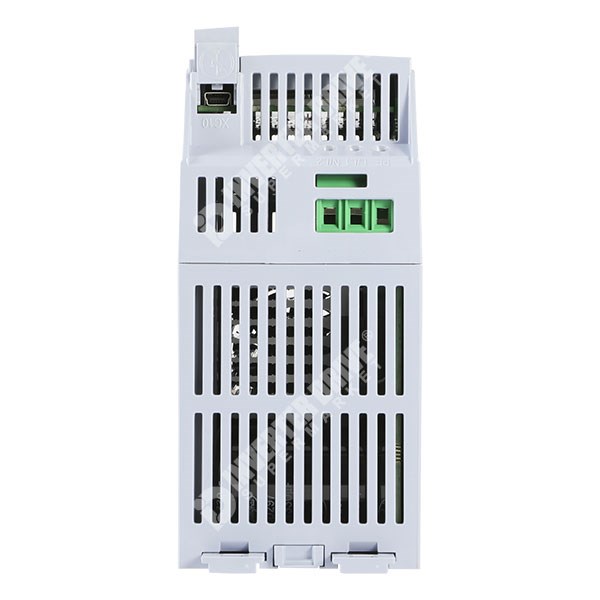

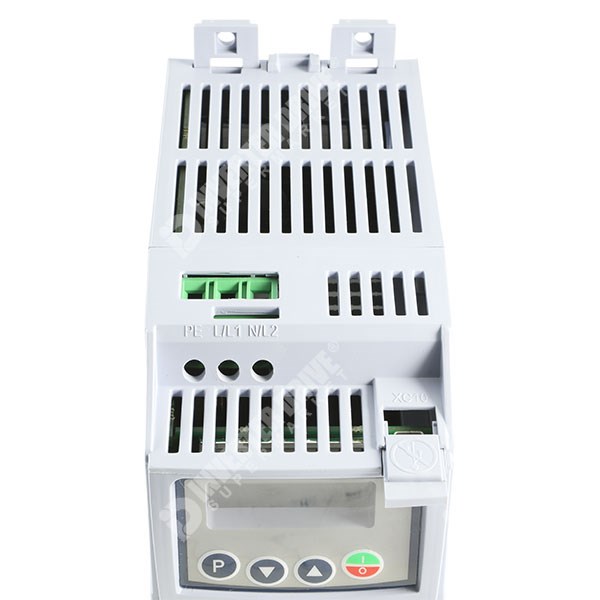

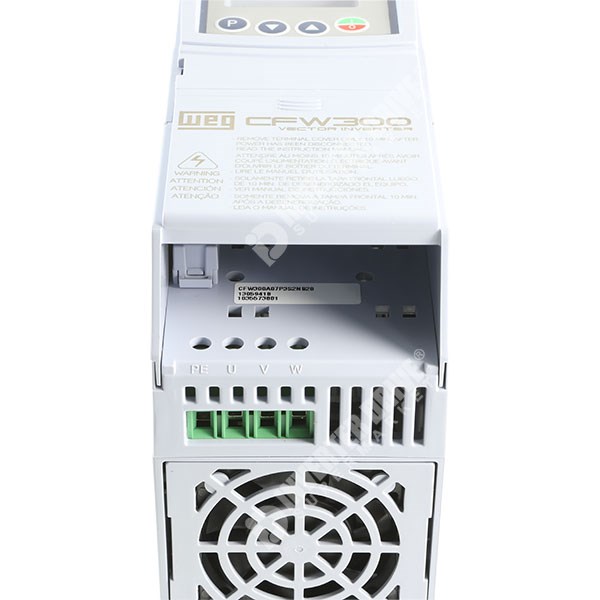

Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Photo of WEG CFW300 IP20 1.5kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
1 in stock (2+ normally 15 weeks)
Order by 3pm for next working day delivery*

List Price: £254.00

£139.70
(excl. VAT)
£167.64
(inc. VAT )
Price break
per unit
1+
£139.70

Condition: New with Warranty
Brand: WEG, Range: CFW300

Introduction

WEG CFW300 AC Variable Speed Drive (VSD / VFD) for 1.5 kW 230 V three-phase motors. Converts a fixed 230 Vac single-phase supply into a variable frequency output to control the speed of a standard AC induction motor.

The WEG CFW300 is a compact variable speed drive for OEM and general industrial applications, with V/F and sensorless vector control, a built-in keypad, and expandable I/O options. Suitable for applications such as small conveyors, air handling units, and dosing pumps.

Rating Overview
Continuous Output Current Overload Speed Range Motor Type Control Type
7.3 A 150 % for 60 s every 10 mins 0 to 400 Hz Standard AC induction V/f or sensorless vector
Installation Information
  • IP20, suitable for DIN rail or panel mounting in a suitable control cabinet
  • Power loss: 90W at full load
  • Rated for 50°C operation
  • Weight: 0.9kg
Input Power
Input Current at Full Load Input Voltage Voltage Tolerance Nominal Frequency Frequency Range Maximum Power Cycles
16.1A 200 Vac to 240 Vac -15 % / +10 % 50/60 Hz 48 to 62 Hz 10 per hour; 1 every 6 minutes

Part Numbers

Part Numbers
Manufacturer Part Number CFW300A07P3S2NB20
WEG Product Code 13059418
Previous Generation N/A



The WEG CFW300 is a current-generation product with no direct predecessor.



All Products in the CFW300 Single-Phase Series (this product shown in bold)

Series Overview
kW Rating 0.37 kW 0.75 kW 1.5 kW 2.2 kW
Output Current 2.6A 4.2A 7.3A 10A
Frame Size A A A B
Product Code 13059320 13059321 13059418 13059419

The CFW300 is also available for 400Vac three-phase mains supply from 0.37kW to 7.5kW.
