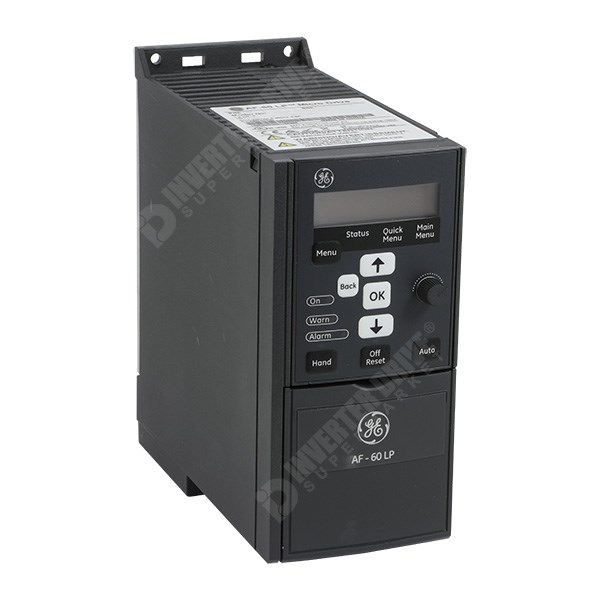

General Electric AF-60LP Series AC Inverter for 1.5kW (2HP) 230V 3 phase AC motor to 6.8A. Operates in standard VxF and converts single phase fixed frequency 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor.
Dimensions: 75mm Wide x 168mm Deep x 176mm High (excluding grounding plate if fitted).
IP Rating: IP20
Weight: 1.6kg.
Output Current: 6.8A
Overload: 150% x 60 seconds
Speed Control Range: 0-200Hz
Braking: Minimum 74 Ohm external resistor (not supplied) - use the 'Which Resistor' button on this page.
Keypad: Start, Stop, Programming Keys and Potentiometer.

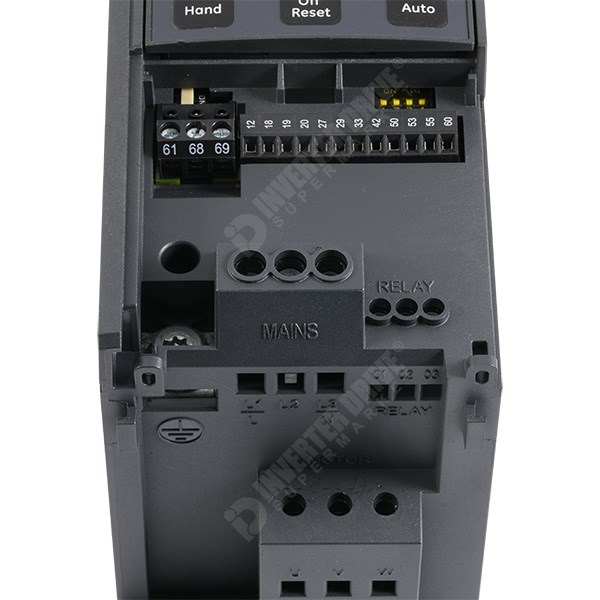

Remote Controls: 1 Analogue Input, 4 Digital Inputs, 1 Analogue Output, 1 Relay Contact set.
Input Current: 10.2A Max
Input Voltage: 200V-240V Single Phase ±10%, 50-60Hz ±5%
EMC Compliance: Class A (Industrial).
Cubicle Mounted.
Ambient: 40°C Max.
Ventilation space: Above/below: 100mm; Sides: 0mm (side-by-side mounting); Front: Not Specified
Heat Loss: 57W

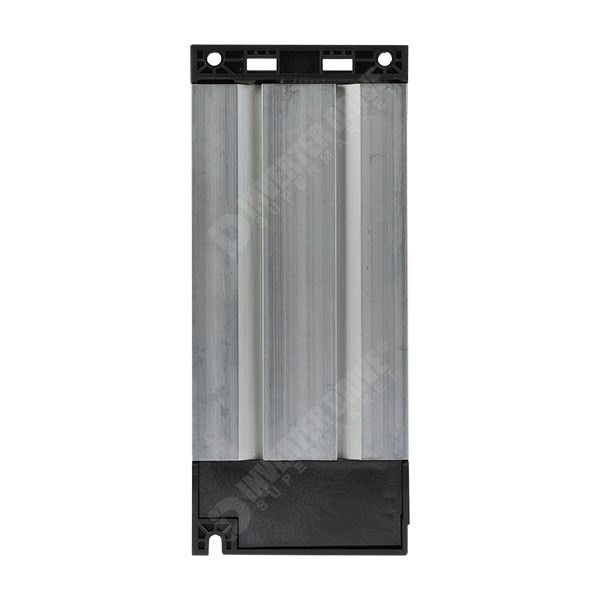

Mounting: 4 x 5mm diameter holes at rear on 59mm x 166mm centres. For optional DIN rail mounting kit see linked products below.
Part number: 6KLP21002X9A1 or 404777. Sometimes specified as AF60
