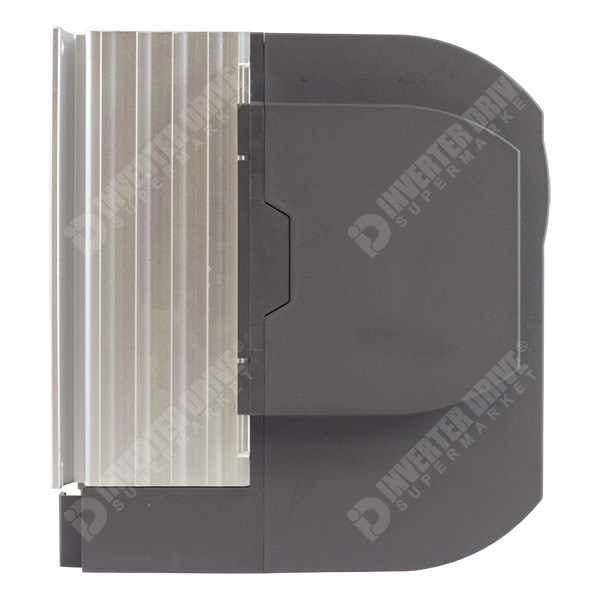

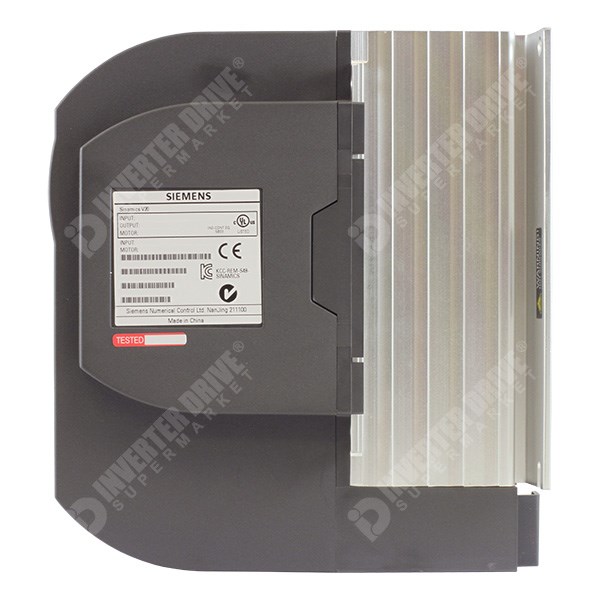

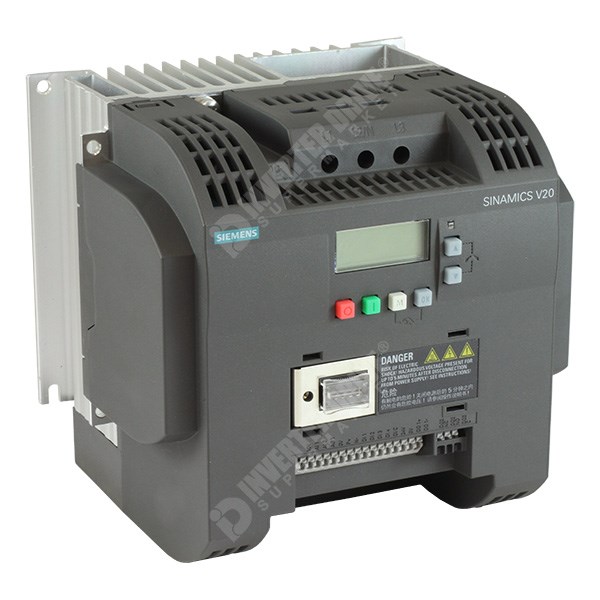

Siemens V20 Series AC Frequency Inverter for 5.5kW (7.5HP) 400V three phase motor in VxF control to 12.5A. Converts fixed frequency three phase 400V input to variable frequency three phase 400V to control the speed of a standard AC Induction motor.
Dimensions: Size FSC 184mm Wide x 169mm Deep x 182mm High.
Enclosure: IP20.

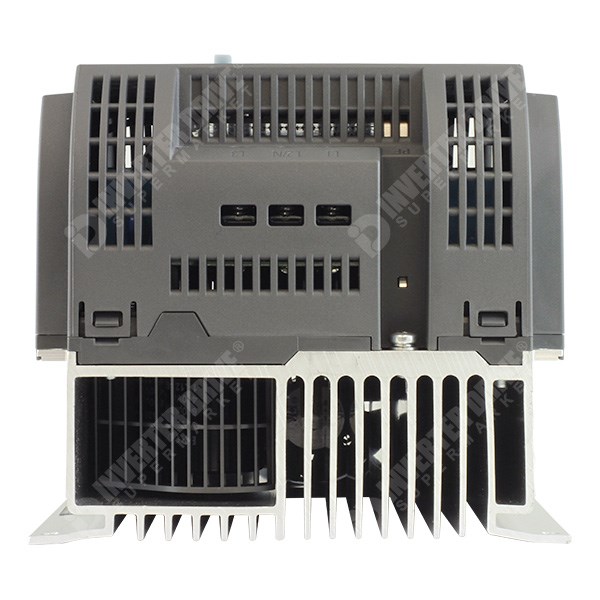

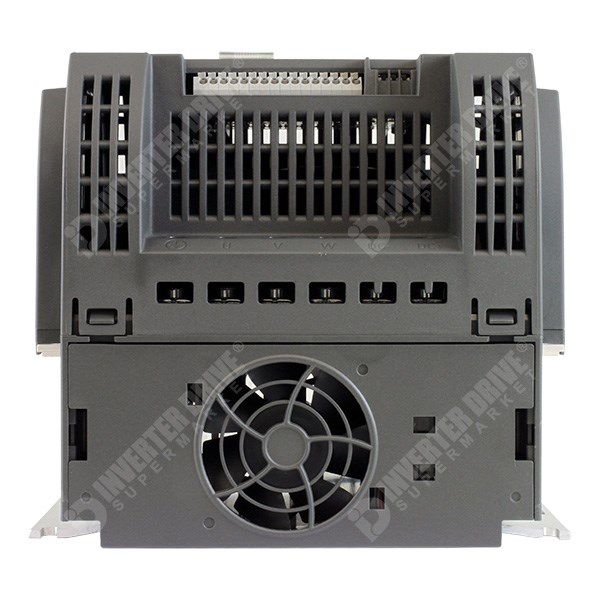

Cooling: Single fan.
Weight: 2.6kg.
Overload: 150% x 60 seconds followed by 94.5% for 240 seconds (High Overload).
Speed Control Range: 0-550Hz.
Braking: Via optional Dynamic braking module - see linked products below.

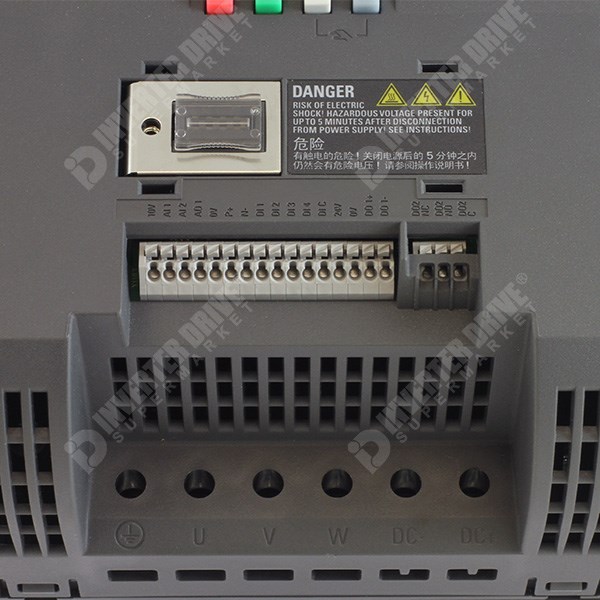

Features: Integrated Keypad, 2 Analogue/Digital Inputs, 4 Digital Inputs, 1 Analogue Output, 1 Digital Output, 1 Relay Contact Set, 1 Expansion Port, DC Bus Terminals, Terminals for Modbus RTU or USS over RS485 Communications.
Input Current: 15.2A.
Input Voltage: 380V to 480V Three Phase -15% +10% at 50-60Hz ±5%.
EMC Compliance: IEC EN 61800-3 Category C3 (Industrial).
Cubicle mount.
mbient Temperature: 40°C.
Ventilation Space: 100mm above, 100mm below, 15mm at sides or 0mm between V20 drives.
Heat Loss: 145W at maximum output.
Mounting: Via 4 holes at rear for M5 screws on 170mm x 140mm centres.
Manufacturers Part Number: 6SL3210-5BE25-5CV0. Sometimes specified as 6SL32105BE255CV0.
Download the Siemens V20 Manual and Quick Start Guide from the links below:-
