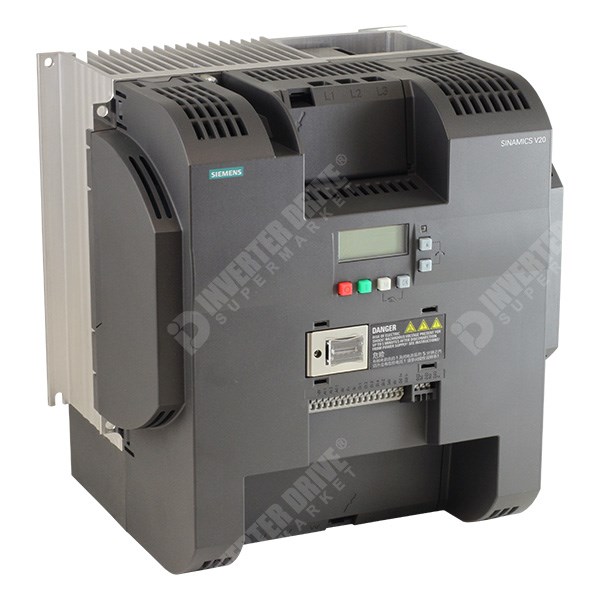

Siemens V20 Series AC Frequency Inverter for 18.5kW (25HP) 400V three phase motor to 38A at high overload or 22kW (30HP) to 45A when Fan/Pump rated. Operates in VxF control and converts fixed frequency three phase 400V input to variable frequency three phase 400V to control the speed of a standard AC Induction motor.
Dimensions: Size FSE 245mm Wide x 209mm Deep x 264.5mm High.
Enclosure: IP20.

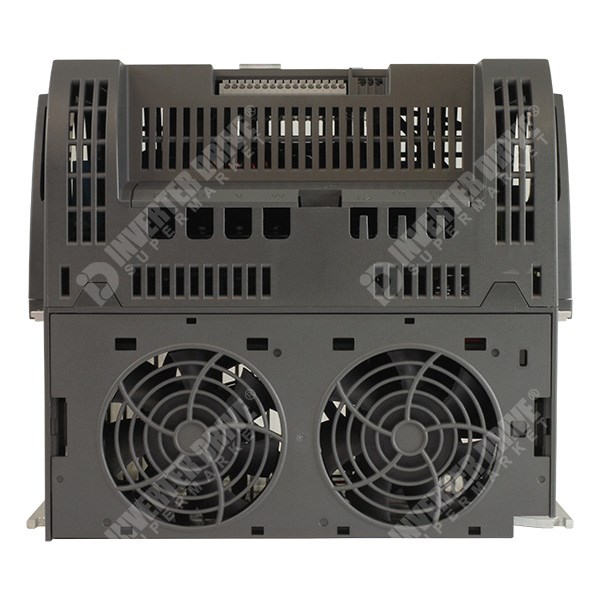

Cooling: Two fans.
Weight: 6.8kg.
Overload: 150% x 60 seconds followed by 94.5% for 240 seconds (High Overload), or 110% x 60 seconds followed by 98% for 240 seconds when Fan/Pump rated.
Speed Control Range: 0-550Hz.
Braking: To 27 Ohm minimum, external resistor (not supplied) - See the Resistor options linked below or use the 'Resistor Calculator' link at the bottom of this page.

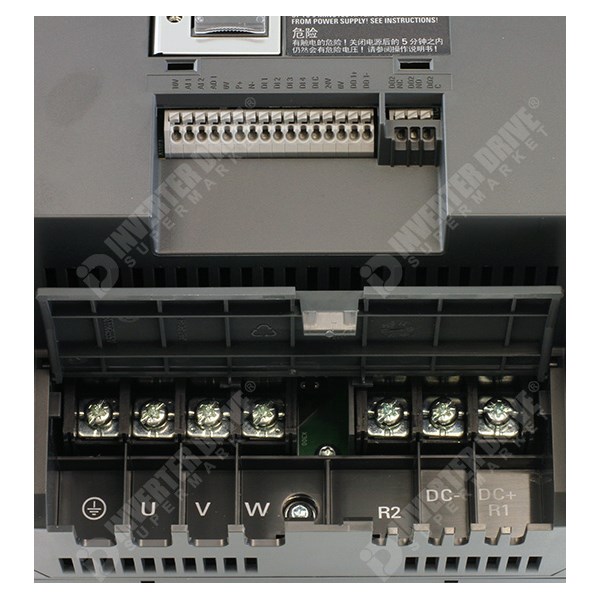

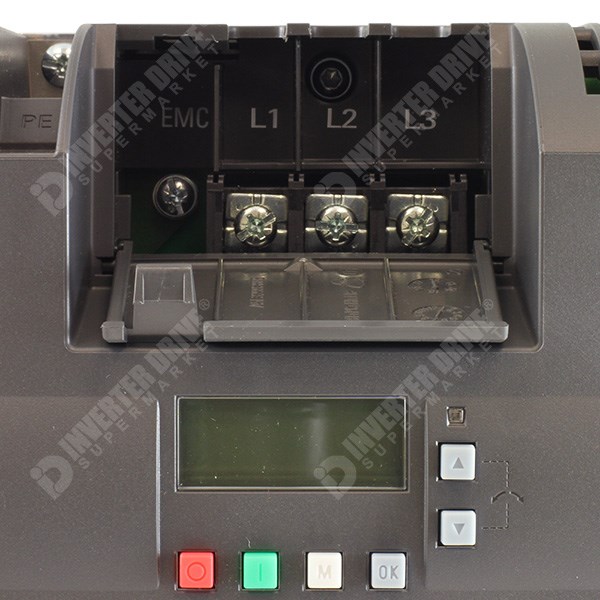

Features: Integrated Keypad, 2 Analogue/Digital Inputs, 4 Digital Inputs, 1 Analogue Output, 1 Digital Output, 1 Relay Contact Set, 1 Expansion Port, DC Bus Terminals, Terminals for Modbus RTU or USS over RS485 Communications.
Input Current: 45A (High Overload), or 54A when Fan/Pump rated.
Input Voltage: 380V to 480V Three Phase -15% +10% at 50-60Hz ±5%.
EMC Compliance: IEC EN 61800-3 Category C3 (Industrial). EMC filters for size FSE can be disabled if required.
Cubicle mount.
Ambient Temperature: 40°C.

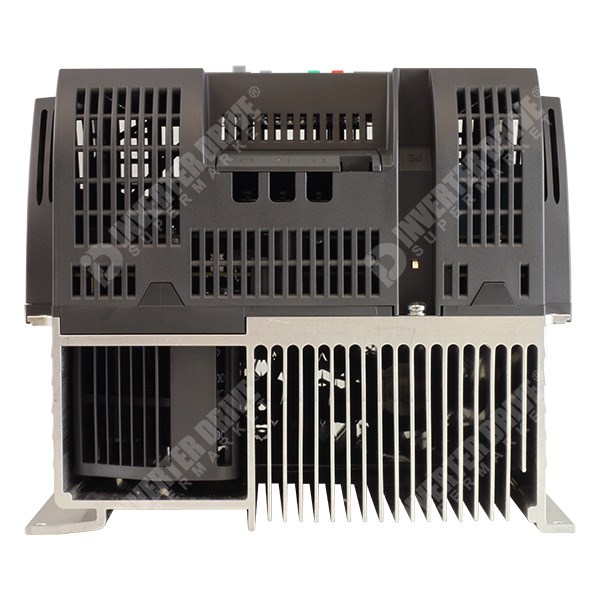

Ventilation Space: 100mm above, 100mm below, 15mm at sides or 0mm between V20 drives.
Heat Loss: 387W maximum output at High Overload, or 475W when Fan/Pump selected.

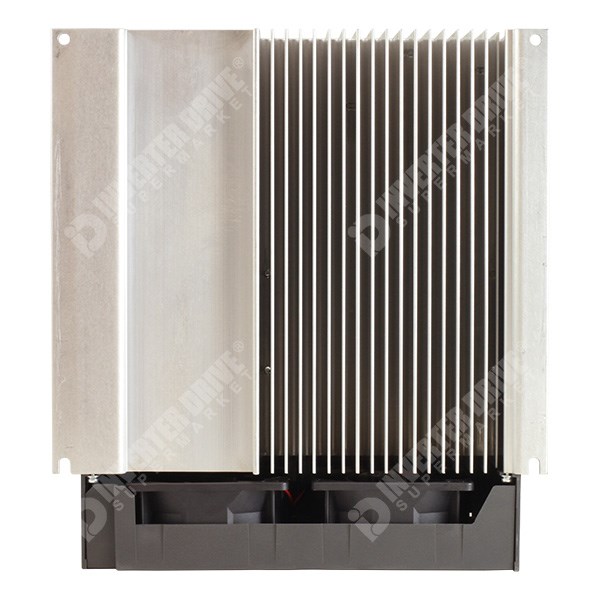

Mounting: Via 4 holes at rear for M5 screws on 228mm x 206mm centres.
Manufacturers Part Number: 6SL3210-5BE31-8CV0. Sometimes specified as 6SL32105BE318CV0.
Download the Siemens V20 Manual and Quick Start Guide from the links below:-
