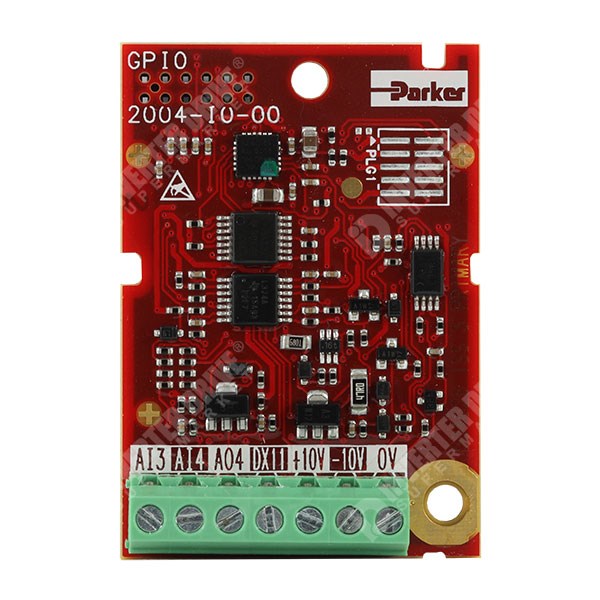

Parker I/O Expansion Card (1 x DI or 1 x DO, 2 x AI, 1 x AO) for AC20 series AC Inverters

Parker General Purpose I/O Card for AC20 Series of AC Inverters. Adds 1 Digital Input or 1 Digital Output and 2 Analogue Inputs and 1 Analogue Output

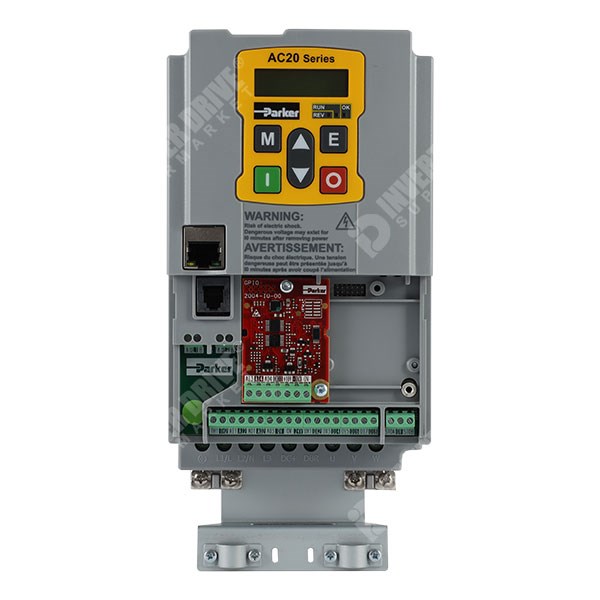

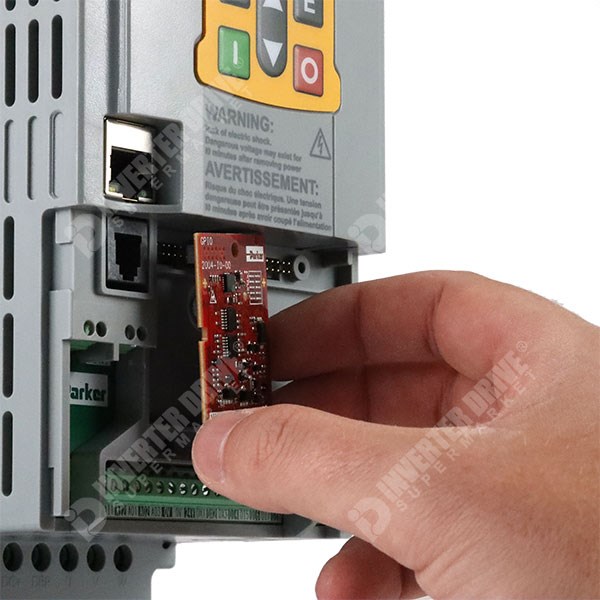

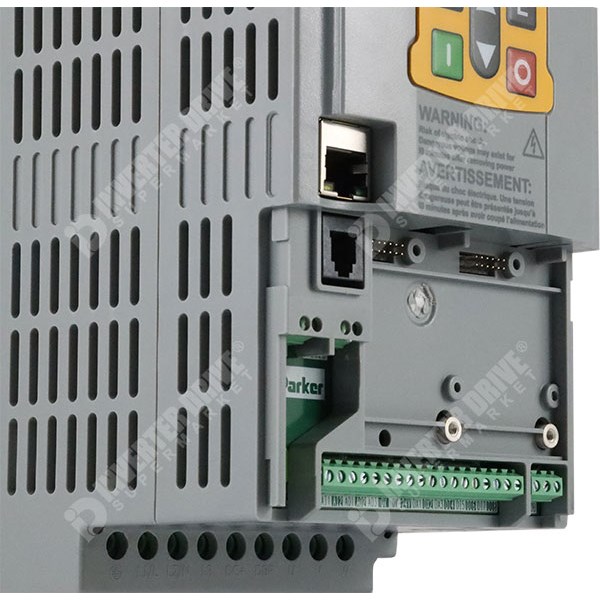

Fits Internally in the AC20 Module. 2 option slots are available which can both be fitted with an Expansion card.

1 x Multi-functional Digital I/O; can be programmed as a Digital Input or Digital Output. (50mA Max Output; total output including Control Board must not exceed 120mA)

2 x Analogue Inputs (+/- 30V Max Input)

1 x Analogue Outputs (+/- 10mA Max Output)

+10V and -10V Voltage Reference. 10mA Max

Manufacturer Part Number: 2004-IO-00
