WEG DLWM - DOL Starter with Overload for 230V Single Phase Motor to 2.2kW, IP65

Name: WEG DLWM - DOL Starter with Overload for 230V Single Phase Motor to 2.2kW, IP65
Brand: WEG
SKU: 26258
Price: 56.46 GBP
Availability: InStock

DLWM-18D24P65-R31 (10804990)

Order Code: 26258

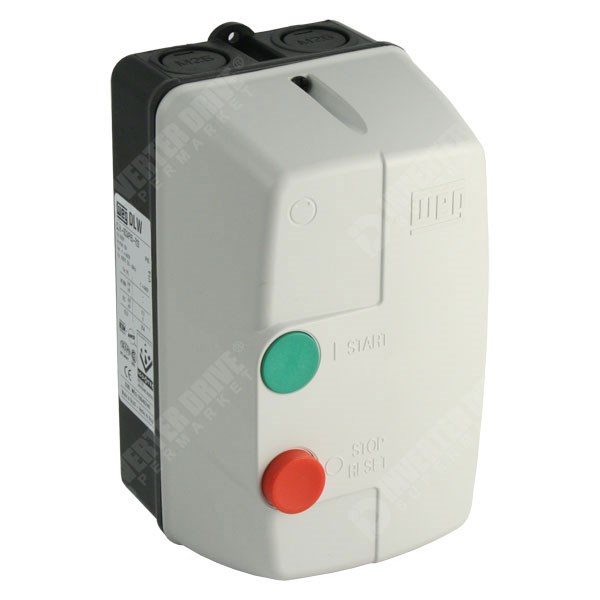

Photo of WEG DLWM - DOL Starter with Overload for 230V Single Phase Motor to 2.2kW, IP65

10+ in stock

Order by 3pm for next working day delivery*

List Price: ~~£54.71~~

£47.05

(excl. VAT)

£56.46

(inc. VAT )

Price break

per unit

£47.05

Condition: New with Warranty
Brand: WEG, Range: DLWM DOL Starter

Details

WEG Automation DLWM Series 10A to 15A Enclosed Direct On Line Starter with adjustable Thermal Overload Protection for use with a 2.2kW 230V Single Phase Motor. Provides simple Start/Stop motor control combined with over-current protection.
This starter can also be used on a 110V single phase ac supply for 1.1kW (230V contactor coil needs replacing with 110V coil - see optional product below)

Size: 100mm Wide x 110mm Deep x 180mm High. IP65.
Weight: 1kg

Supply Voltage: 230-240V 50/60Hz
Trip: 10A - 15A (adjustable)
Short-circuit protection: not included.

Thermal overload reset is integrated into stop button.

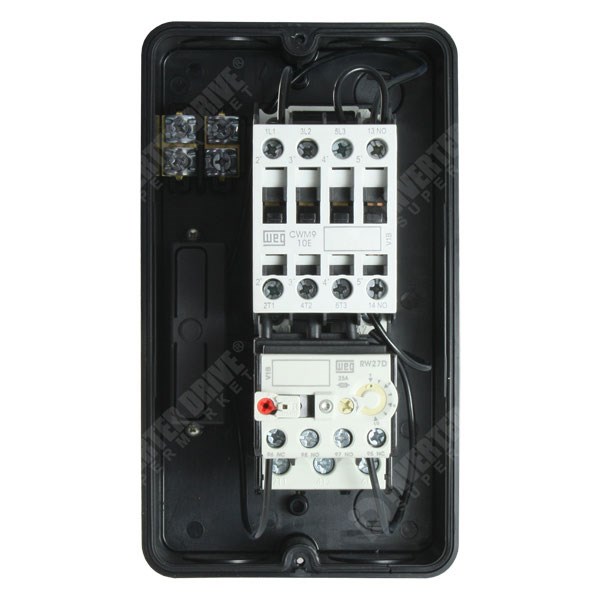

Connections are:- Supply to 1L1 & 5L3 - Motor on 4T2 & 6T3.
