Dynamic Brake Resistor, 30 Ohms, 19500 Watts

03375SI30RW19500 -MOD.SI/MOD3/5

Order Code: 38283

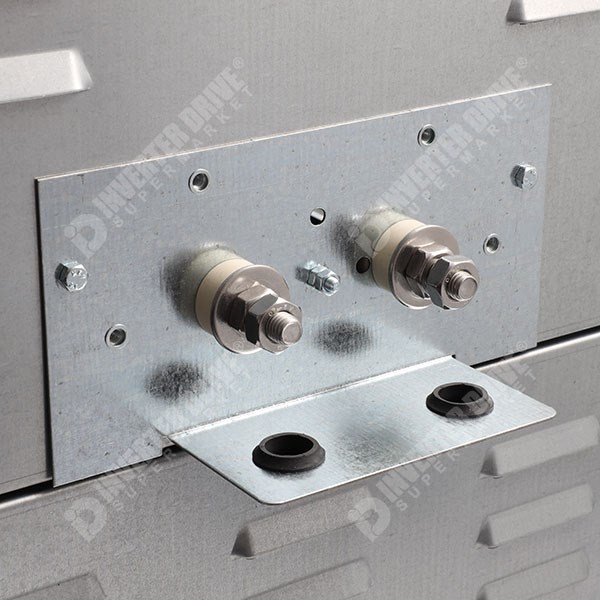

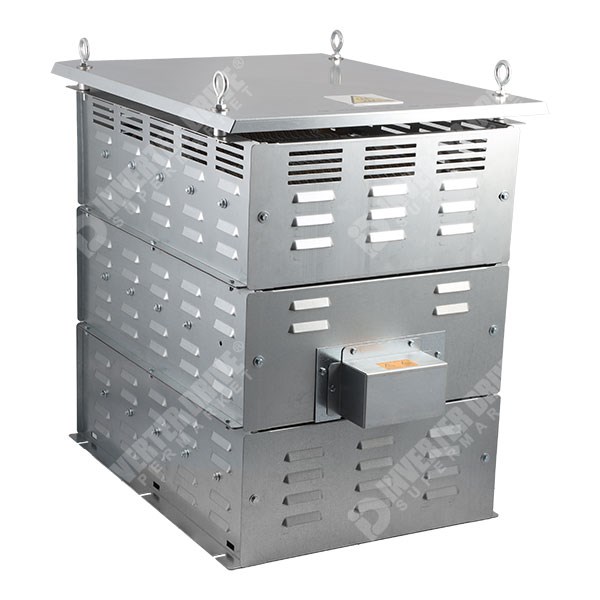

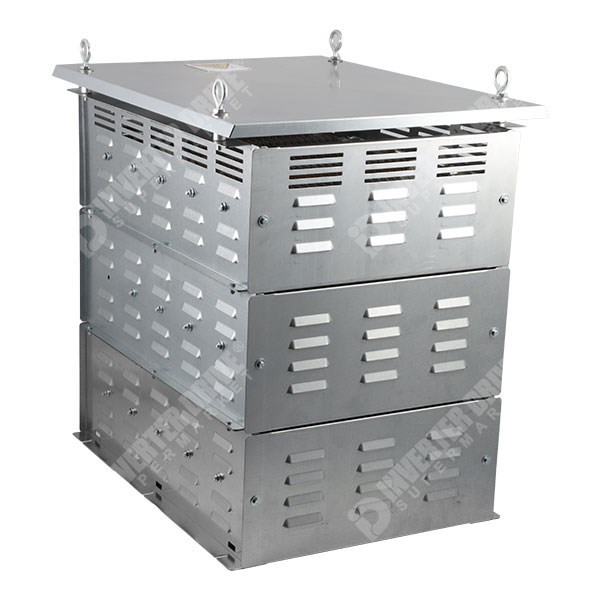

Photo of Dynamic Brake Resistor, 30 Ohms, 19500 Watts
Photo of Dynamic Brake Resistor, 30 Ohms, 19500 Watts
Photo of Dynamic Brake Resistor, 30 Ohms, 19500 Watts
Available to Order
Delivery normally 3 weeks
£1,157.00
(excl. VAT)
£1,388.40
(inc. VAT )
Price break
per unit
1+
£1,157.00

Condition: New with Warranty
Brand: Inverter Drive Supermarket, Range: Encased Dynamic Brake Resistors

Dynamic Braking Resistor rated 30 Ohms x 19,500 Watts for 10 seconds (19.5kW).
Application: When connected to a suitable Inverter drive, this will reduce the stop time by absorbing energy returning from the load.

Overload: None.
Tolerance:  +-5%.
Nominal Voltage: 1000V AC/DC.
Peak Voltage: 3000V.

Dimensions: 570 x 430 x 600mm high with mesh cover (excluding terminal cover).
Enclosure: IP23 when mounted (Open to rear).
Net Weight: 30kg.

Klixon over-temperature protection included.
