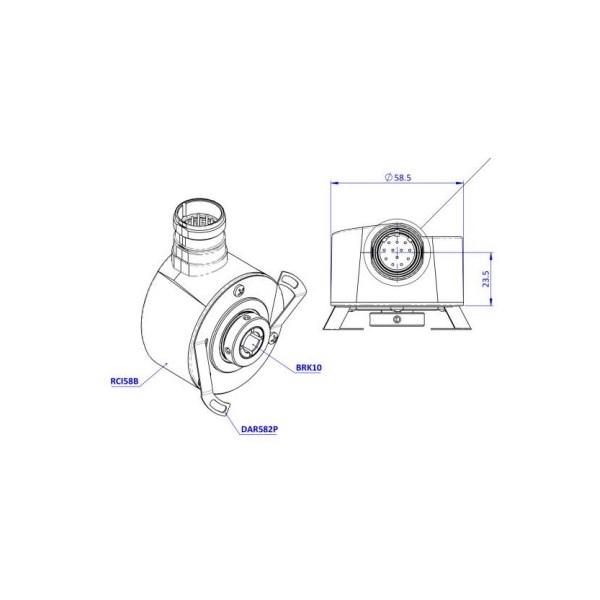

Radio Energie Blind Hollow Shaft Incremental Optical Encoder Kit at HTL level with loose small restraint and screws.
PPR: 1024ppr default, programmable.
Signals: HTL, A+, B+, Z+, A-, B-, Z- push/pull at 11V to 30V.
Supply: 4.75V to 30V DC.
Pulse Frequency: 100kHz maximum.
Maximum Speed: Limited to 5,850RPM by maximum pulse frequency, (6000RPM.mechanical).
Load Current: 40mA avarage per channel.Current Consumption: less than 75mA at no load.
Connection: 12 pin M23 connector. Male, radial.
Dimensions: 70mm diameter x 46.5mm deep overall excluding the shaft and connector.
Shaft: 14mm diameter blind hollow shaft (optional 'BRK' adaptors are available for reduced shaft sizes down to 6mm).
Mounting: Via 2 x 3.2 Dia slots x 18 degrees on 64mm pcd and clamp to shaft.
Weight: 400g
Inertia: 50gcm2.
Driving Torque: 1.2Ncm at working temperature.
Shaft Load: Maximum 20N Axial, 50N Radial.
Protection Rating: IP65.
Customs code: 8503009999
Part number: RCI58-B-14-U-G5-9-1024-G6-R + DAR582P (RC158-B-14-U-G5-9-1024-G6-R + DAR582P).

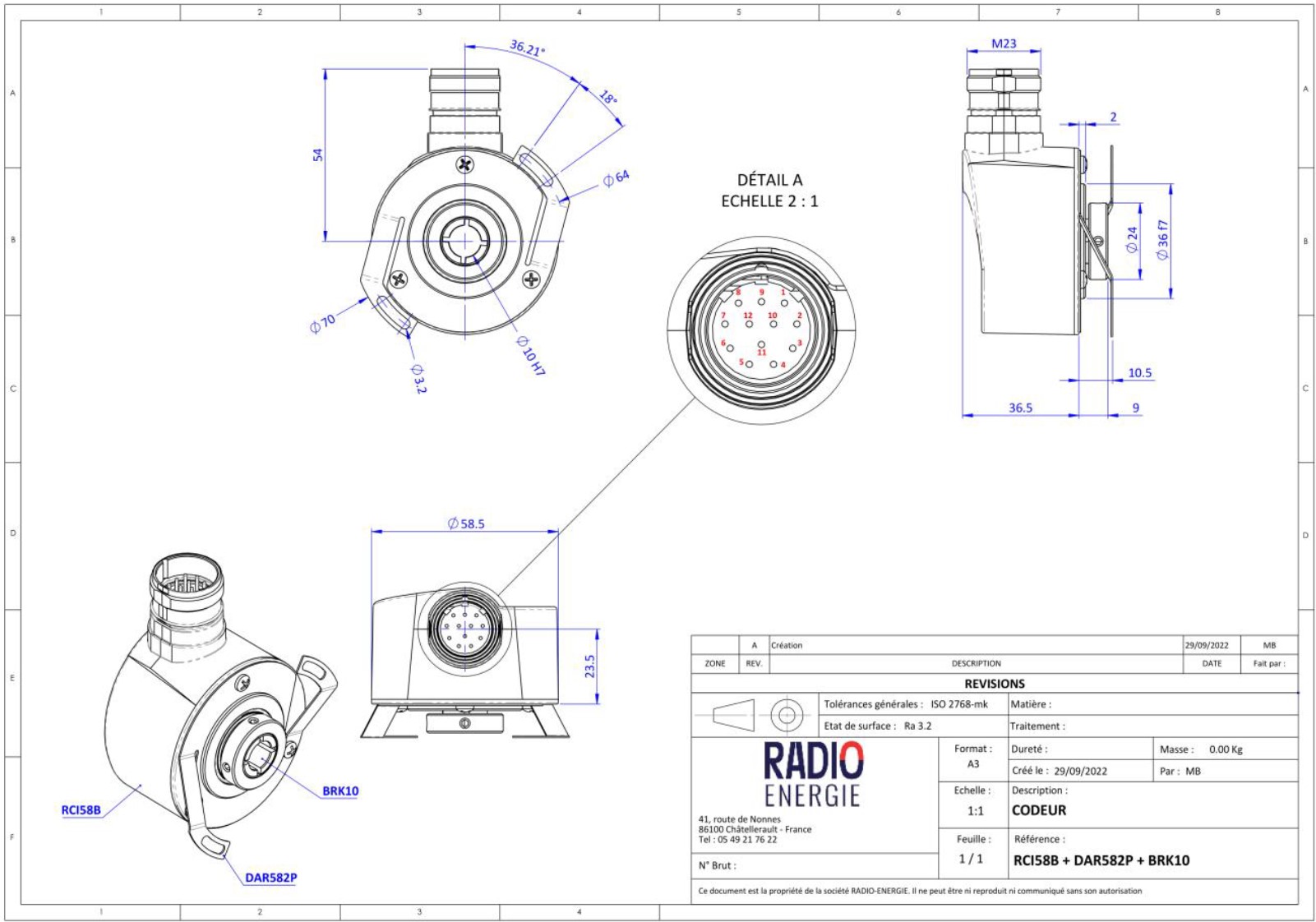

Download the drawing and data sheet from the links below...
