Baumer Encoder 1000ppr HTL 8V to 30V, RE.0444R Compatible Flange/Shaft

Name: Baumer Encoder 1000ppr HTL 8V to 30V, RE.0444R Compatible Flange/Shaft
Brand: BaumerHübner
SKU: 30996
Price: 267.60 GBP
Availability: InStock

EIL580-S1B1.5BN.1000 (11202593)

Order Code: 30996

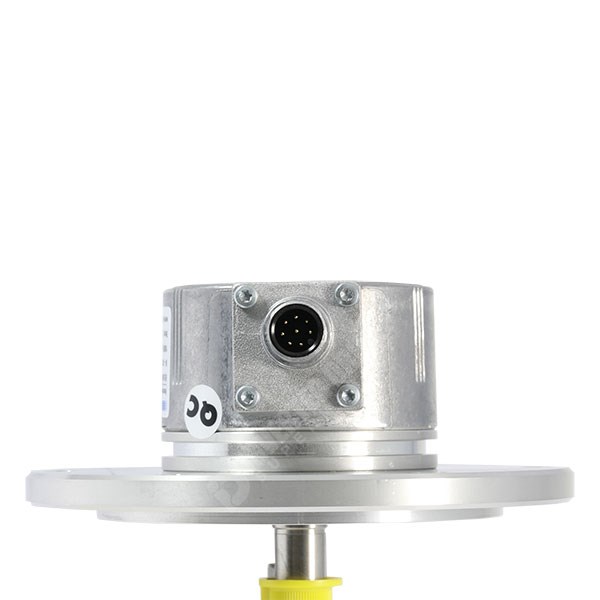

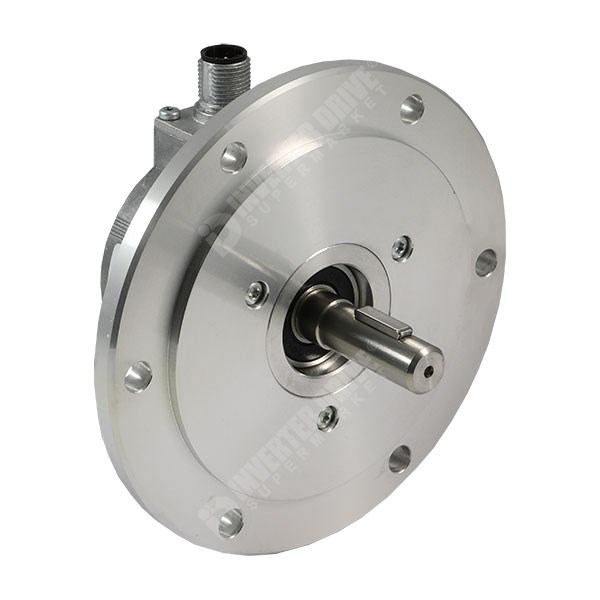

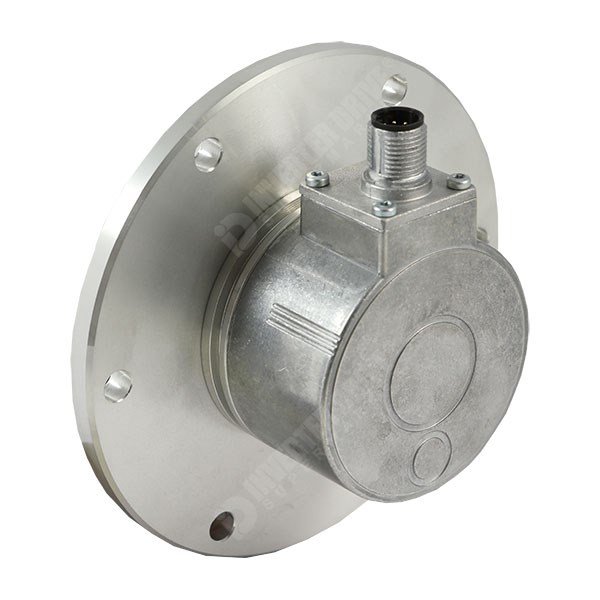

Photo of Baumer Encoder 1000ppr HTL 8V to 30V, RE.0444R Compatible Flange/Shaft

1 in stock (2+ normally 18 weeks)

Order by 3pm for next working day delivery*

£223.00

(excl. VAT)

£267.60

(inc. VAT )

Price break

per unit

£223.00

Condition: New with Warranty
Brand: BaumerHübner, Range: Incremental Encoder

Details

Optical Encoder at HTL level for Feedback to DC Thyristor or AC Flux Vector drives.

PPR: 1000ppr pulses per revolution.
Signals: HTL/Push-Pull A+, B+, R+, A-, B-, R- (Vout = Vin).
Supply: 8V to 30V DC.
Consumption: 70mA without load.
Maximum Speed: 9600RPM.
Pulse Frequency: 160kHz at HTL.

Approvals: UL 508 / CSA 22.2.
Dimensions: 58mm diameter mounted onto 115mm diameter flange, excluding the radial connector.
Weight: 485g
Mounting: Flange mount on 6 x 6.5mm diameter holes on 100mm pcd with 85mm diameter register (as the Industry Standard REO444R flange and shaft).
Shaft: 11mm Diameter x 30mm with 4mm wide keyway.
Protection Rating: IP65.
Connection: 8 Pin radial M12 connector.
Customs code: 8503009999

Part number: EIL580-S1B1.5BN.1000. Mechanically interchangeable with the Parker SSD MicroTach Encoder 5701/1 (DD055627U001) and wire ended encoder 5902 (DD385536U010).

Download the drawing and data sheet from the links below...
