The Invertek OPT-3-MTPEG-IN is an external Modbus TCP/IP Ethernet interface module (gateway) designed to enable communication between Invertek Optidrive inverters and industrial control systems over standard Ethernet networks.
The unit acts as a Modbus TCP gateway, allowing up to two Invertek drives to be connected to an Ethernet network via Modbus RTU to Modbus TCP conversion.
Unlike plug-in option cards, this unit is supplied as a standalone external interface, making it ideal for installations where remote mounting or flexible panel layout is required. The module supports DIN rail mounting, allowing quick integration into control panels and industrial enclosures.
Using the Modbus TCP protocol, the OPT-3-MTPEG-IN provides reliable, high-speed communication for monitoring, control, and diagnostics via PLCs, SCADA systems, and building management systems (BMS). It offers a practical solution for upgrading existing installations to industrial Ethernet (Modbus TCP) connectivity without requiring internal option cards or drive modification.
Key Technical Information
- Communication Protocol: Modbus TCP/IP (Ethernet)
- Connection Type: RJ45 Ethernet interface
- Drive Interface: Modbus RTU via RJ45 (D1/D2) to compatible Invertek drives
- Mounting Options: 35mm DIN rail using included clip or panel mounting
- Installation: External module (not drive-mounted)
- Dimensions: 47mm wide x 89mm high
- Weight: 65g
Ports/Connectors

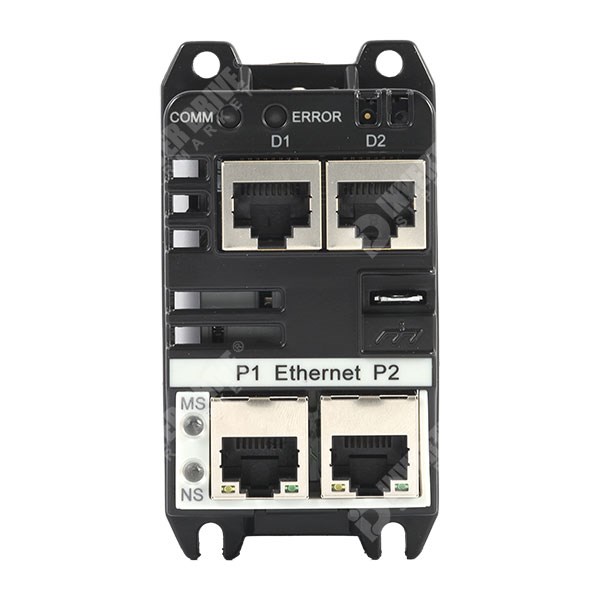

- D1 and D2 (RJ45): Modbus RTU for connection to RJ45 communication port on up to 2 compatible drives.
- P1 and P2 (RJ45): Modbus TCP/IP Ethernet network in/out.
- Spade connector for ground.

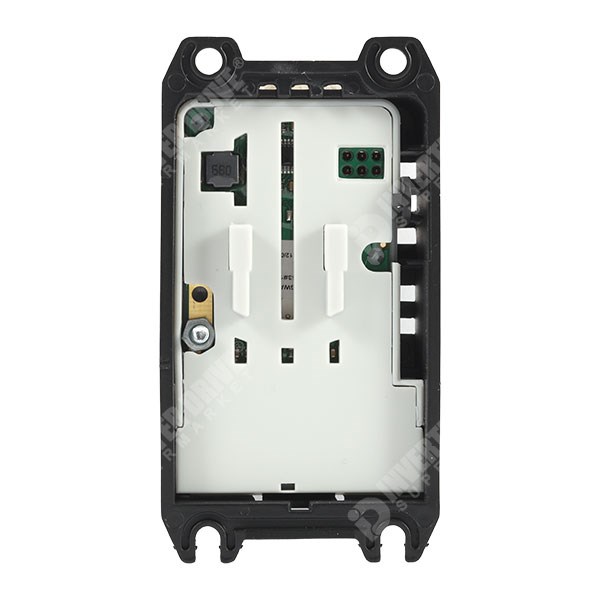

Mounting
- 35mm DIN rail using included clip.
- 4 x M4 screws (not included) on 76mm x 31mm centres.
Internal Webserver
An internal webserver is included for device configuration and management. The default connection details are:
- IP Address: 192.168.1.253
- Subnet: 255.255.255.0
- Username: Admin
- Password: [device serial number]
Compatibility
The OPT-3-MTPEG-IN is designed for use with compatible Invertek Optidrive variable frequency drives (VFDs), including:
- Optidrive E3
- Optidrive P2
- Other models with the RJ45 Modbus RTU port
(Compatibility depends on drive interface and firmware - refer to the manual or contact us if unsure.)
Key Features
- External Modbus TCP Ethernet interface for Invertek drives
- DIN rail mounting for easy panel installation
- Enables integration with PLC, SCADA, and BMS systems
- High-speed, reliable industrial Ethernet communication
- Ideal for retrofit and upgrade applications
- No need for internal option slot
Documentation
Download the Invertek Fieldbus manual from the link below:
