TEC FCNDK90 10:1 144RPM Worm Gearbox 1.1kW 4 Pole 90 Frame B14 Motor

Name: TEC FCNDK90 10:1 144RPM Worm Gearbox 1.1kW 4 Pole 90 Frame B14 Motor
Brand: TEC Electric Motors
SKU: 39183
Price: 282.00 GBP
Availability: InStock

FCNDK90-10/1-90B14

Order Code: 39183

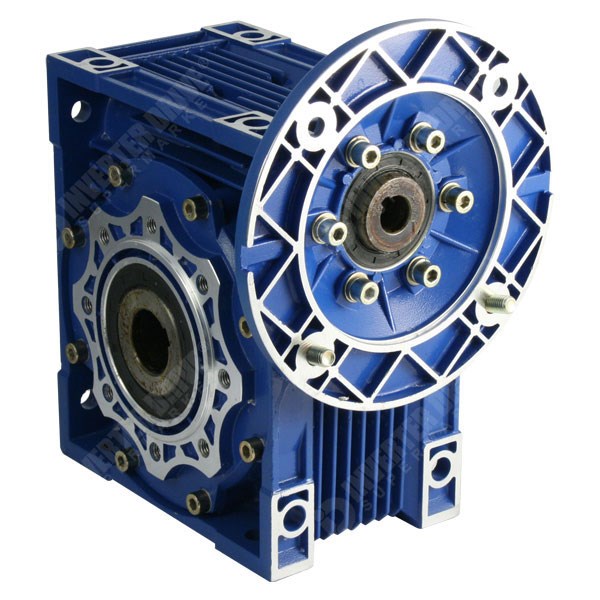

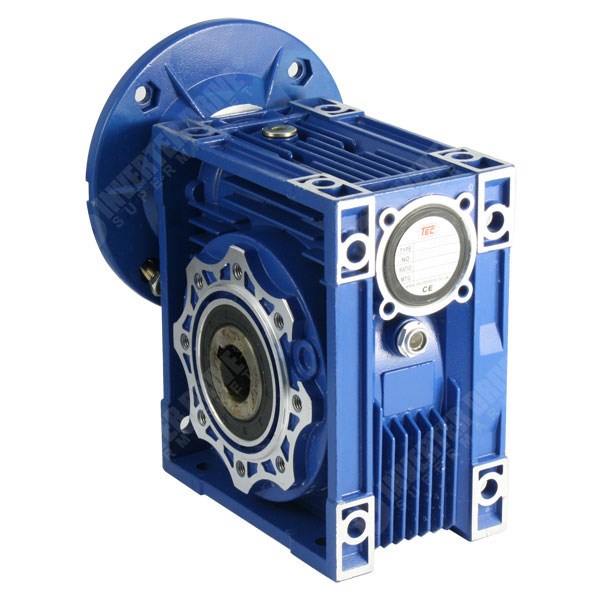

Photo of TEC FCNDK90 10:1 144RPM Worm Gearbox 1.1kW 4 Pole 90 Frame B14 Motor

1 in stock (2+ normally 3-5 days)

Order by 3pm for next working day delivery*

£235.00

(excl. VAT)

£282.00

(inc. VAT )

Price break

per unit

£235.00

10+

£213.85

Condition: New with Warranty
Brand: TEC Electric Motors, Range: TCNDK Right Angle Gearbox

Details

TEC FCNDK90 - Right-angle Worm Gearbox for 4 Pole 90 Frame B14 Motor (motor is not included).
Ratio: 10:1
Output Speed: 144RPM for Input Speed at 1439RPM (50Hz)
Max Output Torque: 62Nm
Efficiency: 85%
Max Input Power: 5kW for 4 pole motor.

Output with 1.1kW 4 Pole Motor -0.935kW x 144RPM at 50Hz - 62Nm at 4.9 Service Factor.

Output shaft: 35MM

Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 90 Frame Motor. 24mm bore diameter, 140mm flange with 4 x M8 tapped holes at 115mm PCD with 95mm diameter register

Weight: 13kg

Manufacturers part number: FCNDK90-10/1-90B14
