Marelli XA080MAQ-Replacement B5 Flange for 80 Frame MAQ Series Motor

Name: Marelli XA080MAQ-Replacement B5 Flange for 80 Frame MAQ Series Motor
Brand: Marelli
SKU: 30378
Availability: Discontinued

XA080MAQ

Order Code: 30378

Obsolete Product

This item is now obsolete. Alternatives may be available - see linked products below.

Brand: Marelli, Range: Spare Parts

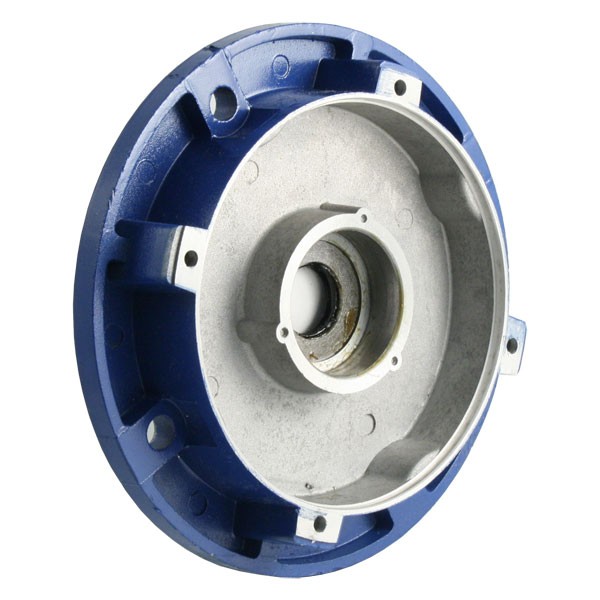

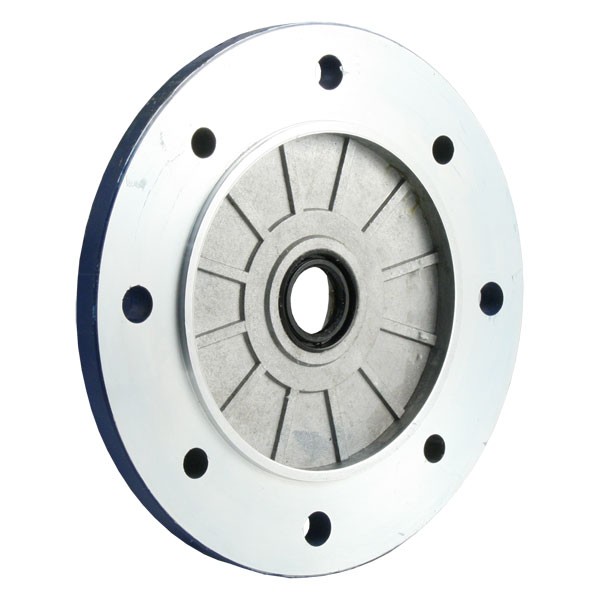

Replacement B5 Flange for 80 Frame Marelli MAQ motor.

Can be used to replace a B3 End Shield or B14 Face if required. Does not include fixings.

This product is suitable for use ONLY with Marelli MAQ Series Motors.

Flange mount (B5) on 11mm holes at 165mm pcd with 130mm dia spigot in the 200mm diameter flange.
