Vascat - 0/16.3/16.3kW x 0/4102/7500RPM – Square Frame AC Vector Motor, foot mounting (B3) for 400V 3 phase supply.
100 Frame, Force Ventilated (IC06) to IP23.
Includes force cooling fan, intake filter, Ball bearing at DE and 1024ppr x 15V HTL Encoder.
Use with Closed Loop AC Vector Drives having the encoder board option fitted for full closed loop vector control.

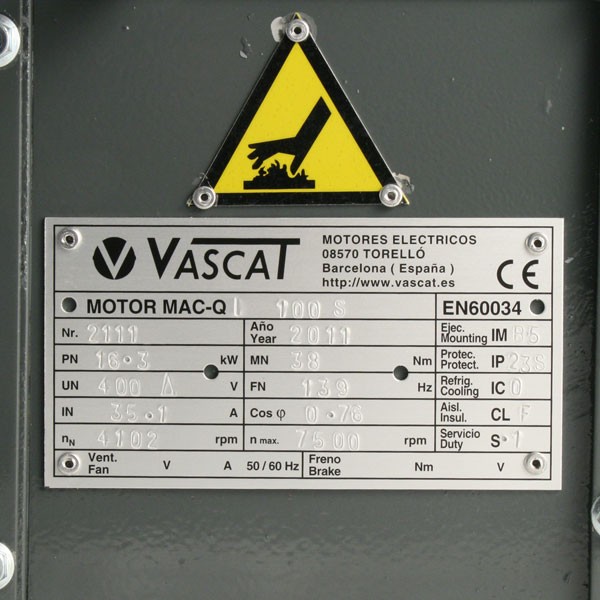

Continuous Output: 16.3kW.
Overload: 150% to S6 (40%), subject to reduced maximum speed.
Base Speed: 4102RPM.
Maximum Speed at Full Output: 7500RPM.
Torque to Base Speed: 38Nm.
Torque at Maximum Speed: 21Nm.
Full Load Current: 35.1A.
Voltage: 400V 3 Phase.
Supply Frequency: 139/254Hz at Base/Maximum Speed.
Magnetising Current: 18.7A.
Overall Dimensions: 221mm Wide x 446mm Long x 441mm high overall.
Mounting: Foot mount on 12mm holes at 160mm wide x 205mm centres.
Flange mounting on 4 x 15mm hole on a 215mm PCD, with a 185mm register
Weight: 50kg.
Rotor Inertia: 0.011kgm2.
Shaft: 38mm diameter x 80mm from shoulder with 10mm wide keyway.
Drive End Bearing: Ball Bearing for a direct connected load.
Bearing Protection: Not usually required at this size (Optional Insulated Bearing and/or standard or High Speed Low Friction bypass Brush/Brushes available, on request)
Ambient Temperature: 40C at up to 1000m above sea level.
Cooling: Force Ventilation Fan with Intake Filter fitted at 0.25kW for 400V 3ph 50Hz supply at 0.71A.
Part number: MAC-QI-100S-222-B3-2186. (MACQI100S-222-B3-1024ppr)
Download the MAC-QI-100S Dimension drawing and output curves from the link below...
