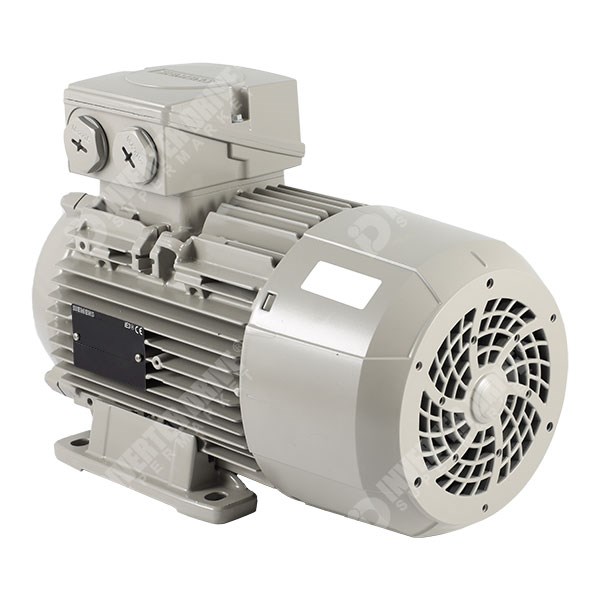

Innomotics Simotics GP IE3 Aluminium 1.5kW three phase 6 pole B3 Foot 100L frame AC Induction Motor for 230V or 400V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency three phase mains supply at 50Hz/60Hz.
Output: 1.5kW at 970rpm.
Speed Range from an Inverter Supply: 96rpm to 2713 rpm (5Hz to 140Hz) derating may be required at the lower speeds due to reduced speed of ventilation fan.
Constant Power Speed Range: 970rpm to 2716rpm continuously.

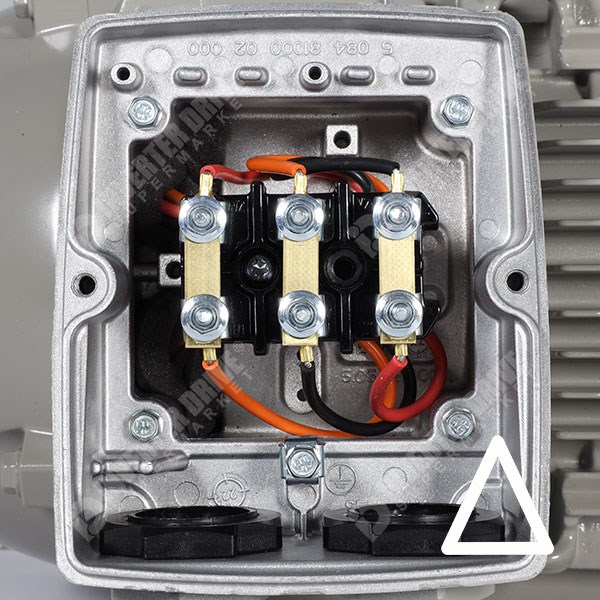

Full Load Current with links in Δ (Delta) for 230V 3ph: 6.3A.
Full Load Current with links in Y (Star) for 400V 3ph: 3.6A.
Torque: 14.8Nm
Efficiency: 82.5% (IE3)
Power Factor: 0.73 when mains connected at 50Hz.
Terminal box position: Top.
Enclosure rating: IP55.
Overall Dimensions: 198mm Wide x 395.5mm Long (including shaft) x 266mm High (Including Terminal Box)
Mounting: B3 Foot
Foot mount on 12mm holes at 160mm wide x 140mm centres 63mm back from the shaft shoulder

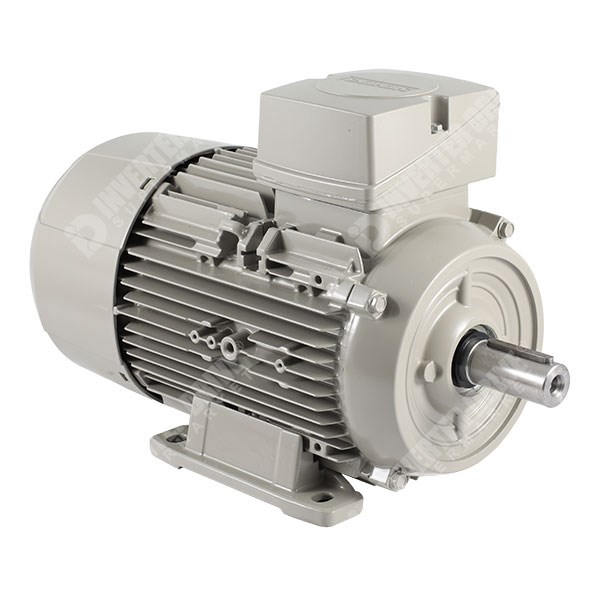

Shaft: 28mm diameter, 60mm long with 8mm key
Construction: Aluminium with removable feet
Weight: 25kg
Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: None
Extended Warranty Available: When purchased with a Siemens AC Inverter (see linked products below) the warranty for the motor can be extended to 3 years. Terms and Conditions apply, registration process is required.
Part number: 1LE1003-1AC42-2AA4; Frame Reference: 1AV3104C B3
