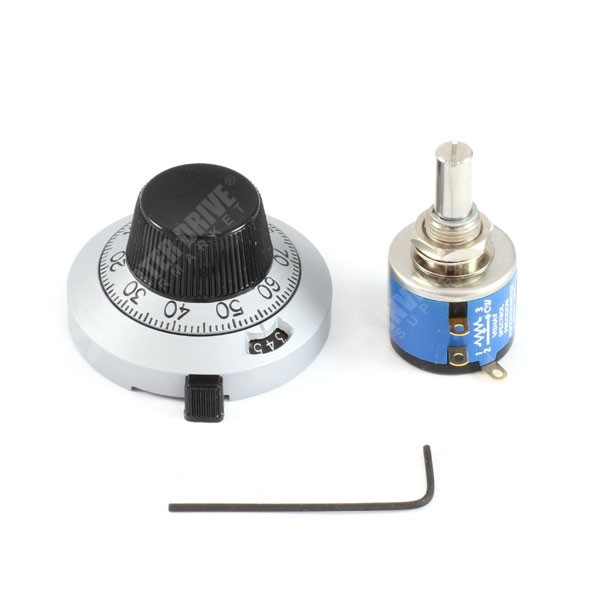

Ten Turn Potentiometer, Knob & Large Turns Counting Dial

10k Ohm Ten Turn Potentiometer and Large Turns Counting Dial to control a Set Speed, Torque or Current Limit signal for all Inverter Drives shown on this web site.

Potentiometer:-
Vishay Spectrol Precision Ten Turn Potentiometer
Shaft: 6.35mm diameter x 15mm long.
Mounting:  10mm threaded bush.
Dimensions:  22.2mm diameter body x 38.8mm length overall.
Linearity: 0.25%.
Rating: 2W at 40C.
Resistance: 10k Ohms +-5%.
Insulation: 450V to MIL-STD-202 Method 301.
Design: Linear wirewound contruction with 3600 degree electrical rotation +10%.

Dial:-
Large 10 Turns Counting Dial with indication and locking lever.
Features: 15 Turns maximum.
Dimensions: 46mm diameter.
Material: Plastic.
Mounting: Onto 0.375in maximum diameter potentiometer shaft. Bush depth 6.9mm. Supplied with allen key.
