Parvex NX420 AC Servo Motor - 4Nm x 4000rpm at 400V, Shaft with Keyway

Name: Parvex NX420 AC Servo Motor - 4Nm x 4000rpm at 400V, Shaft with Keyway
Brand: Parker Parvex
SKU: 36557
Price: 1333.20 GBP
Availability: OutOfStock

NX420EAJR7001

Order Code: 36557

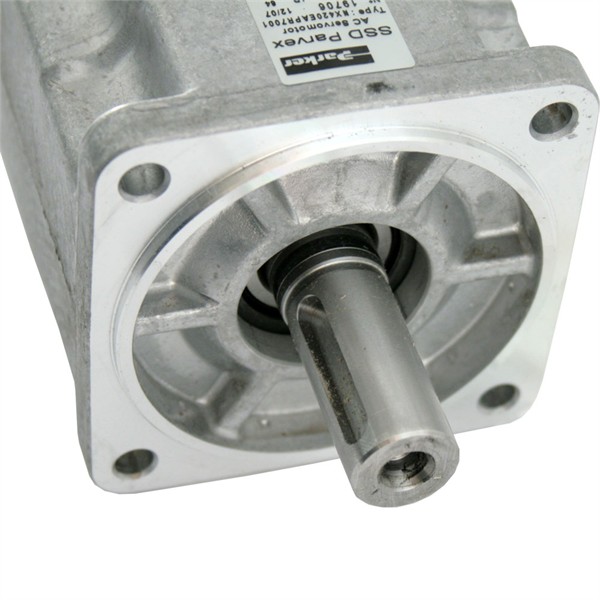

Photo of Parvex NX420 AC Servo Motor - 4Nm x 4000rpm at 400V, Shaft with Keyway

Available to Order

Delivery normally 6 weeks

£1,111.00

(excl. VAT)

£1,333.20

(inc. VAT )

Price break

per unit

£1,111.00

Condition: New with Warranty
Brand: Parker Parvex, Range: NX AC Servo Motors

Details

Parker SSD Parvex NX Series AC Servo Motor (NX420EAJR7001). Resolver fitted and shaft with keyway. IP64 rated.

3.4Nm Rated Torque continuous at 4000RPM for 2.4A x 400V.
4.0Nm Stall Torque at 0RPM for 4.69Arms.
Inertia is 2.9kg/cm²

Dimensions (see linked files below for drawing):-
Body: 91.5mm Square x 175mm Length
Shaft: 19mm Dia x 40mm Length.
Mounting: Flange mount on 7mm dia holes at 100mm pcd with 80mm dia spigot.
Weight: 3.7kg.

For other shaft, IP ratings and braking options together with cables and suitable drives - see linked products below.

Manufacturers Part Number - NX420EAJR7001

Made by Parvex and Parker SSD Drives and the same as items sold under many other names including nameplates marked:- Parvex, GEC, Alstom and Eurotherm Drives.

Download the Parvex NX420EAJ Datasheet and Drawing using the links below:-
