Marelli - 230V Single Phase Motor 0.12kW (0.16HP) Cap Start 4P 63F B35 Foot/Flange

MLA63MA4 B35

Order Code: 23935

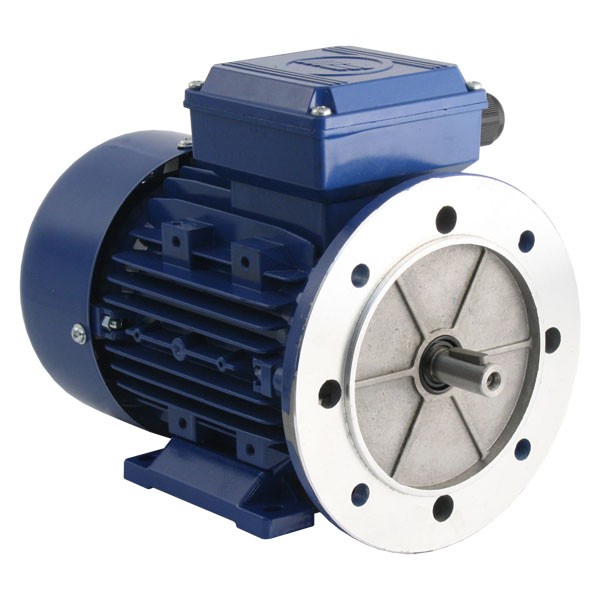

Photo of Marelli - 230V Single Phase Motor 0.12kW (0.16HP) Cap Start 4P 63F B35 Foot/Flange
No Longer Available
This item is no longer available from us. Alternatives may be available - see linked products below.

Brand: Marelli, Range: MLA Single Phase Cap Start

Marelli 63 Frame - 0.12kW (0.16HP) Single Phase Capacitor Start/Run 4 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 0.12kW x 1350RPM.

Full Load Current  -xxA.
Starting Current is xxA.

Mounting is B35 Foot and Flange Mounting.
Foot mount on 7mm holes at 100mm wide x 80mm centres 40mm back from shaft shoulder.
Flange mount on 4 x 10mm holes at 115mm PCD with 95mm diameter spigot in the 140mm diameter flange.
Shaft is 11mm dia x 23mm long with 4mm wide key.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - MLA63MA4 B35
