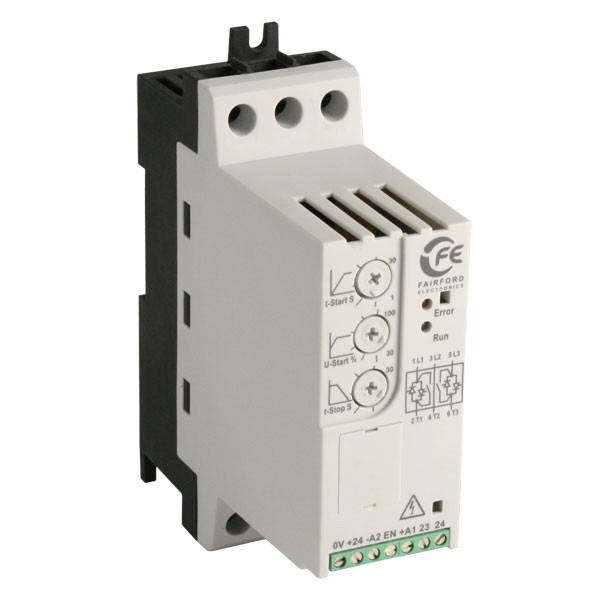

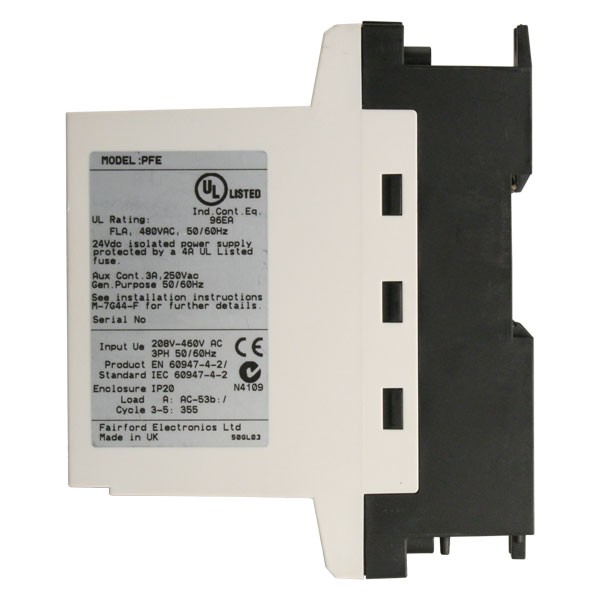

Fairford Electronics PFE-04 Internally Bypassed Soft Starter for a 400V 3 Ph motor up to 1.5kW at 3.6A.
*Last unit available from stock, newer vesrion available*

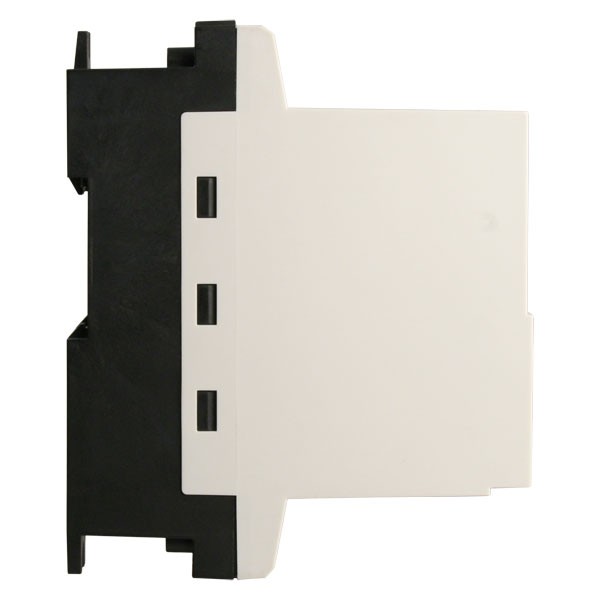

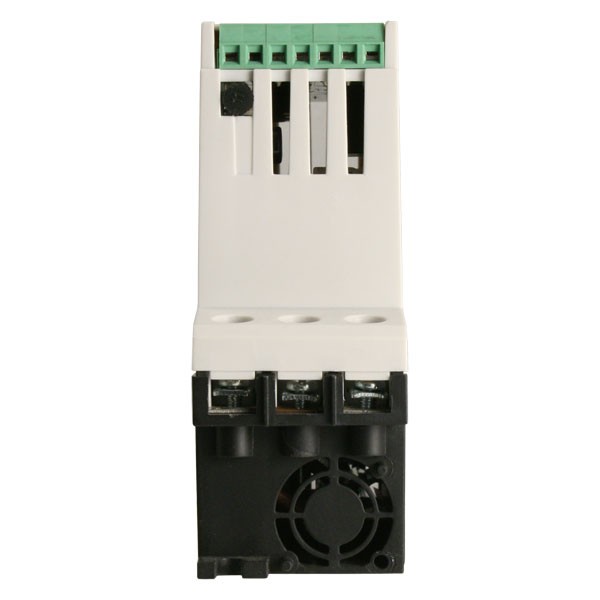

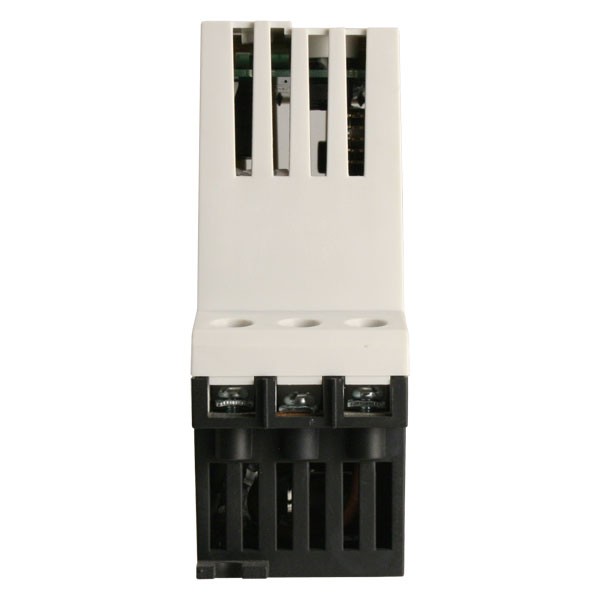

Size 1: 45mm Wide x 120mm Deep x 140mm high. IP20.
Rated to suit motors and Trip Class Ratings:
1.5kW, 3.6A at 400V - Trip Class 10, 5 starts per hour
(see Trip Class Guide below for definitions)
Input Voltage - 230-460Vac 3 Phase +10% -15% at 50/60Hz ±2%.
Overload:- 300% x 5 seconds at standard rating.
Start Time: 1-30s
Stop Time: 0-30s
Features include:
Bypass Contactor.
Pedestal Voltage:- adjustable from 30% for standard rating to 100% for high breakaway loads.
Requires 24V Control Supply - see linked products below.

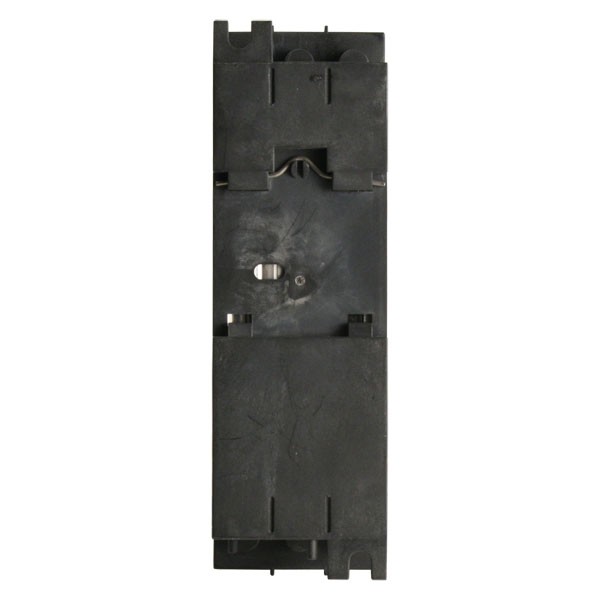

Wall mount in clean environment, onto symmetrical DIN rail or cubicle mount.
Rated at 40C Ambient.
Full part number is PFE-04. Sometimes specified as PFE04, PFE-4 or PFE4.
