Condition: New with Warranty Brand: Radio-Energie, Range: Tachogenerators

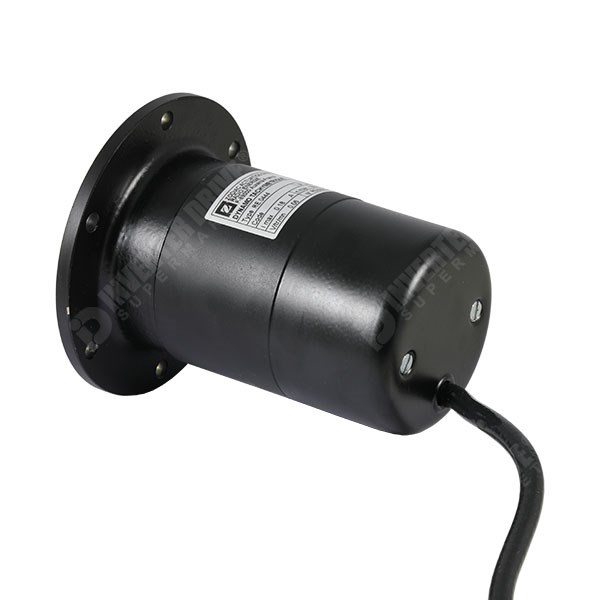

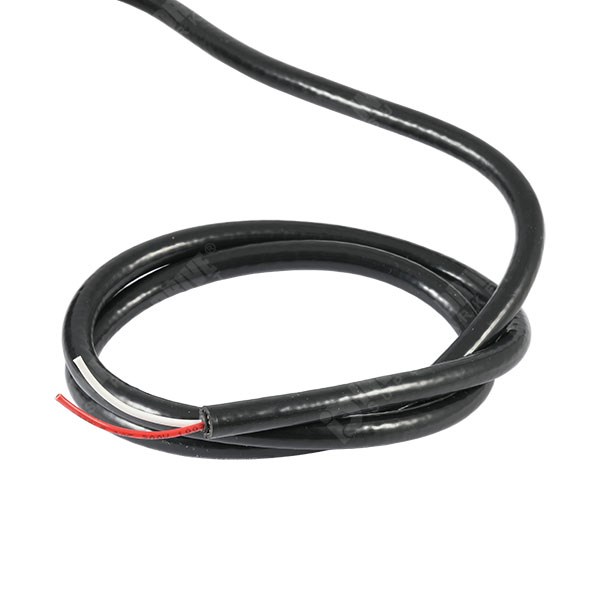

Radio Energie REO444N Tacho with one DC signal at 60V/1000RPM (0.06V/RPM). This is the light construction type with flying lead and no terminal box. Provides accurate feedback of shaft speed for closed loop variable speed control systems, monitoring and indication.

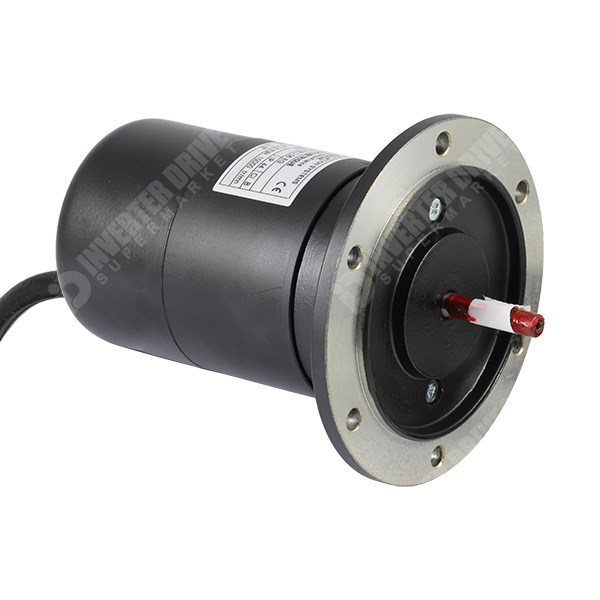

Mounting: B5, Industry Standard Flange Mount on 6 x 6.5mm holes equispaced on 100mm PCD with 85mm diameter register in the 115mm diameter flange. Shaft: 7mm diameter x 30mm long with 2mm key. Enclosure Rating: IP44 Maximum Speed: 10,000RPM Electrographite Brushes (EG)
Part number: RE.0444N B 1X60 EG IP44 7X30 Sometimes specified as RE0444N1B 0.06 EG 60V/1000RPM, REO444N B 1X60 EG IP44 7X30, RE.O444N, REO 444N and as a Tacho, Radio Energy, Tacho-Generator or Tachogenerator. Code: 0000001 Manufacturer: Radio Energie
See the Data Sheet linked below:
0002607
Order code: 30972
1 in stock
2+ normally 5-7 days
