Condition: New with Warranty Brand: Industrial Encoders, Range: 110HA

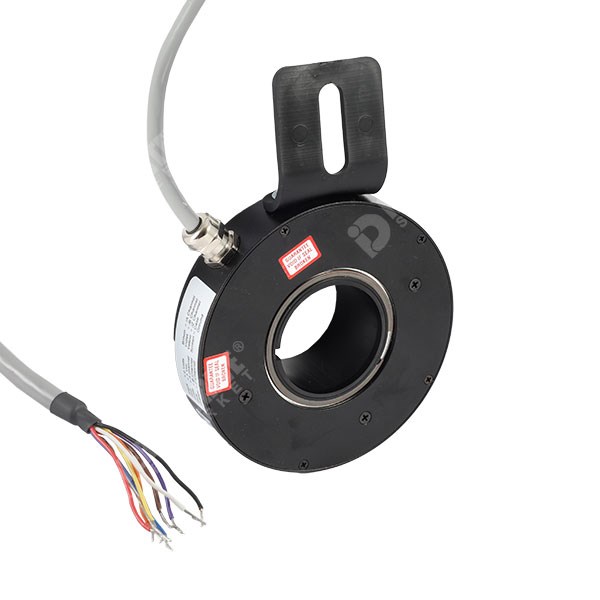

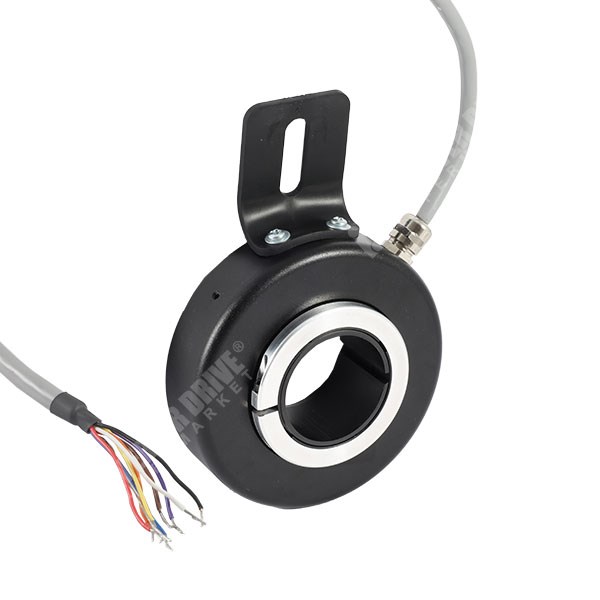

Industrial Encoders 43mm Hollow Shaft 2048ppr Incremental Optical Encoder at TTL/HTL level.
Rotation Counts: 2048ppr. Signals: HTL or TTL A+, B+, Z+, A-, B-, Z- push/pull, TTL at 5V or HTL at 11V to 24V. Supply: 5V to 24V DC. TTL RS422 compatible with line driver when 5V applied as the power supply, or HTL to 24V. Pulse Frequency: 200kHz maximum. Maximum Speed: 6000RPM. Example Motor Limit: 2928RPM per 100kHz of encoder card capability. Load Current: 100mA maximum without load. Connection: Via 2m screened cable proof against oil and salt water.

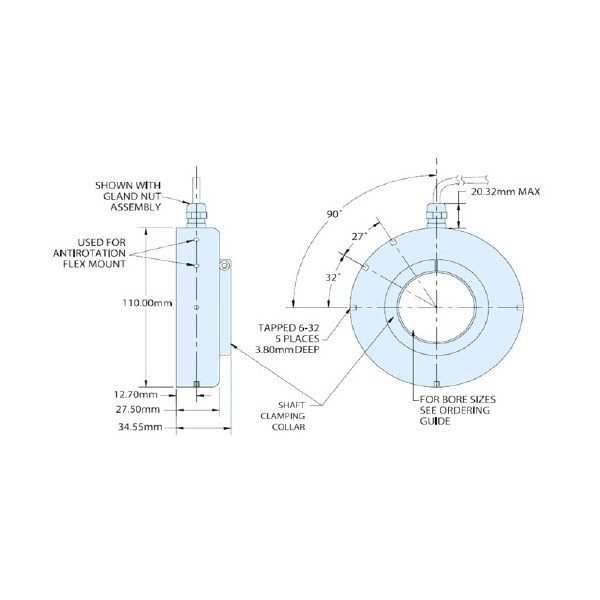

Dimensions: 110mm diameter body x 34.5mm deep overall. Shaft: 43mm diameter hollow shaft. Mounting: Via 1 x slot and clamp to shaft. Weight: 1kg Protection Rating: IP50. Operating Temperature: 0C to +100C Customs code: 8503009999
Part number: 110HA-43-008D2DRU-2048.
Download the drawing and data sheet from the links below...
