TEC TDi20 AC Inverter Drive (VFD): 0.37–110kW, 230V & 400V IP20
A technical overview of the complete TEC TDi20 AC inverter drive range. Full power ratings and supply variants are shown below, along with key features, dimensions, useful downloads, and direct links to individual product listings.

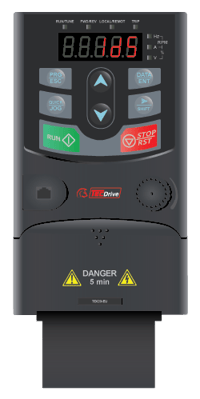

TEC Tdi20 (Frame Size 1)TEC TDi20 AC Inverter Drive Overview
- kW Rating: 0.37kW to 110kW
- Mains Supply: 230V single-phase or 400V three-phase versions available
- Motor Control: V/F or Sensorless Vector Control for Standard AC Induction Motors
- STO: Dual Channel STO fitted as standard on all units
The TEC TDi20 is a compact, IP20-rated AC inverter drive designed to deliver reliable and efficient motor control across a wide range of industrial applications. With stock availability up to 110kW, the TDi20 provides a flexible and cost-effective solution for both small and large installations.
The range is available in 230V single-phase models up to 2.2kW and 400V three-phase models up to 110kW, allowing a single inverter platform to be used across multiple power ratings and supply types. The TDi20 supports standard AC induction motors and offers V/F or sensorless vector control for smooth, dependable operation.
Simple commissioning, compact dimensions, and built-in protection features make the TDi20 suitable for pumps, fans, conveyors, mixers, and general industrial machinery. Dual-channel STO is fitted as standard on all models, helping meet modern safety requirements while ensuring long service life and dependable performance.
The TDi20 is available from stock ready to dispatch for next day UK delivery
TEC TDi20 0.37kW to 2.2kW (230V and 400V) - Ratings and Dimensions
Rating Table - Frame Size 1 and 2
| Voltage |
kW Rating |
0.37kW |
0.75kW |
1.5kW |
2.2kW |
| 230V Single Phase |
Rated Current |
2.5A |
4.2A |
7.5A |
10A |
| Frame Size |
1 |
1 |
2 |
2 |
| 400V Three Phase |
Rated Current |
- |
2.5A |
4.2A |
5.5A |
| Frame Size |
- |
2 |
2 |
2 |
Overall Dimensions - Frame Size 1 and 2
| Frame Size |
1 |
2 |
| Height (H) |
160mm |
185mm |
| Width (W) |
80mm |
80mm |
| Depth (D) |
124mm |
141mm |
What's Included (0.37kW to 2.2kW)
Hardware Features - Frame Size 1 and 2
| Frame Size |
1 |
2 |
Overview |
| Internal Brake Switch |
Yes |
Yes |
Brake Switch is fitted on all units as standard |
| EMC Filter |
Yes |
Yes |
External Filter supplied which fixes below the unit on the mains input |
| STO |
Yes |
Yes |
A dual channel STO is fitted on all units. Remove STO links to enable STO |
TEC TDi20 4kW to 22kW (400V) - Ratings and Dimensions
Rating Table - Frame Size 3, 4 and 5
| kW Rating |
4kW |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
| Rated Current |
9.5A |
14A |
18.5A |
25A |
32A |
38A |
45A |
| Frame Size |
3 |
3 |
4 |
4 |
4 |
5 |
5 |
Overall Dimensions - Frame Size 3, 4 and 5
| Frame Size |
3 |
4 |
5 |
| Height (H) |
256mm |
320mm |
341mm |
| Width (W) |
146mm |
170mm |
200mm |
| Depth (D) |
167mm |
196mm |
184mm |
TEC TDi20 30kW to 110kW (400V) - Rating and Dimensions
Rating Table - Frame Size 7, 8 and 9
| kW Rating |
30kW |
37kW |
45kW |
55kW |
75kW |
90kW |
110kW |
| Rated Current |
60A |
75A |
92A |
115A |
150A |
180A |
215A |
| Frame Size |
6 |
6 |
7 |
7 |
7 |
8 |
8 |
Overall Dimensions - Frame Size 7, 8 and 9
| Frame Size |
6 |
7 |
8 |
| Height (H) |
400mm |
560mm |
554mm |
| Width (W) |
250mm |
282mm |
338mm |
| Depth (D) |
202mm |
238mm |
329mm |
What's Included (4kW to 110kW)
Hardware Features - Frame Size 3 and above
| Frame |
3 |
4 |
5 |
6 |
7 |
8 |
Overview |
| Internal Brake Switch |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Fitted on all units all the way up to 110kW |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Internal Filter. Can be disconnected from earth if required |
| STO |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Dual channel STO is available on all units. Remove Links to enable |
TDi20 Keypad Functionality
The TEC TDi20 Keypad differs slightly depending on the rating of the unit. The functionality is the same but arrangement of the keys and Potentiometer is slightly different.
On models up to 2.2 kW, the keypad is fixed as standard; however, an additional door-mounted alternative is available if required.
On models 4kW and above the Keypad is removable and can be panel mounted if required.
TDi20 Control Terminals details and Default Wiring diagram

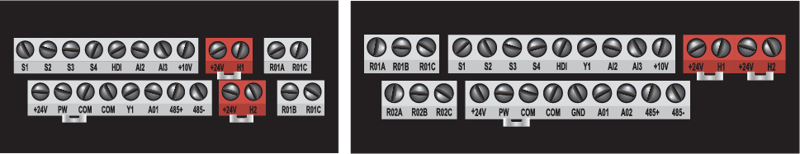

The control terminals are slightly different with units 4kW and above having an extra Digital Output and Change-over relay
When the TDi20 is powered up initially it is ready to be operated from the Keypad. This can be easily changed. See our Easy Start Guides for instructions on how to do this.
Below is a wiring diagram for basic operation with default parameter settings. For more details see the Easy Start Guide which is available as a download
TDi20 Installation Requirements
All units are IP20 and must be mounted in a suitable enclosure with adequate ventilation. Any dust must be non-conducting otherwise this will damage the unit.
TDi20 Options and Accessories
The TDi20 does not have an option slot. For a TEC AC Inverter with this functionality please see the Tdi350 range
Tdi20 Manual Downloads
TEC issue a User Manual for the TDi20. For an easy to use step by step guide to wiring and commissioning please see our Easy Start Guide
Part Numbers
Part Number Explanation
| Example |
Full Part Number |
Range |
kW Rating |
Overload |
Voltage Class |
Brake Switch |
STO |
| 2.2kW Single Phase |
TDI20-2R2G-S2-EU |
TDI20 |
2R2 |
G |
S2 |
>blank< |
EU |
| 11kW Three Phase |
TDI20-011G-4-EU |
TDI20 |
011 |
G |
4 |
>blank< |
EU |
| 75kW Three Phase |
TDI20-075G-4-B-EU |
TDI20 |
075 |
G |
4 |
B |
EU |
| |
|
|
2R2= 2.2kW
011 = 11kW
075 = 75kW
|
G = Constant Torque |
S2 = Single Phase 230V
4 = Three Phase 400V
|
B = Brake Switch (only indicated on units 45kW and above) |
EU = With STO |
