WEG CFW500 IP20 AC Inverter Drive (VFD) - 0.18kW to 110kW
A technical overview of the complete WEG CFW500 inverter drive range. Individual power ratings and supply variants are given along with key features, useful downloads and links to individual listings
WEG CFW500 Product Overview
The WEG CFW500 IP20 AC inverter drive range is available from 0.18kW to 110kW in 230V single-phase and 400V three-phase versions. This modular VFD platform offers V/F and sensorless vector control, flexible control module options, optional STO, and a wide choice of accessories for industrial motor control applications.
- 0.18kW to 110kW
- 230V single-phase and 400V three-phase models
- V/F or Sensorless Vector control of a Standard AC Induction Motor
- Modular type with a large range of Control Modules for use with separate Power Modules
Details Included:
The CFW500 is available for immediate dispatch from a large UK stock for next day delivery.
WEG CFW500 Ratings and Output Current: 0.18kW to 15kW
Details below are for 2 different voltage ratings 230V Single phase mains supply (220-240Vac) or 400V Three phase mains supply (380-480Vac). Please ensure you select the WEG CFW500 to match your Voltage supply as well as the Voltage and Current rating of your three phase motor. Please note that 0.75kW, 1.5kW and 2.2kW are available in 2 frame sizes ( A or B) depending on whether dynamic braking is required.
230V Single Phase - 150% Overload
| kW Rating |
0.18kW |
0.37kW |
0.75kW |
1.5kW |
1.5kW |
2.2kW |
| Output Current |
1.6A |
2.6A |
4.3A |
7A |
7.3A |
10A |
| Frame Size |
A |
A |
A |
A |
B |
B |
400V Three Phase - 150% Overload
| kW Rating |
0.18kW |
0.37kW |
0.75kW |
0.75kW |
1.5kW |
1.5kW |
2.2kW |
2.2kW |
3.7kW |
5.5kW |
7.5kW |
11kW |
15kW |
| Output Current |
1A |
1.6A |
2.6A |
2.6A |
4.3A |
4.3A |
6.1A |
6.5A |
10A |
14A |
16A |
24A |
31A |
| Frame Size |
A |
A |
A |
B |
A |
B |
A |
B |
B |
C |
C |
D |
D |
Hardware Features - 0.18kW to 15kW
| Frame Size |
A |
B |
C |
D |
Overview |
| Brake Switch |
No |
Yes |
Yes |
Yes |
Not available on frame size A |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
Keeps electrical interference to a minimum and is required for CE and UKCA certification |
| Earth Clamp |
Yes |
Yes |
Yes |
Yes |
Supplied with all units for cable support and good EMC wiring practices |
| STO |
No* |
No* |
No* |
No* |
*Ávailable as an optional module that can be fitted on the top of the unit |
WEG CFW500 Dimensions: 0.18kW to 15kW
Frame Size A, B and C can be DIN mounted if required
Dimension Table Frames A-D
| Frame |
A |
B |
C |
D |
| H - Height (mm) |
189 |
199 |
210 |
307 |
| W - Width (mm) |
75 |
100 |
135 |
180 |
| D - Depth (mm) |
150 |
160 |
165 |
167 |
WEG CFW500 Ratings: 18.5kW to 110kW
At 30kW and above the CFW500 is dual rated; 1 unit, 2 ratings depending on the overload required for your application. 18.5kW and 22kW is not dual rated therefore the rating is the same at the different overloads.
Rating Information, 150% Overload
| kW Rating |
18.5kW |
22kW |
30kW |
37kW |
45kW |
55kW |
75kW |
90kW |
| Output Current |
39A |
49A |
61A |
73A |
88A |
115A |
142A |
180A |
| Frame Size |
E |
E |
F |
F |
F |
G |
G |
G |
Rating Information, 110% Overload
| kW Rating |
18.5kW |
22kW |
37kW |
45kW |
55kW |
75kW |
90kW |
110kW |
| Output Current |
39A |
49A |
77A |
88A |
105A |
142A |
180A |
211A |
| Frame Size |
E |
E |
F |
F |
F |
G |
G |
G |
Hardware Features - 18.5kW to 110kW
| Frame |
E |
F |
G |
Overview |
| Brake Switch |
Yes |
Yes |
Yes |
Available on all units as standard |
| EMC Filter |
Yes |
Yes |
Yes |
Keeps electrical interference to a minimum and is required for CE and UKCA certification |
| Earth Clamp |
Yes |
Yes |
Yes |
A gland box is fitted on F and G frames as standard for cable management |
| STO |
No* |
No* |
No* |
*Available as an Option Module. Fits internally on frames F and G |
WEG CFW500 Dimensions: 18.5kW to 110kW
Frame sizes F and G are fitted with internal DC Reactors which are included in the dimensions below. Frame sizes F and G can also be through-panel mounted, ie the heatsink can be positioned behind the panel backplate for separate ventilation purposes. This is useful in harsh environments when the CFW500 electronic components require high levels of protection without compromising heatsink cooling.
Dimension Table Frames E-G
| Frame |
E |
F |
G |
| H - Height (mm) |
350 |
550 |
675 |
| W - Width (mm) |
220 |
300 |
335 |
| D - Depth (mm) |
192 |
254 |
314 |

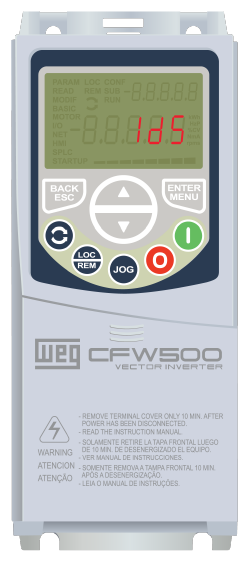

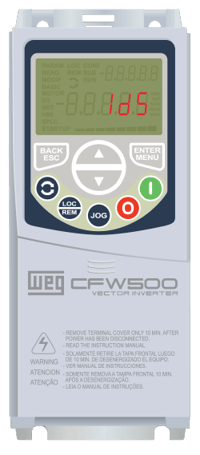

WEG CFW500 Keypad Functionality
The CFW500 Keypad has a Single Line LCD display with helpful indicators and local control keys. A separate Keypad for door mounting is available if required
WEG CFW500 Control Terminal details and default wiring diagram
The CFW500 has a wide range of different control modules with varying I/O and communications. In this section we have chosen the WEG IOS module to demonstrate the functionality of the product. The IOS module is also the unit that we offer when supplying the CFW500 as a complete AC Inverter (AC Power Module and I/O Module). It is worth noting that the CFW500 can be operated from the Keypad only, if a Control Module is not fitted.
The CFW500 can be easily switched between local and remote control using the Keypad. When in remote control the standard IOS module can be wired as follows for the most basic speed control. We would always recommend that the Easy Start Guide is used to set the key parameters within the CFW500 to ensure correct operation before use.
The above details are for the standard IOS control module; please see below the alternative modules available if preferred.
Control Module Types
| Control Module |
IOR |
IOD |
CUSB |
CRS232 |
CCAN |
CRS485-B |
CPDP |
CEMB-TCP |
CEPN-IO |
CETH-IP |
ENC500 |
| Analogue Inputs |
1 |
1 |
1 |
1 |
1 |
2 |
1 |
1 |
1 |
1 |
1 |
| Analogue Outputs |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 10V Supply |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
No |
No |
No |
No |
No |
| Digital Inputs |
5 |
8 |
4 |
2 |
2 |
4 |
2 |
2 |
2 |
2 |
2 |
| Digital Outputs |
1 |
4 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 24V Supply |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Relays |
4 (CO) |
1 (CO) |
1 (CO) |
1 (CO) |
1 (CO) |
2 (CO) |
1 (CO) |
1 (NO) |
1 (NO) |
1 (NO) |
3 (NO) |
| RS485 (Twin Wire) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Additional Function |
None |
None |
PC Port |
RS232 |
CANOpen |
RS485 |
Profibus |
Modbus TCP |
Profinet |
Ethernet IP |
Encoder |
| Comms / PC Port |
N/A |
N/A |
Mini-B |
9 Pin D Type |
Screw (5) |
Std Terminals |
9 Pin D Type |
Ethernet |
Ethernet |
Ethernet |
Std Terminals |
CFW500 Installation Guidelines
The units mentioned on this page are IP20 therefore they must be mounted in a suitable enclosure with adequate ventilation. Any dust must be non-conducting otherwise this will damage the unit. Up to 15kW the CFW500 is also available in a IP66 format should a higher IP rating be required. Details of the CFW500 IP66 are also available. For units rated 30kW and above (Frame Size F and G) through-panel mounting can be done. In this instance the cooling for the heatsink and the control circuits are separate. No additional mountings are required for through-panel mounting (flange mounting).
CFW500 Options and Accessories
The alternative Control modules are given below. Please note that these modules are alternatives to the IOS module as there is only 1 slot available for 1 control module and 1 slot for STO module.
CFW500 Manuals
WEG support the CFW500 with separate Hardware and Firmware manuals. The firmware manual supports all the different Control Modules. For an easy to understand step by step guide use our Easy Start Guide for basic wiring and initial programming
CFW500 (IP20) Part Numbers
Part Number Explanation
| Part Number Format |
AC Inverter |
Range |
Frame |
Current Rating |
Input Phases |
Voltage |
Brake Switch |
IP Rating |
EMC Filter |
Version |
| CFW500E49P0T4DB20C3G2 |
CFW |
500 |
E |
XXXX |
T |
4 |
DB |
20 |
C3 |
G2 |
| Part Number Example |
- |
- |
Frame E |
- |
3 Phase |
400V Nominal |
Fitted |
IP20 |
C3 Filter |
Gen 2 |
Single Phase Units
| Description |
Part Number - Power Module and IOS Control Module |
| 0.18kW, 1.6A (150%), No Brake |
CFW500A01P6S2NB20C2G2 |
| 0.37kW, 2.6A (150%), No Brake |
CFW500A02P6S2NB20C2G2 |
| 0.75kW, 4.3A (150%), No Brake |
CFW500A04P3S2NB20C2G2 |
| 1.5kW, 7A (150%), No Brake |
CFW500A07P0S2NB20C3G2 |
| 1.5kW, 7.3A (150%), with Brake |
CFW500B07P3S2DB20C2G2 |
| 2.2kW, 10A (150%), with Brake |
CFW500B10P0S2DB20C2G2 |
Three Phase Units
| Description |
Part Number - Power Module and IOS Control Module |
Part Number - Power Module only |
| 0.18kW, 1A (150%), No Brake |
CFW500A01P0T4NB20C2G2 |
CFW500A01P0T4NB20C2H00G2 |
| 0.37kW, 1.6A (150%), No Brake |
CFW500A01P6T4NB20C2G2 |
CFW500A01P6T4NB20C2H00G2 |
| 0.75kW, 2.6A (150%), No Brake |
CFW500A02P6T4NB20C2G2 |
CFW500A02P6T4NB20C2H00G2 |
| 0.75kW, 2.6A (150%), with Brake |
CFW500B02P6T4DB20C2G2 |
CFW500B02P6T4DB20C2H00G2 |
| 1.5kW, 4.3A (150%), No Brake |
CFW500A04P3T4NB20C2G2 |
CFW500A04P3T4NB20C2H00G2 |
| 1.5kW, 4.3A (150%), with Brake |
CFW500B04P3T4DB20C2G2 |
CFW500B04P3T4DB20C2H00G2 |
| 2.2kW, 6.1A (150%), No Brake |
CFW500A06P1T4NB20C3G2 |
CFW500A06P1T4NB20C3H00G2 |
| 2.2kW, 6.5A (150%), with Brake |
CFW500B06P5T4DB20C2G2 |
CFW500B06P5T4DB20C2H00G2 |
| 3.7kW, 10A (150%), with Brake |
CFW500B10P0T4DB20C3G2 |
CFW500B10P0T4DB20C3H00G2 |
| 5.5kW, 14A (150%), with Brake |
CFW500C14P0T4DB20C2G2 |
CFW500C14P0T4DB20C2H00G2 |
| 7.5kW, 16A (150%), with Brake |
CFW500C16P0T4DB20C2G2 |
CFW500C16P0T4DB20C2H00G2 |
| 11kW, 24A (150%), with Brake |
CFW500D24P0T4DB20C3G2 |
CFW500D24P0T4DB20C3H00G2 |
| 15kW, 31A (150%), with Brake |
CFW500D31P0T4DB20C3G2 |
CFW500D31P0T4DB20C3H00G2 |
| 18.5kW, 39A (150%), with Brake |
CFW500E39P0T4DB20C3G2 |
CFW500E39P0T4DB20C3H00G2 |
| 22kW, 49A (150%), with Brake |
CFW500E49P0T4DB20C3G2 |
CFW500E49P0T4DB20C3H00G2 |
| 30kW, 61A (150%) or 37kW, 77A (110%), with Brake |
CFW500F77P0T4DB20C3G2 |
CFW500F77P0T4DB20C3H00G2 |
| 37kW, 73A (150%) or 45kW, 88A (110%), with Brake |
CFW500F88P0T4DB20C3G2 |
CFW500F88P0T4DB20C3H00G2 |
| 45kW, 88A (150%) or 55kW, 105A (110%), with Brake |
CFW500F0105T4DB20C3G2 |
CFW500F0105T4DB20C3H00G2 |
| 55kW, 115A (150%) or 75kW, 142A (110%), with Brake |
CFW500G0142T4DB20C3G2 |
CFW500G0142T4DB20C3H00G2 |
| 75kW, 142A (150%) or 90kW, 180A (110%), with Brake |
CFW500G0180T4DB20C3G2 |
CFW500G0180T4DB20C3H00G2 |
| 90kW, 180A (150%) or 110kW, 211A (110%), with Brake |
CFW500G0211T4DB20C3G2 |
CFW500G0211T4DB20C3H00G2 |
Prepared by Inverter Drive Supermarket Ltd: Specification verified against WEG CFW500 Hardware and Firmware Manuals; Last reviewed Jan 2026
