Yaskawa GA700 AC Inverter Drive Range Overview - 0.55kW to 355kW
A technical overview of the complete Yaskawa GA700 VFD range. Individual power ratings and supply variants are given along with key features, useful downloads and links to individual listings
Yaskawa GA700 AC Inverter Drive Product Overview

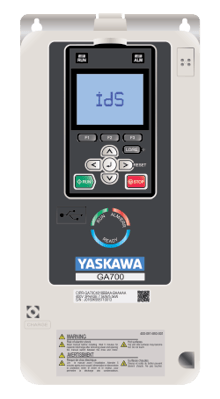

Yaskawa GA700 (Size 1B)
- Power Rating: 0.55kW to 355kW 400V three-phase
- Control Type: V/F; Sensorless Vector and Closed Loop Vector with encoder feedback option card
- Motor Types: Standard AC Induction, PM Synchronous and Synchronous Reluctance Motors
- EMC Filter: Integrated on all units (supplied disabled as standard; can be enabled via EMC screw for CE/UKCA installation requirements)
The Yaskawa GA700 is a high-performance AC inverter drive for demanding industrial motor control applications. Designed for 400V three-phase systems, the GA700 range covers outputs up to 355kW and offers a flexible, dual-rated specification for Heavy Duty or Normal Duty operation. For precision control, the GA700 supports closed-loop vector control when fitted with an encoder feedback option card, delivering excellent stability across dynamic loads. With 200% starting torque and a wide 1500:1 speed range, it provides a true single-inverter solution for applications that require strong low-speed torque and smooth control over a broad operating range. Built for system integration and expansion, the GA700 can be fitted with up to three option cards, allowing customisation for feedback, communications and application requirements.
Yaskawa GA700 is stocked in UK and available for next day delivery
Yaskawa GA700 Rating Table (0.55kW to 45kW)
The GA700 is available from us suitable for a 400V Three phase mains supply (380-480Vac). Please ensure you select the GA700 to match your Voltage supply as well as the Voltage and Current rating of your three phase motor. The GA700 is dual rated; one Unit - 2 ratings, depending on the overload required. For example a 4kW/5.5kW GA700 is rated for 4kW with a 150% Overload (Heavy Duty) and 5.5kW with a 110% Overload (Normal duty)
Rating Table 150% Overload
| kW Rating |
0.55kW |
1.1kW |
1.5kW |
2.2kW |
3kW |
4kW |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
30kW |
37kW |
45kW |
| Output Current Rating |
1.8A |
3.4A |
4.8A |
5.5A |
7.2A |
9.2A |
14.8A |
18A |
24A |
31A |
39A |
45A |
60A |
75A |
91A |
| Size Reference |
4002 |
4004 |
4005 |
4007 |
4009 |
4012 |
4018 |
4023 |
4031 |
4038 |
4044 |
4060 |
4075 |
4089 |
4103 |
Rating Table 110% Overload
| kW Rating |
0.75kW |
1.5kW |
2.2kW |
3kW |
4kW |
5.5kW |
7.5kW |
11kW |
15kW |
18.5kW |
22kW |
30kW |
37kW |
45kW |
55kW |
| Output Current Rating |
2.1A |
4.1A |
5.4A |
7.1A |
8.9A |
11.9A |
17.5A |
23.4A |
31A |
38A |
44A |
59.6A |
74.9A |
89.2A |
103A |
| Size Reference |
4002 |
4004 |
4005 |
4007 |
4009 |
4012 |
4018 |
4023 |
4031 |
4038 |
4044 |
4060 |
4075 |
4089 |
4103 |
Yaskawa GA700 Dimensions (0.55kW to 45kW)
We offer the GA700 in a single unit wall mounted format. Units 4060 (size reference) and above are fitted with a DC reactor which is included in the given dimensions. Dimensions are in mm
| Size Reference |
Height (H) |
Width (W) |
Depth (D) |
Drawing / Frame |
| 4002 / 4004 / 4005 |
260 |
140 |
176 |
1 |
| 4007 / 4009 / 4012 / 4018 / 4023 |
260 |
140 |
211 |
1 |
| 4031 / 4038 |
300 |
180 |
202 |
2 |
| 4044 |
350 |
220 |
227 |
3 |
| 4060 |
350 |
220 |
246 |
3 |
| 4075 |
400 |
240 |
280 |
4 |
| 4089 / 4103 |
450 |
255 |
280 |
5 |
What's Included
What's Included - Hardware Features
| Frame |
1 |
2 |
3 |
4 |
5 |
Overview |
| Brake Switch |
Yes |
Yes |
Yes |
Yes |
Yes |
Internal brake switch is fitted as standard. For dynamic braking a braking resistor is required |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
Yes |
The unit is supplied with the EMC Filter disabled. This can be changed by moving the EMC screw |
| Earth Clamp |
No |
No |
No |
No |
No |
Earthing point on the chassis is available for the motor cable screen |
| STO |
Yes |
Yes |
Yes |
Yes |
Yes |
Dual channel STO is fitted to all units as standard. Remove Links to enable |
Yaskawa GA700 Rating Table (55kW to 355kW)
Rating Table 150% Overload
| Power Rating |
55kW |
75kW |
90kW |
110kW |
132kW |
160kW |
200kW |
220kW |
250kW |
315kW |
| Output Current Rating |
112A |
150A |
180A |
216A |
260A |
304A |
371A |
414A |
453A |
605A |
| Size Reference |
4140 |
4168 |
4208 |
4250 |
4296 |
4371 |
4389 |
4453 |
4568 |
4675 |
Rating Table 110% Overload
| Power Rating |
75kW |
90kW |
110kW |
132kW |
160kW |
200kW |
220kW |
250kW |
315kW |
355kW |
| Output Current Rating |
140A |
168A |
208A |
250A |
296A |
371A |
389A |
453A |
568A |
675A |
| Size Reference |
4140 |
4168 |
4208 |
4250 |
4296 |
4371 |
4389 |
4453 |
4568 |
4675 |
Yaskawa GA700 Dimensions (55kW to 355kW)
Dimensions are in mm. Drawings are not to scale with reference to each other.
| Size Reference |
Height (H) |
Width (W) |
Depth (D) |
Drawing / Frame |
| 4140 / 4168 |
543 |
264 |
335 |
6 |
| 4208 / 4250 / 4296 |
700 |
312 |
420 |
7 |
| 4371 / 4389 |
800 |
440 |
472 |
8 |
| 4453 / 4568 / 4675 |
1136 |
510 |
480 |
9 |
What's Included - Hardware Features
| Frame |
6 |
7 |
8 |
9 |
Overview |
| Brake Switch |
Yes |
No |
No |
No |
On the larger Frame sizes an External brake unit can be used if required |
| EMC Filter |
Yes |
Yes |
Yes |
Yes |
The unit is supplied with the EMC Filter disabled. To change this the EMC screw must be moved |
| Earth Clamp |
No |
No |
No |
No |
Earthing point on the Inverter chassis is available to earth the motor cable screen |
| STO |
Yes |
Yes |
Yes |
Yes |
Dual channel STO is fitted on all units as standard. Remove Links to enable. |
Yaskawa GA700 Keypad Overview
The GA700 has a Multi-line LCD keypad which is removable and can be panel mounted if required. The Keypad has a real time clock function and the ability to store parameters ensuring parameters can be backed up and restored easily. An alternative Bluetooth Keypad is also available
Yaskawa GA700 Control Terminal details and default wiring diagram
All Control terminals are spring loaded for ease of use. The GA700 is fitted with extensive I/O which can be further expanded using an expansion option card. Unusually the GA700 has a -10V output voltage as well as a +10V enabling forward and reverse control using only a speed potentiometer.
The wiring diagram below gives the most basic wiring configuration which is preprogrammed as default. For assistance with more complicated requirements there is an 'Application Preset' function which sets predetermined parameter values for 7 different types of application
Yaskawa GA700 Installation guidance
All units are IP20 therefore the GA700 must be mounted in a suitable enclosure with adequate ventilation. Any dust must be non-conducting otherwise this will damage the unit
Yaskawa Options and Accessories
All GA700 units can be fitted with up to 3 Option Cards. For Closed Loop Vector Control an Encoder feedback option card is required.
Yaskawa GA700 Manuals
The GA700 User Manual is a comprehensive manual that provides all installation and programming details required. There is also a short form of this manual which gives the most basic details which is useful in most instances.
Yaskawa Part Numbers
Part Number Explained
| Example |
Yaskawa Product Group |
Product Series |
Region Code |
Three Phase Voltage |
Rated Output Current |
EMC Filter |
IP Rating |
Revision |
| CIPR-GA70C4XXXBBA |
CIPR |
GA70 |
C |
4 |
XXX |
B |
B |
A |
| Explanation |
AC Inverter |
GA700 |
Europe (50Hz) |
400V Nominal |
Current Rating (110%) |
Filter Included |
IP20 |
|
Full List of Part Numbers
| Short Code |
Long Code |
Description |
| GA70C4002BBA |
CIPR-GA70C4002BBA |
Rated at 0.55kW, 1.8A (150% Overload) and 0.75kW, 2.1A (110% Overload) |
| GA70C4004BBA |
CIPR-GA70C4004BBA |
Rated at 1.1kW, 3.4A (150% Overload) and 1.5kW, 4.1A (110% Overload) |
| GA70C4005BBA |
CIPR-GA70C4005BBA |
Rated at 1.5kW, 4.8A (150% Overload) and 2.2kW, 5.4A (110% Overload) |
| GA70C4007BBA |
CIPR-GA70C4007BBA |
Rated at 2.2kW, 5.5A (150% Overload) and 3kW, 7.1A (110% Overload) |
| GA70C4009BBA |
CIPR-GA70C4009BBA |
Rated at 3kW, 7.2A (150% Overload) and 4kW, 8.9A (110% Overload) |
| GA70C4012BBA |
CIPR-GA70C4012BBA |
Rated at 4kW, 9.2A (150% Overload) and 5.5kW, 11.9A (110% Overload) |
| GA70C4018BBA |
CIPR-GA70C4018BBA |
Rated at 5.5kW, 14.8A (150% Overload) and 7.5kW, 17.5A (110% Overload) |
| GA70C4023BBA |
CIPR-GA70C4023BBA |
Rated at 7.5kW, 18A (150% Overload) and 11kW, 23.4A (110% Overload) |
| GA70C4031BBA |
CIPR-GA70C4031BBA |
Rated at 11kW, 24A (150% Overload) and 15kW, 31A (110% Overload) |
| GA70C4038BBA |
CIPR-GA70C4038BBA |
Rated at 15kW, 31A (150% Overload) and 18.5kW, 38A (110% Overload) |
| GA70C4044BBA |
CIPR-GA70C4044BBA |
Rated at 18.5kW, 39A (150% Overload) and 22kW, 44A (110% Overload) |
| GA70C4060BBA |
CIPR-GA70C4060BBA |
Rated at 22kW, 45A (150% Overload) and 30kW, 59.6A (110% Overload) |
| GA70C4075BBA |
CIPR-GA70C4075BBA |
Rated at 30kW, 60A (150% Overload) and 37kW, 74.9A (110% Overload) |
| GA70C4089BBA |
CIPR-GA70C4089BBA |
Rated at 37kW, 75A (150% Overload) and 45kW, 89A (110% Overload) |
| GA70C4103BBA |
CIPR-GA70C4103BBA |
Rated at 45kW, 91A (150% Overload) and 55kW, 103A (110% Overload) |
| GA70C4140BBA |
CIPR-GA70C4140BBA |
Rated at 55kW, 112A (150% Overload) and 75kW, 140A (110% Overload) |
| GA70C4168BBA |
CIPR-GA70C4168BBA |
Rated at 75kW, 150A (150% Overload) and 90kW, 168A (110% Overload) |
| GA70C4208BBA |
CIPR-GA70C4208BBA |
Rated at 90kW, 180A (150% Overload) and 110kW, 208A (110% Overload) |
| GA70C4250BBA |
CIPR-GA70C4250BBA |
Rated at 110kW, 216A (150% Overload) and 132kW, 250A (110% Overload) |
| GA70C4296BBA |
CIPR-GA70C4296BBA |
Rated at 132kW, 260A (150% Overload) and 160kW, 296A (110% Overload) |
| GA70C4371BBA |
CIPR-GA70C4371BBA |
Rated at 160kW, 304A (150% Overload) and 200kW, 371A (110% Overload) |
| GA70C4389BBA |
CIPR-GA70C4389BBA |
Rated at 200kW, 371A (150% Overload) and 220kW, 389A (110% Overload) |
| GA70C4453BBA |
CIPR-GA70C4453BBA |
Rated at 220kW, 414A (150% Overload) and 250kW, 453A (110% Overload) |
| GA70C4568BBA |
CIPR-GA70C4568BBA |
Rated at 250kW, 453A (150% Overload) and 315kW, 568A (110% Overload) |
| GA70C4675BBA |
CIPR-GA70C4675BBA |
Rated at 315kW, 605A (150% Overload) and 355kW, 675A (110% Overload) |
