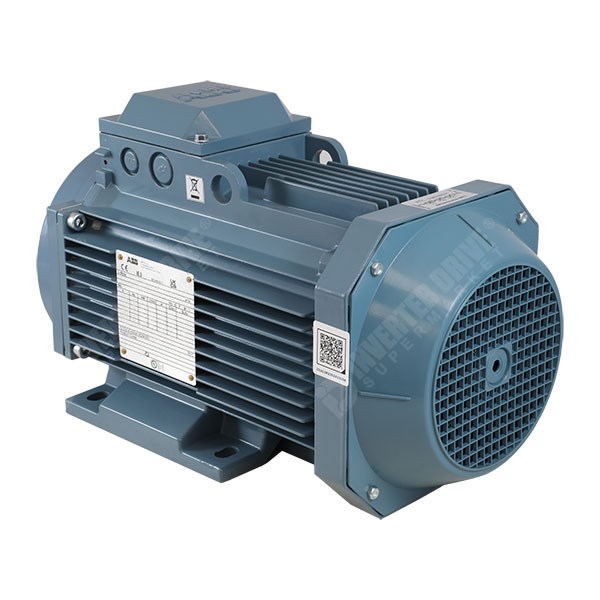

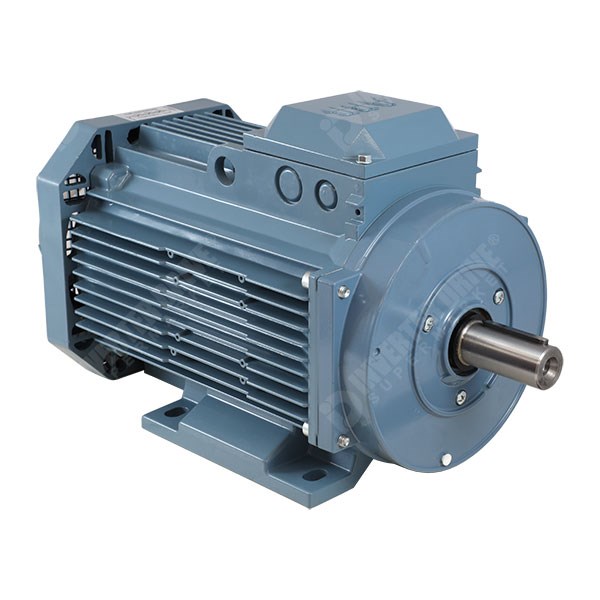

ABB IE3 2.2kW three phase Aluminium 4 pole B3 Foot mounting 100L frame AC Induction Motor for 230V or 400V 3 phase supply. Suitable for use with a Variable Frequency Inverter Drive with 3ph output.
Output: 2.2kW at 1454rpm; 400V, 50Hz 3ph.
Speed Range from an Inverter Supply: Range from 145rpm to 2029rpm for 5Hz to 70Hz, when de-rated at the lower speeds.
Constant Power Speed Range: 1450rpm to 2029 rpm continuously.

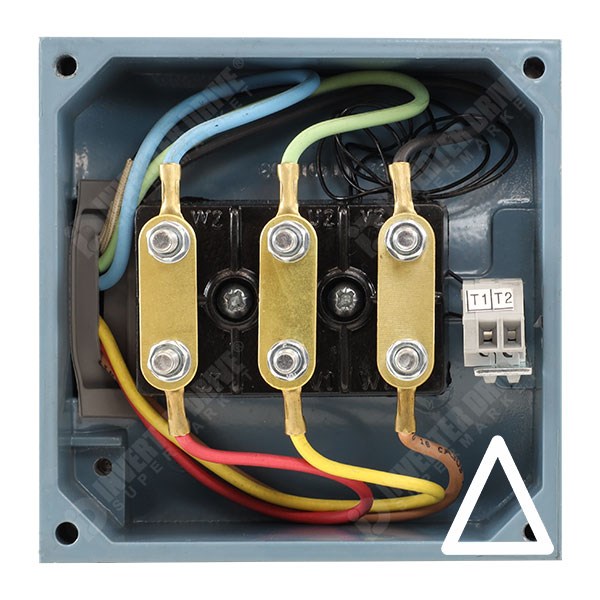

Full Load Current with links in Δ (Delta) for 230V 3ph: 7.4A.

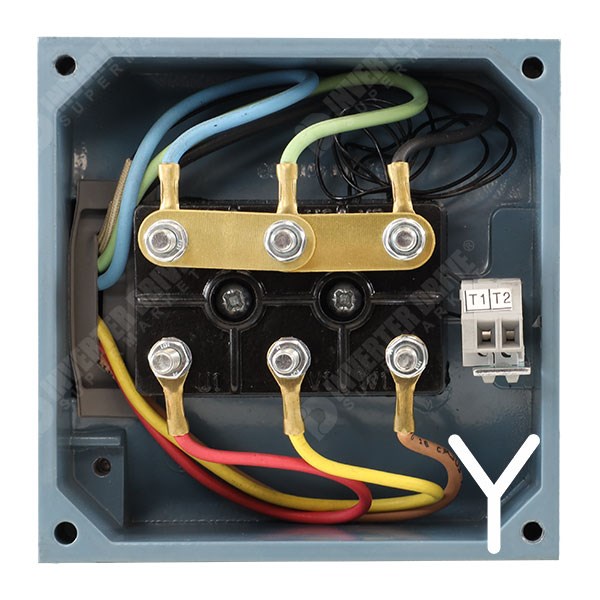

Full Load Current with links in Y (Star) for 400V 3ph: 4.3A.
Torque: 8.9Nm
Efficiency: 88.6% (IE3)
Power Factor: 0.83 when mains connected at 50Hz.
Terminal box position: Top, sides.
Enclosure rating: IP55.
Dimensions: 200mm wide x 432mm long x 237mm high overall.
Mounting: Foot mount on 12mm holes at 160mm wide x 140mm centres 63mm back from the shaft shoulder.
Shaft: 28mm diameter, 60mm long with 8mm key.
Construction: Aluminium.
Weight: 41kg.
Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: not included.
Part number: 3GAA102550-ASK.
