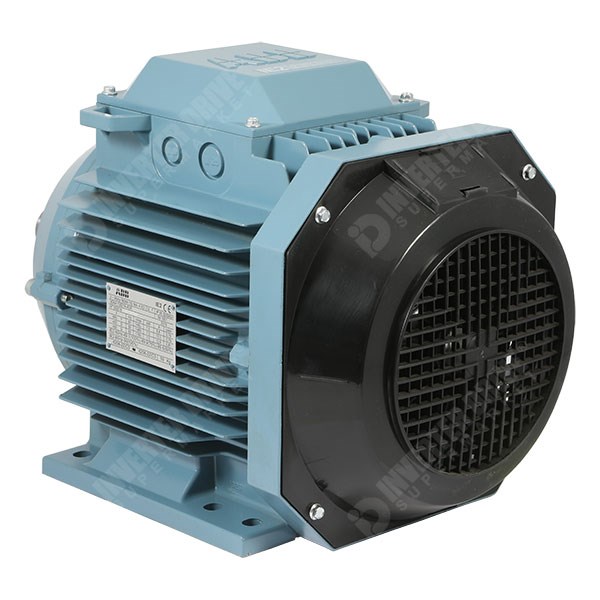

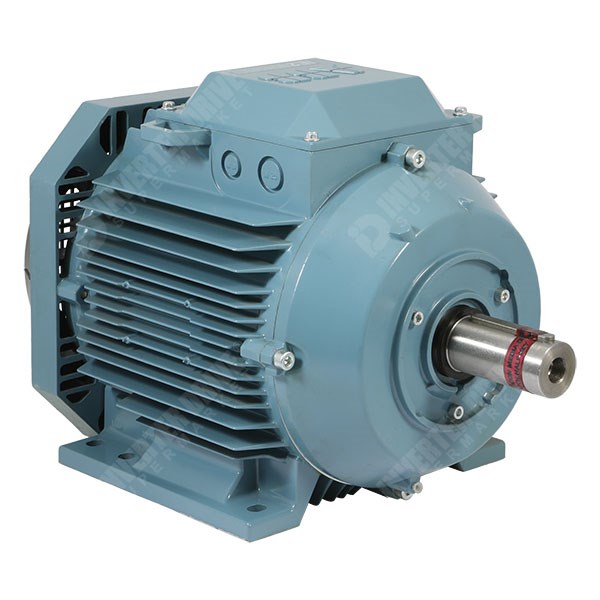

ABB IE2 5.5kW three phase 4 pole B3 Foot mounting 132M frame AC Induction Motor for 400V 3 phase supply.
Output: 5.5kW 1465rpm at 400V 50Hz
Speed Range from an Inverter Supply: From 5 Hz, 146rpm to 100Hz, 2930rpm.
If operated for long periods of time below 25Hz then the motor rating will be reduced.
Constant Power Speed Range: 1465rpm to 2930rpm continuously.

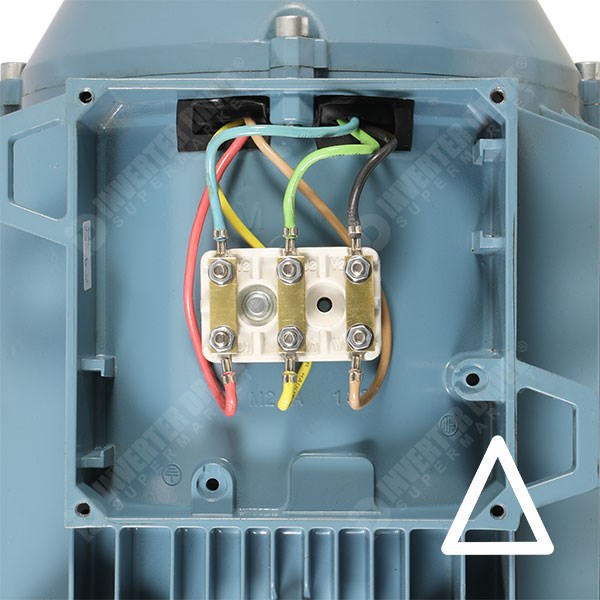

Full Load Current with links in Δ (Delta) 400V 3ph: 10.9A.
Full Load Current with links in Y (Star) 690V 3ph: 6.29A.
Torque: 36Nm at 50Hz.
Efficiency: 89% (IE2)
Power Factor: 0.79 at 50Hz.
Terminal box position: Top.
Enclosure rating: IP55.
Dimensions: 300mm wide x 487mm long x 321mm high overall.
Mounting: Foot mount on 15mm holes on 216mm x 140/178mm centres 89mm back from the shaft shoulder.
Feet: Fixed
Mounting: Flange mount on 15mm holes spaced on 216mm PCD with 89mm diameter spigot in the 140/178mm diameter flange.
Shaft: 38mm diameter, 80mm long.
Construction: Aluminium
Weight: 48kg.
Ambient Temperature: Rated to 40°C.
Ventilation space is required at rear cooling air intake.
Over-Temperature Detection: Not Fitted
Bearings: Ball Bearing, 6208-2Z/C3 (DE), 6206-2Z/C3 (NDE)
IE2 rated motor must be used with an AC Inverter. Suitable for use with a Variable Frequency Inverter Drive having 3ph input and 3ph output.
Motor Type: M2AA132M4
Product Code: 3GAA132212-AD
Download the Dimensions and Technical Catalogue from the link below:-
From Jan 1st 2017, three phase electric induction motors with a rated output of 0.75kW to 375kW and efficiency less than IE3 must be equipped with a variable speed drive (Inverter Drive). For exceptions, see EC Commission Regulation 640/2009.
