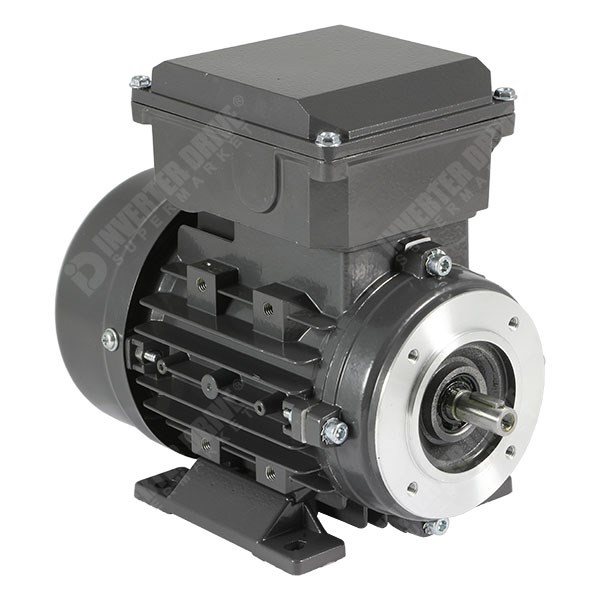

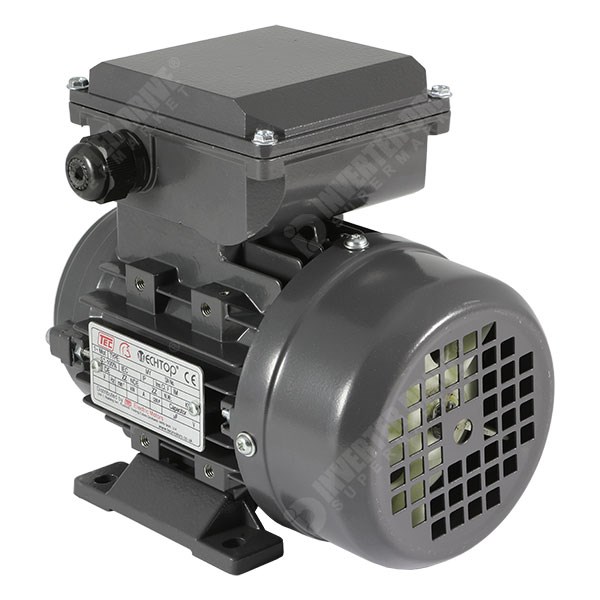

TEC MY2 IE2 Single Phase AC Motor, Cap Run 230Vac 0.18kW, 4 Pole, 63 Frame, B34 Mount

TEC MY IE2 Aluminium 0.18kW Single Phase 4 Pole B34 Foot and Face mount 63 Frame AC Motor for 230V 50Hz Single phase supply.
Suitable for fixed speed operation. Fitted with a fixed capacitor (Run Capacitor) for low torque applications. (See high torque alternative linked below)

Rating: 0.18kW at 1421rpm, 230V 50Hz.
Full Load Current: 1.222A
Starting Current: 3.467A (2.84 x full load current)
Rated Torque: 1.2094Nm
Starting Torque: 0.6157Nm (51% of Rated Torque)
Power Factor: 0.986
Efficiency: 65.4%

Run Capacitor: 10uF

124mm Wide x 217mm Long (including shaft) x 182mm High (including terminal box)
Foot mount on 7mm holes at 100mm wide x 80mm centres 40mm back from the shaft shoulder; Face mount on 4 x M5 tapped holes at 75mm PCD with 60mm diameter register in the 90mm diameter flange
Shaft: 11mm diameter, 23mm long with 4mm key

IP55
Weight: 5kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Manufacturer Part Number: 0.1841TPCB34-IE2. Frame Reference: MY2 632-4B34
