TEC - 230V Single Phase Motor 0.75kW (1.5HP) Cap Start 2P 80F Foot/Flange

0.7521TCC B35 230

Order Code: 23566

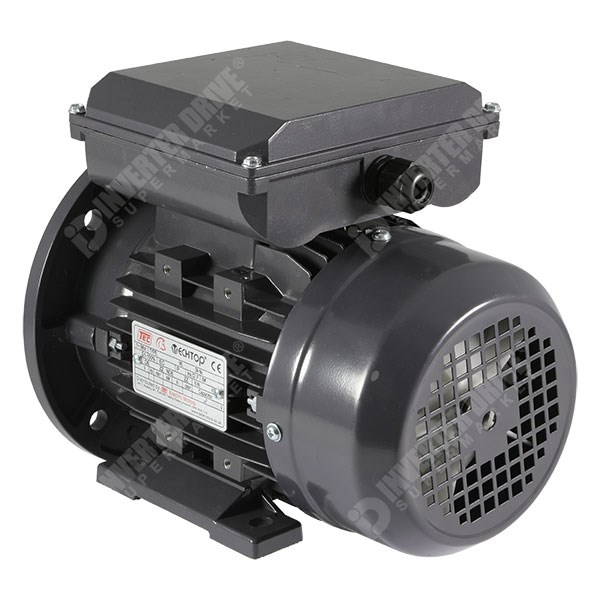

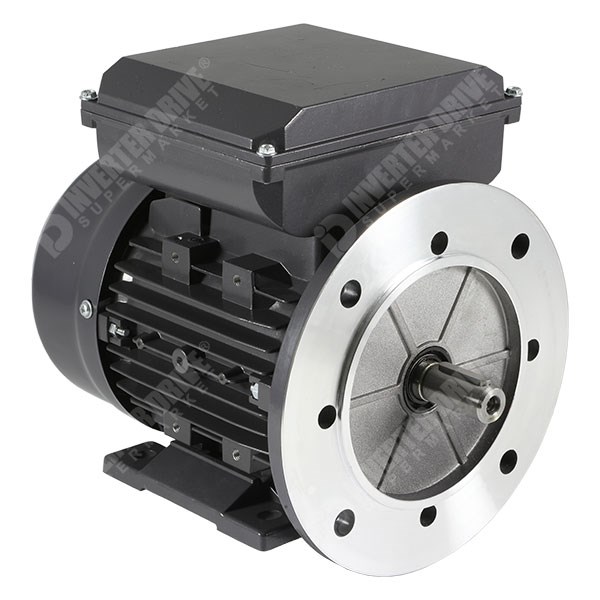

Photo of TEC - 230V Single Phase Motor 0.75kW (1.5HP) Cap Start 2P 80F Foot/Flange
Photo of TEC - 230V Single Phase Motor 0.75kW (1.5HP) Cap Start 2P 80F Foot/Flange
Photo of TEC - 230V Single Phase Motor 0.75kW (1.5HP) Cap Start 2P 80F Foot/Flange
Obsolete Product
This item is now obsolete. Alternatives may be available - see linked products below.

Brand: TEC Electric Motors, Range: Single Phase Cap Start Motors

TEC 80 Frame - 0.75kW(2HP) Single Phase Capacitor Start/Run 2 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 0.75kW x 2800RPM.

**available from stock only, IE1 motor**

High starting torque at xxx%.
Full Load Current - xxxA.
Starting Current is xxxA.

Mounting is B35 Foot and Flange mounting.
Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from shaft shoulder.
Flange mount on 4 x 12mm holes at 165mm PCD with 130mm diameter spigot in the 200mm diameter flange.
Shaft is 19mm dia x 40mm long with 6mm keyway.
Weight is 10kg

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - 0.7521TCC B35 230

Download the Dimensions and Technical Catalogue from the links below...
