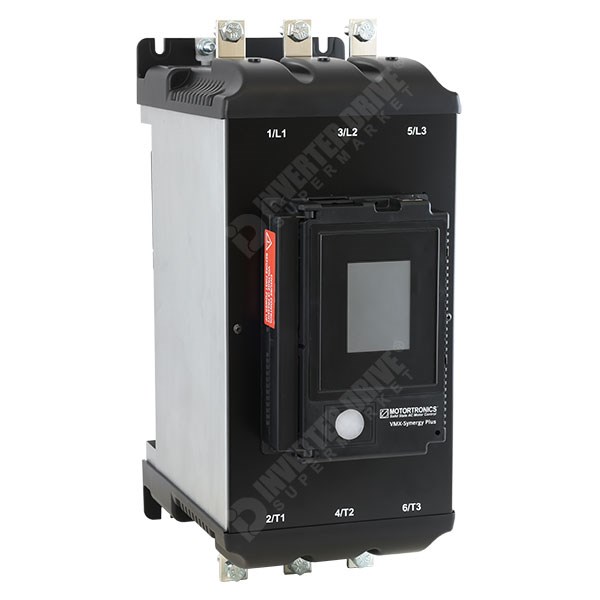

Motortronics Synergy Plus Series Soft Starter suitable for starting a standard 400V three-phase induction motors to 160kW at 302A when connected inline or to 300kW at 523A when connected inside Delta to Trip Class 10. (see below for Trip Class details)
Suitable for IEC 400V Three-phase Motors rated up to the following when connected Inline (3 Wire) - Standard Configuration
3 Starts per hour
Trip Class 10: 160kW, 302A
Trip Class 20: 132kW, 242A
Trip Class 30: 110kW, 195A
Suitable for IEC 400V three-phase Motor ratings up to the following when connected Inside Delta (6 wire) - (Energy saving not available in this configuration)
3 Starts per hour
Trip Class 10: 300kW, 523A
Trip Class 20: 220kW, 419A
Trip Class 30: 185kW, 338A
Important Note: The rating of all Soft Starters is related to the application, starts per hour and connection (3 Wire inline is the most common) it is therefore important to select a unit that matches the correct trip class as well as the motor rating and configuration. The same unit will suit different motors depending on its application and connection. (as shown above)
See Quick Start Guide for kW ratings at alternative voltages and UL ratings. See Trip Class Guide for Trip Class vs Application guidance.

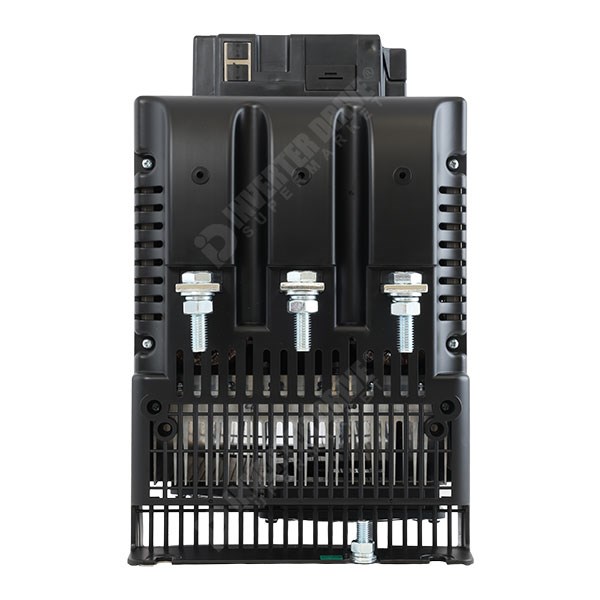

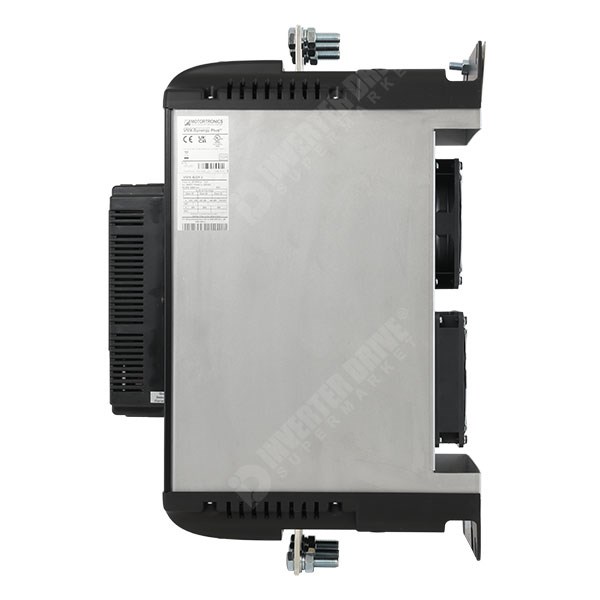

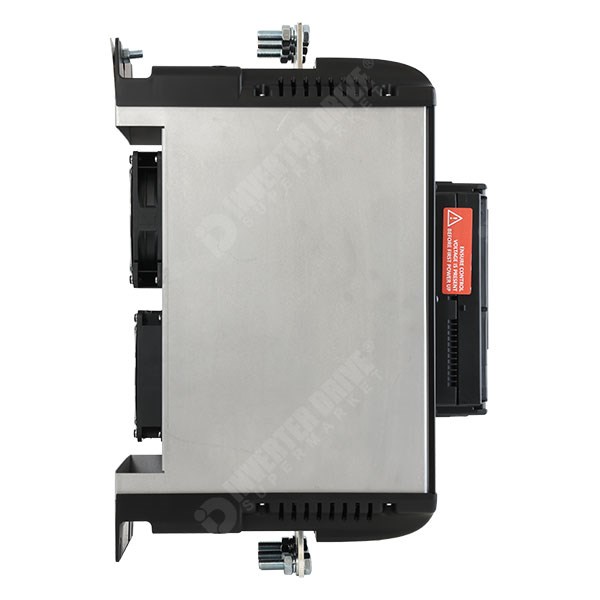

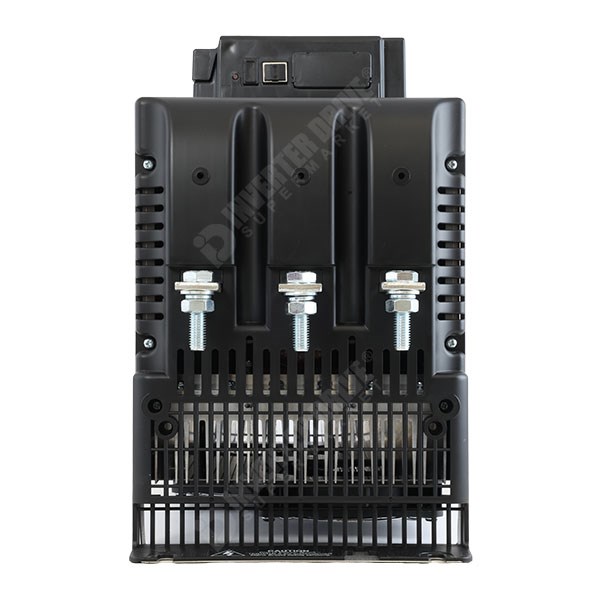

Frame Size: Size 3
205mm Wide x 330mm Deep x 490mm High
IP Rating: IP00.
Weight: 17kg.

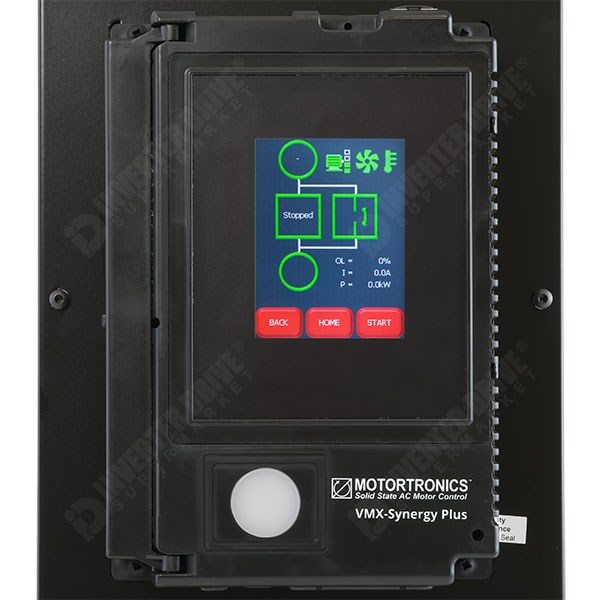

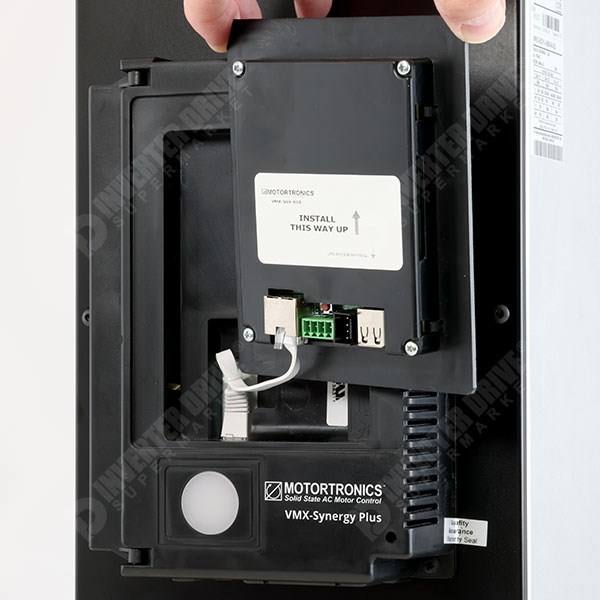

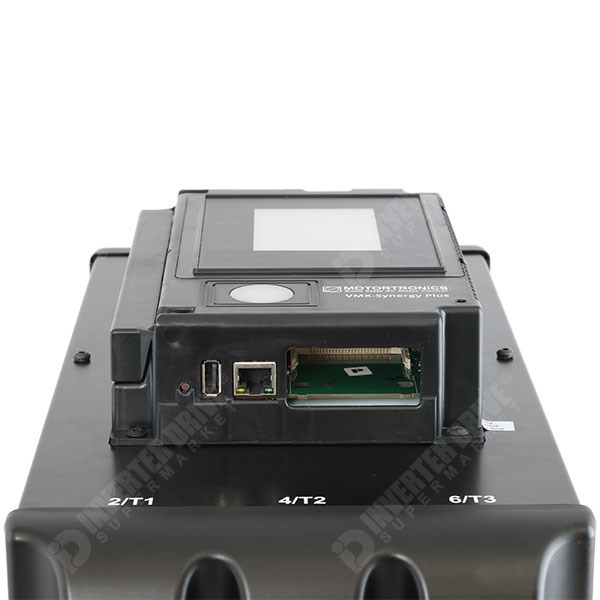

Removable Keypad: 3.5"Colour TFT Touch Screen with Programming Keys and Status Display

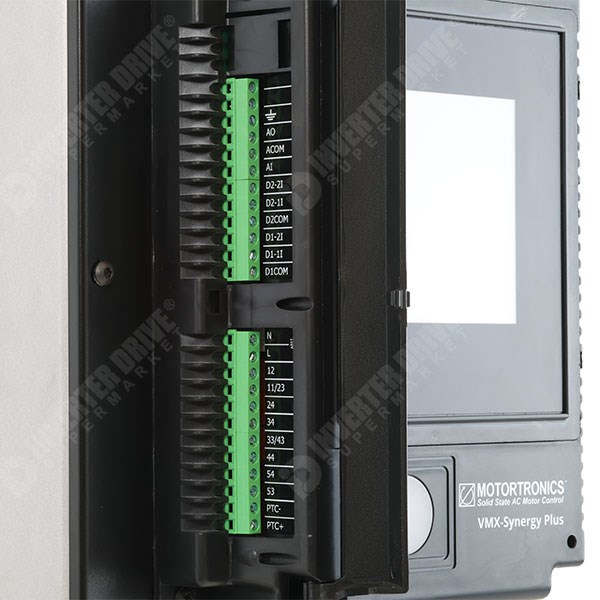

Programmable I/O: 1 Analogue Input (0-10V/4-20mA), 1 Analogue Output (0-10V/4-20mA), 4 Digital Inputs, 5 Output Relays (3 x Normally Open (1A), 1 Normally Closed (1A), 1 Normally Open (3A))
Dedicated Thermistor Input (PTC)

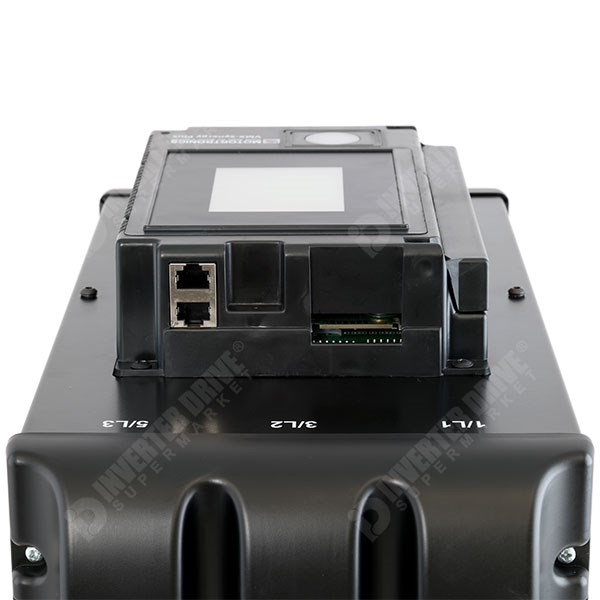

2 x RJ45 Ports for Modbus RTU
40 Pre-programmed auto-setup parameters to suit specific applications. (Default Trip Class 10)
USB terminal for data logging and parameter setting/saving.
1 x Option Slot for communications options card
Mains Voltage: 200Vac to 600Vac, at 45-65Hz
Input Fuses: (400V Supply IEC Rated): 900A, aR Semiconductor Fuses.
Aux Supply Options: DC (24Vdc) OR AC (110Vac or 230Vac)
Cubicle mount.
Ventilation space above and below: 125mm
Ventilation space at sides: 60mm
Ventilation space in front: 25mm

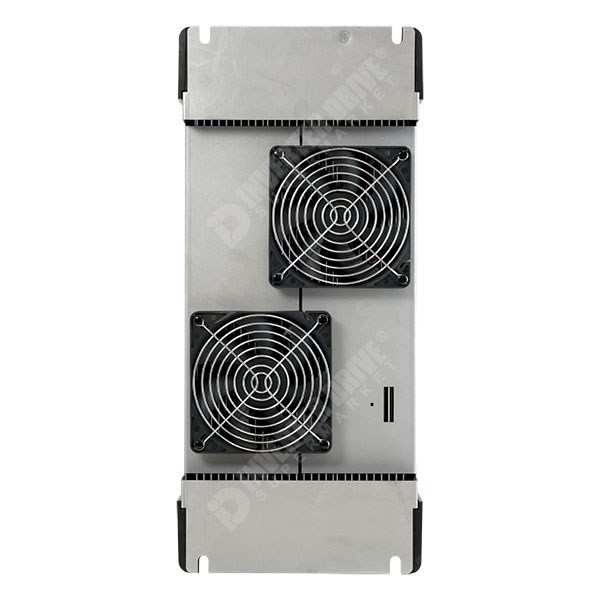

Mounting via 4 bolts at rear on 160mm x 435mm centres.
Rated at 50°C Ambient. Maximum ambient 60°C with de-rating
Heat dissipation at rated current: 453W
Manufacturer part number is VMX-SGY-I-302-6-01
Previous generation: Synergy; Part Number: VMX-SGY-302-6-01
