Condition: New with Warranty Brand: Industrial Encoders, Range: 75HA

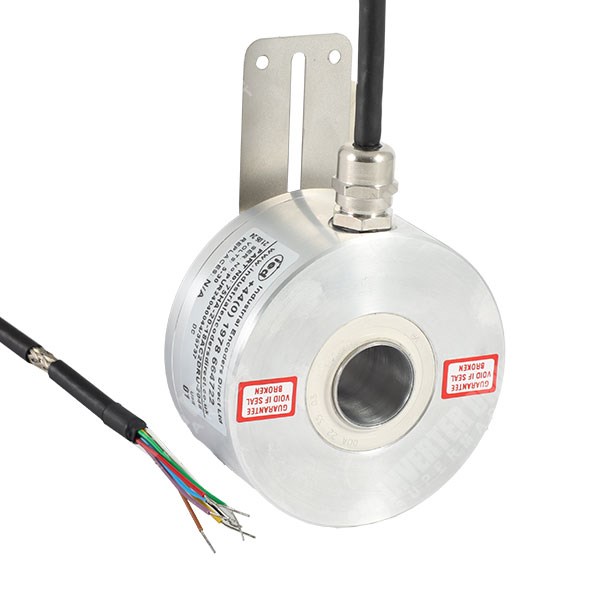

Industrial Encoders 20mm Hollow Shaft 1024ppr Incremental Optical Encoder at TTL/HTL level.
Rotation Counts: 1024ppr. Signals: HTL or TTL A+, B+, Z+, A-, B-, Z- push/pull, TTL at 5V or HTL at 11V to 30V. Supply: 5V to 30V DC. TTL RS422 compatible with line driver when 5V applied as the power supply, or HTL to 30V. Pulse Frequency: 200kHz maximum. Maximum Speed: 3000RPM. Load Current: 60mA maximum without load. Connection: Via 2m screened cable proof against oil and salt water.

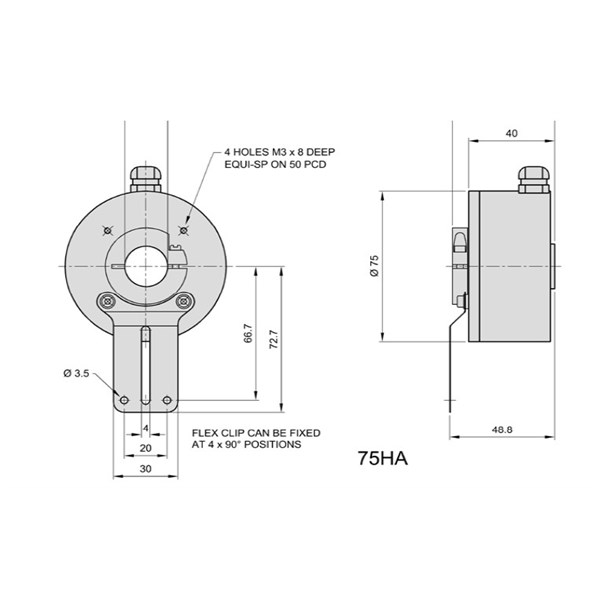

Dimensions: 75mm diameter body x 48.8mm deep overall. Shaft: 20mm diameter hollow shaft. Mounting: Via 1 x 4mm slot up to 66.7mm from shaft centre and clamp to shaft. Inertia: 100gcm2. Weight: 700g Driving Torque: 2Ncm typical. Protection Rating: IP65. Operating Temperature: -20C to +60C Customs code: 8503009999
Part number: 75HA-20-18AC2DRU-1024.
Download the drawing and data sheet from the links below...
