WEG CFW100 G2 IP20 1.1kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered

Name: WEG CFW100 G2 IP20 1.1kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered
Brand: WEG
SKU: 36064
Price: 113.54 GBP
Availability: InStock

CFW100D06P0S220G2 (14870191)

Order Code: 36064

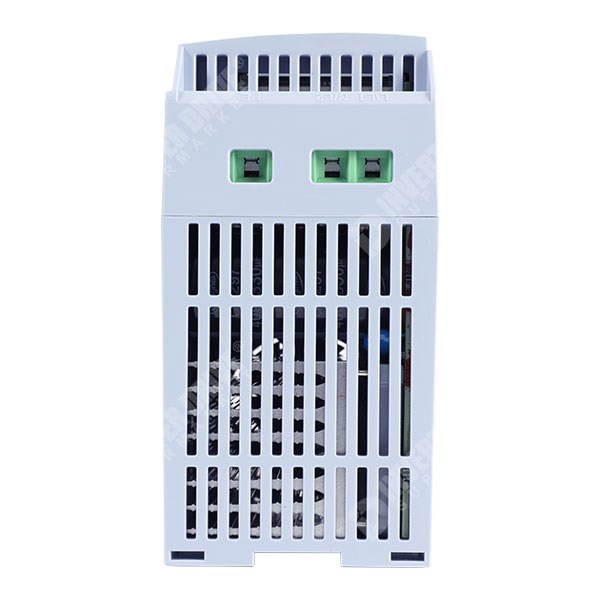

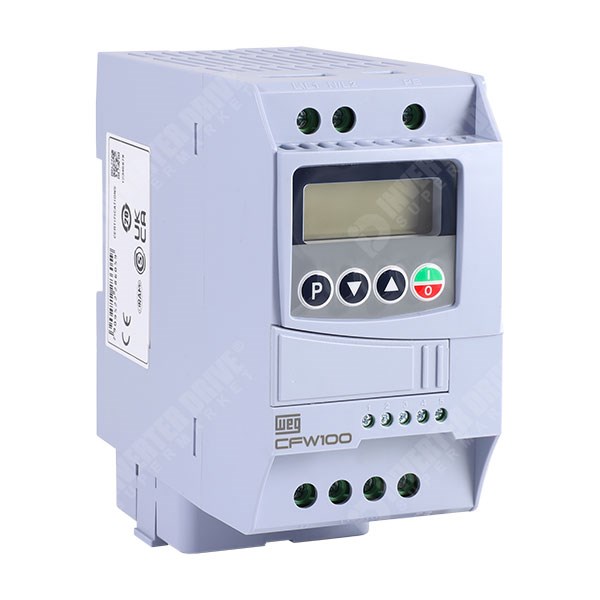

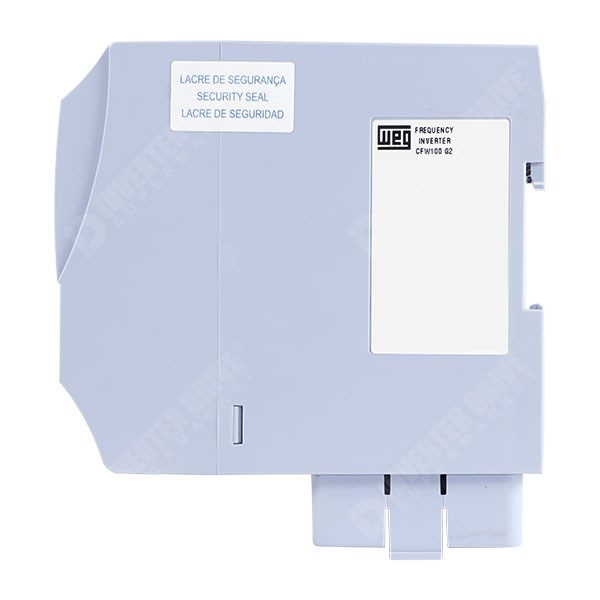

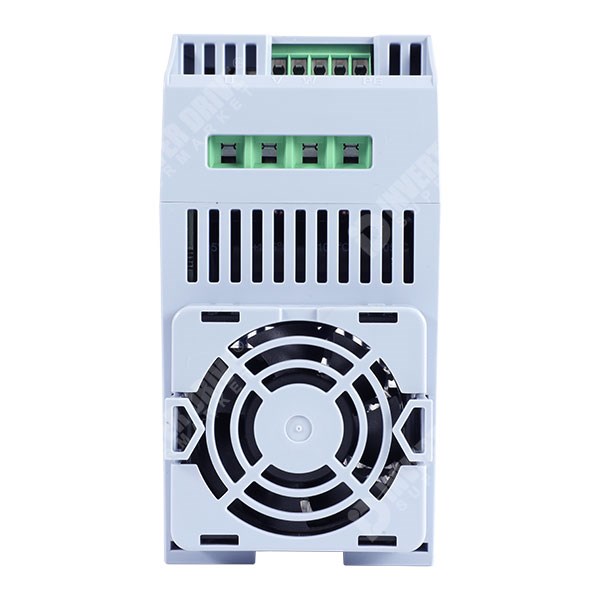

Photo of WEG CFW100 G2 IP20 1.1kW 230V 1ph to 3ph AC Inverter Drive, Unfiltered

9 in stock (10+ normally 5 weeks)

Order by 3pm for next working day delivery*

List Price: ~~£187.00~~

£94.62

(excl. VAT)

£113.54

(inc. VAT )

Price break

per unit

£94.62

Condition: New with Warranty
Brand: WEG, Range: CFW100

Details

Introduction

The WEG CFW100 1.1kW Variable Speed Drive (VSD / VFD) is a compact and reliable solution for controlling three-phase AC induction motors in light industrial applications. Designed for use with a single-phase 230V mains supply, this drive delivers a continuous output current of 6A and supports efficient motor operation at 230V.

Its space-saving DIN rail mounting design makes it ideal for integration into control panels and small machinery, including conveyors, packaging equipment, fans, and pump systems. The CFW100 series is well-suited for applications where variable frequency motor control, simple installation, and consistent performance are required.

Rating Overview
Continuous Output Current	Overload	Speed Range	Motor Type	Control Type
6A	150% for 60s every 10 mins	0 to 400 Hz	Standard AC Induction	V/F or Sensorless Vector

Hardware Overview

Internal dynamic brake not included; no DC terminal available

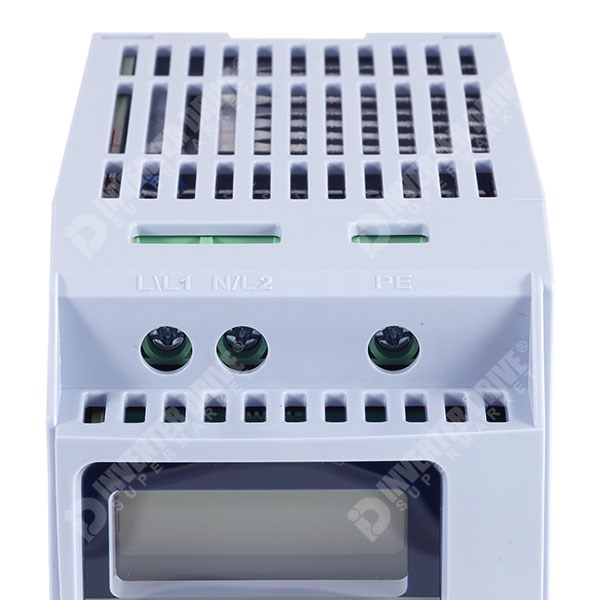

Top cable entry for power terminals. This changes to bottom cable entry when an EMC filter is fitted
External footprint EMC filter available, see linked items below

Installation Information

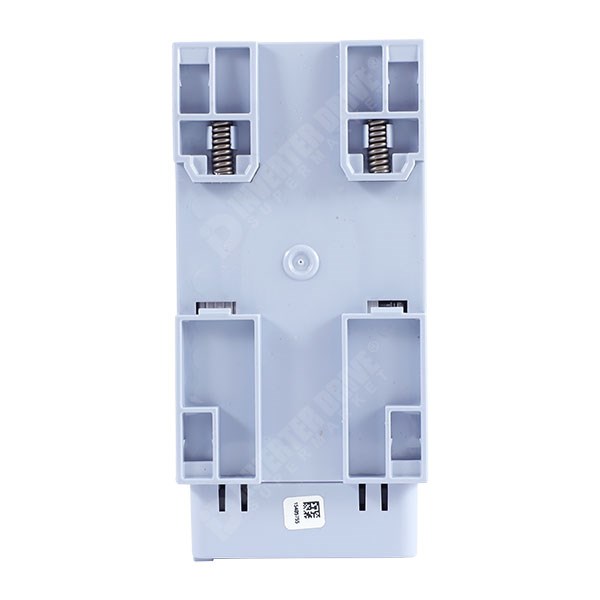

IP20. Suitable for mounting in a control panel
75W losses at full load
Rated for 50°C maximum ambient temperature
0.8 kg
Optional lugs are available for surface mounting (see linked items below)

Dimensions
Frame Size	Overall Height	Overall Width	Overall Depth	Mounting	Clearance Above/Below	Clearance Side-by-Side
D	133.5 mm	65.1 mm	129 mm	DIN	50 mm	0 mm

Keypad

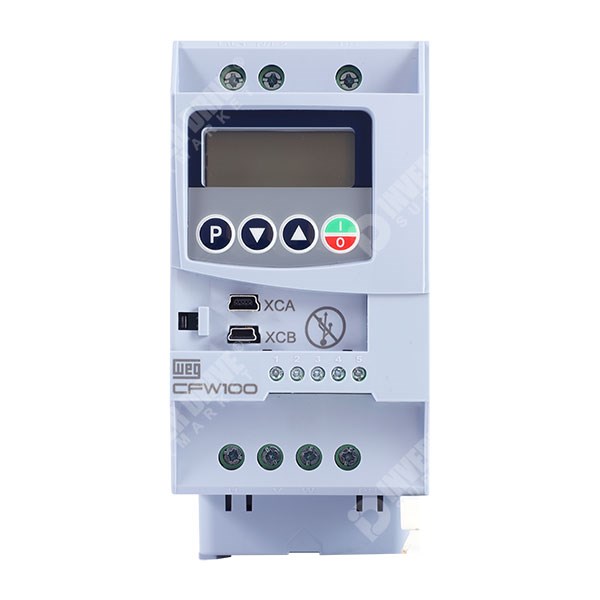

Fixed keypad suitable for local operation and parameter programming
Alternative remote keypad available for panel mounting. Option slot required (see linked item below)

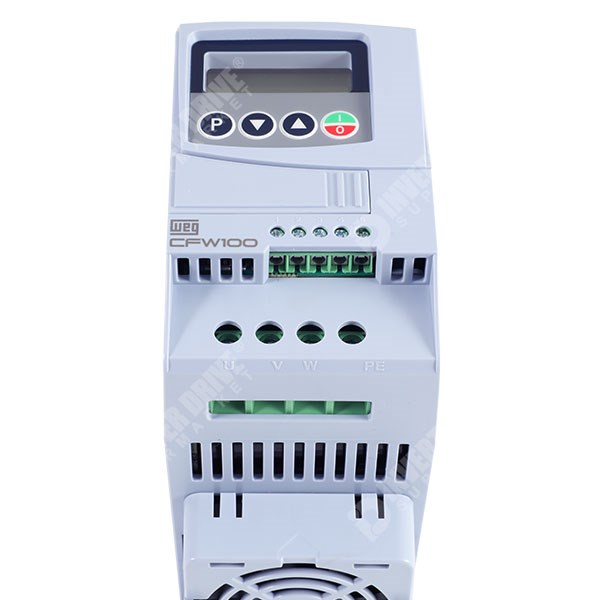

Control Terminals

One option slot available for an expansion module or communications module (see linked items below)
Option slot fits to the front of the CFW100 and adds depth to the unit
PC programmable using WPS (WEG Programming Suite). USB option card required to enable PC connection

Inputs and Outputs
Analogue Input	Digital Input	Analogue Output	Digital Output	Relay	Fieldbus
0 (option available)	4	0 (option available)	0 (options available)	0	0 (options available)

Power Supply

The CFW100 series is only suitable for a single-phase supply.

Input Power
Input Current (at full load)	Input Voltage	Voltage Tolerance	Nominal Frequency	Frequency Range	Maximum Power Ups
13.2 A	200-240V single-phase	+10%, -15%	50Hz / 60Hz	48Hz to 62Hz	10 / hour, 1 per 6 minutes

Part Numbers

Part Numbers
Manufacturers Part Number	CFW100D06P0S220G2
WEG Product Code	14870191
Previous Generation	N-A

CFW100 Generation 2 (G2) replaces the original CFW100. The G2 version is available up to 1.5kW, has a different coloured keypad, and can be fitted with more option modules. G2 is considered a direct replacement for the original CFW100.

All Products in the CFW100 G2 230Vac Series (this product shown in bold)

230Vac Series Overview
kW Rating	0.18kW	0.37kW	0.75kW	1.1kW	1.5kW
Output Current	1.6A	2.6A	4.2A	6A	7.3A
Frame Size	A	B	C	D	D
WEG Product Code (with link)	14248096	14248097	14248218	14870191	14570192
